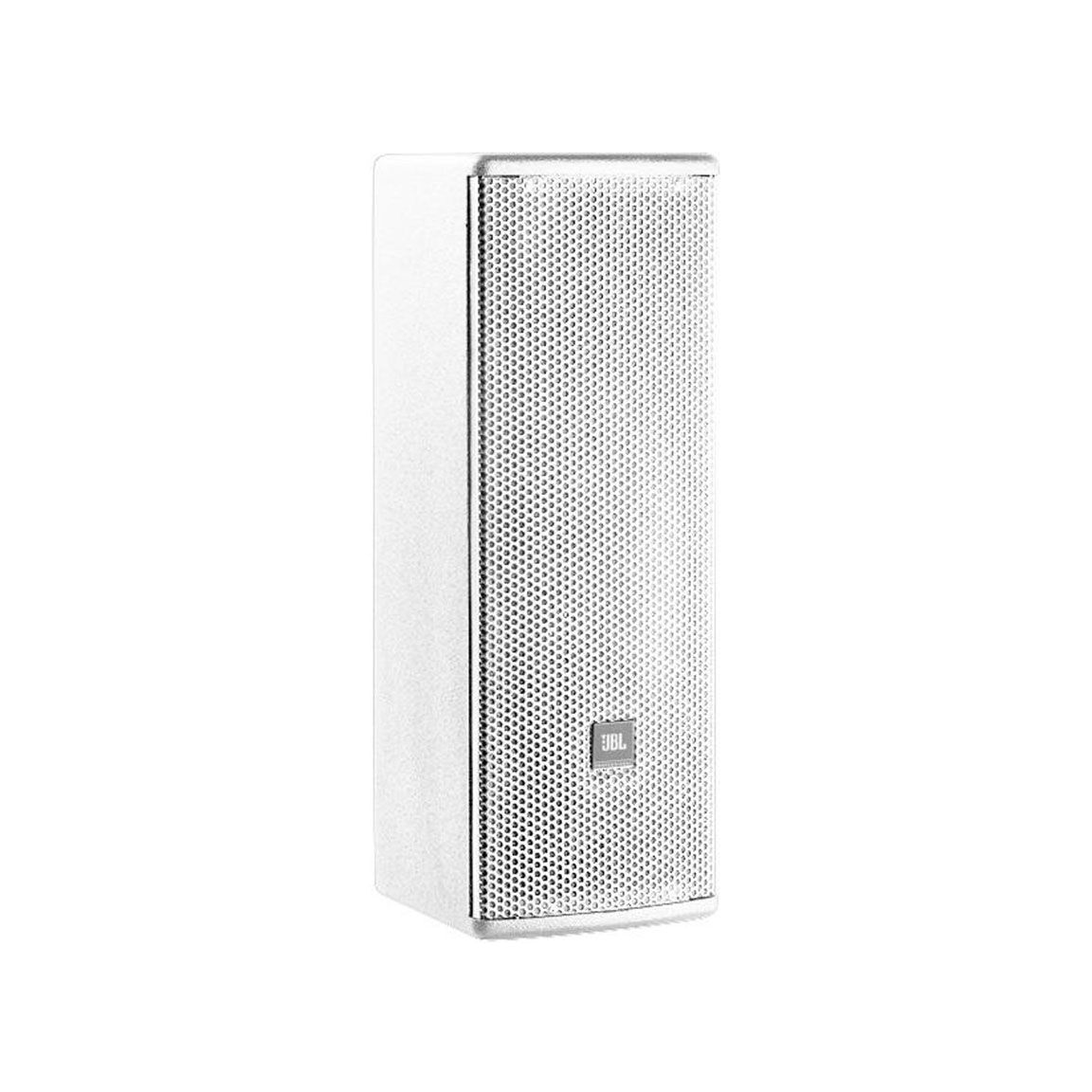

JBL AC28/26 Compact 2-Way Loudspeaker with 2 x 8 LF White
Share
- 1” Exit Compression Driver with PT™ Waveguide
- 205 mm (8 in) LF transducer
- Compact enclosure
- 750W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
In stock
- SKU
- AC28-26-WH
. Description
JBL AC28/26 Compact 2-Way Loudspeaker with 2 x 8 LF White
The AC28/26 is a compact, versatile 2-way system engineered for fixed installations and portable applications where space is at a premium. Its rigid hardwood plywood enclosure and efficient driver configuration deliver professional-grade output from a footprint that fits tight venues, retail environments, and monitoring applications. The rotatable waveguide and dual 8-inch woofers strike a practical balance between bass extension and midrange clarity.
Acoustic Performance
This system covers a 65 Hz to 20 kHz frequency response (±3 dB) with 53 Hz lower extension at –10 dB, providing solid low-end presence without bloat. The 120° × 60° coverage pattern with field-rotatable waveguide allows flexible horizontal or vertical deployment, while the directivity index of 6.9 dB (500 Hz–16 kHz average) ensures controlled dispersion and predictable gain-before-feedback in live or installed settings.
Build & Power Handling
The cabinet employs 12 mm and 15 mm exterior-grade multi-ply hardwood plywood for rigidity and long-term durability. Rated at 375W continuous, 750W program, and 1500W peak into an 8-ohm impedance, the system accepts input via dual Neutrik NL4 connectors plus screw terminals, making integration straightforward in both analog and digital rigs. Six M8 suspension points (top, bottom, and rear) support ceiling, wall, or stand mounting with standard rigging hardware.
Key Features
- 2 × 8-inch (205 mm) low-frequency transducers for extended bass response
- 1-inch high-frequency driver with field-rotatable 120° × 60° PT Waveguide
- Frequency response 65 Hz–20 kHz (±3 dB); 53 Hz–20 kHz at –10 dB
- 375W continuous, 750W program, 1500W peak power rating
- 8-ohm impedance
- Compact dimensions: 679.5 × 237.5 × 254.0 mm (H × W × D)
- 12 mm and 15 mm exterior-grade multi-ply hardwood plywood enclosure
- White finish with DuraFlex™ coating
- Dual Neutlik NL4 connectors plus screw terminals
- Directivity factor (Q) 8.1; directivity index 6.9 dB (500 Hz–16 kHz average)
- Six M8 suspension points for rigging and mounting flexibility
- Passive, unpowered design—accepts any amplifier or digital processor output
The AC28/26 delivers efficient, articulate output in a rugged format built to withstand years of installation or portable use.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC28/26 is a compact 2-way loudspeaker built for live venues, fixed installations, and tight spaces where you need pro-grade output without a floor footprint. Its dual 8-inch woofers and controlled 120° × 60° coverage deliver solid low-end presence and midrange clarity with predictable gain-before-feedback, making it reliable for gigging, monitoring, and road-tested installations. Choose it for rugged build quality, flexible rigging, and the ability to shape your coverage exactly where you need it.
Who This Is For
| Best suited for | Live Performance, Studio Sessions, Gigging, Fixed Installations |
|---|---|
| Tonal character | Controlled dispersion, solid low-end presence, midrange clarity, articulate output, efficient driver configuration |
| Less specialized for | Home Recording, Practice (it will do it; instruments voiced for that style do it more easily) |
| Skill level | Intermediate / Advanced / Professional |
Frequently Asked Questions
What does passive mean, and what amplification do I need?
The AC28/26 is unpowered—it accepts any amplifier or digital processor output via dual Neutrik NL4 connectors or screw terminals. You'll pair it with a separate amp rated for its 8-ohm impedance and 375W continuous (750W program) power handling.
Can I mount this on a pole or ceiling?
Yes. Six M8 suspension points on the top, bottom, and rear support standard rigging hardware for ceiling, wall, or stand mounting. The enclosure weighs approximately 17 kg and uses exterior-grade multi-ply hardwood for durability in fixed or portable rigs.
What's the coverage pattern, and can I rotate it?
The AC28/26 has a 120° × 60° coverage pattern with a field-rotatable PT Waveguide, letting you deploy it horizontally or vertically to match your venue or room layout and avoid unwanted feedback.
How deep does the low end go?
The system covers 65 Hz–20 kHz (±3 dB) with a 53 Hz lower extension at –10 dB, providing solid bass presence without bloat. The dual 8-inch woofers strike a balance between extended low-end and clarity in the midrange.
Is this suitable for outdoor use or rough conditions?
The cabinet uses 12 mm and 15 mm exterior-grade multi-ply hardwood with a DuraFlex coating, designed to withstand years of installation or portable use in demanding environments.
Do I pay sales tax on this order?
Sales tax is collected only on orders shipped to California; orders shipped to any other US state are not charged sales tax at checkout when you buy direct from our website. At a typical 7% rate that is an estimated $139 less at checkout than the same listed price on a marketplace, which collects sales tax as the facilitator in most states. Buyers remain responsible for any use tax their state applies. Free US shipping and 30-day returns are included.
