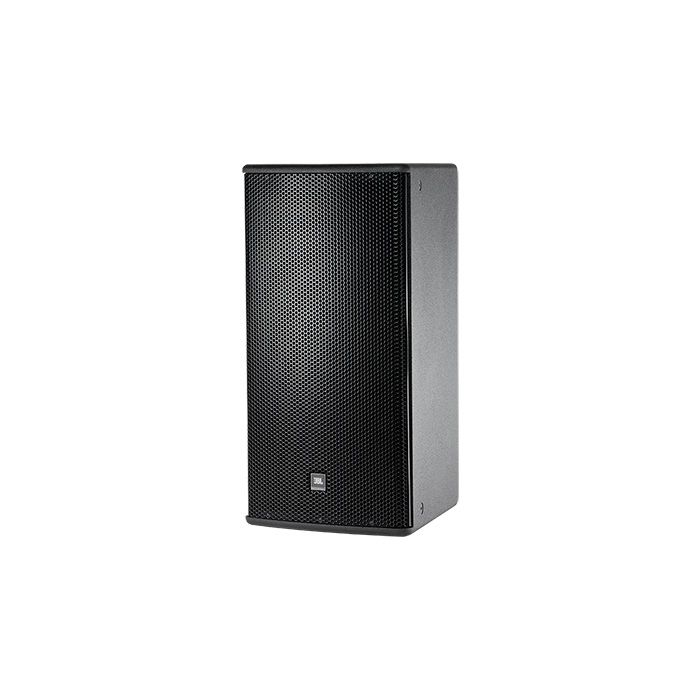

JBL AM5212/64 2-Way Loudspeaker System with 1 x 12 LF
Share
In stock
- SKU
- AM5212-64
. Description
JBL AM5212/64 2-Way Loudspeaker System with 1 x 12 LF
The AM5212/64 is a professional 2-way loudspeaker engineered for powerful, articulate sound that responds with impressive immediacy and clarity. The 12-inch woofer delivers punchy low-end presence with tight control, while the precisely tuned horn-loaded tweeter cuts through with crystalline highs, making this system feel responsive and alive for running live vocals, mixing in the studio, or pushing full-range music through a demanding venue. The balanced frequency response invites you to dial in your exact sonic vision without fighting the speaker, and the robust construction means you can drive this system hard without compromising definition or introducing listener fatigue.
Audio Performance & Coverage
This system achieves a frequency response of ±3 dB from 43 Hz to 18 kHz, delivering extended low-end reach and transparent highs across the full audible spectrum. The 60° × 40° rotatable waveguide provides controlled directivity and consistent coverage, while the 96 dB SPL sensitivity in passive mode means the speaker responds efficiently to moderate input levels, and its peak output reaches 131 dB SPL continuous average in bi-amp mode, making it suitable for live sound reinforcement and critical monitoring applications alike.
Design & Build Quality
Construction centers on a multiply birch cabinet heavily braced and finished in JBL's DuraFlex™ coating for durability and protection in touring and fixed-installation environments. The 262H-1 300 mm woofer features JBL Differential Drive® dual voice coil and dual magnetic gap technology for enhanced control and distortion reduction, while the 2408H-1 compression driver ensures articulate midrange and treble reproduction. At 45 lbs, the cabinet strikes a practical balance between portability and acoustic mass.
Key Features
- 2-way, full-range loudspeaker system with rotatable waveguide for vertical or horizontal orientation
- 262H-1 300 mm (12 in) low frequency driver with JBL Differential Drive® dual voice coil and dual magnetic gap
- 2408H-1 high frequency 38 mm compression driver with 38 mm voice coil exit
- Frequency response ±3 dB: 43 Hz – 18 kHz; extended range to 37 Hz (–10 dB)
- 60° × 40° coverage pattern with rotatable waveguide for flexible deployment
- System sensitivity: 96 dB SPL (1W @ 1m) in passive mode
- Long-term power rating (IEC): 300 W (1200 W peak) passive mode
- Maximum SPL: 121 dB continuous average (127 dB peak) in passive mode; 122 dB LF / 131 dB HF in bi-amp mode
- Switchable bi-amp and passive crossover modes at 1.6 kHz
- NL4 Neutrik speakON® and barrier strip connectivity
- Multiply birch cabinet with JBL DuraFlex™ finish and heavy internal bracing
- Dimensions: 28.06" H × 14.6" W × 18.1" D; net weight 45 lbs
The AM5212/64 rewards your attention with transparent, engaging sound that makes every detail matter—a dependable choice for sound engineers seeking honest monitoring, live sound professionals needing reliable output, or audio professionals who demand integrity in their speakers.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AM5212/64 is a professional 2-way PA speaker built for live sound reinforcement and critical monitoring, pairing a 12-inch woofer with a horn-loaded tweeter to deliver tight, punchy bass and crystalline highs across demanding venues and stage environments. Sound engineers and touring professionals choose it for its honest frequency response (43 Hz–18 kHz), efficient 96 dB sensitivity, and peak output of 131 dB SPL in bi-amp mode—enough power to reinforce vocals and full-range music without coloration. The heavily braced birch cabinet and JBL Differential Drive technology ensure reliable performance night after night, whether you're mixing in a fixed installation or running a mobile rig.
Who This Is For
| Best suited for | Live Sound Reinforcement, Studio Monitoring, Venue PA, Critical Listening |
|---|---|
| Tonal character | Tight low end, punchy bass, articulate midrange, crystalline highs, transparent |
| Less specialized for | Home Casual Listening, Bedroom Practice (it will do it; instruments voiced for that style do it more easily) |
| Skill level | Intermediate / Advanced / Professional |
Frequently Asked Questions
What's the difference between passive and bi-amp modes?
The AM5212/64 features a switchable crossover at 1.6 kHz. In passive mode, it runs from a single amplifier input and delivers 121 dB continuous average SPL. In bi-amp mode, you run separate amplifier channels to the low and high frequency drivers, achieving higher output (122 dB LF / 131 dB HF) and better power management for demanding live sound applications.
Is this speaker suitable for touring and outdoor use?
Yes. The cabinet is constructed from multiply birch with heavy internal bracing and finished in JBL DuraFlex coating, which provides durability for touring and fixed-installation environments. The rotatable waveguide allows flexible vertical or horizontal deployment to match venue geometry.
What kind of amplifier power do I need?
The speaker handles a long-term power rating of 300 W in passive mode (1200 W peak). For live reinforcement, pair it with an amplifier rated between 300–600 W per channel in mono or stereo, or use separate amplifiers in bi-amp mode for greater headroom and control.
How does the frequency response compare to other 12-inch PA speakers?
The AM5212/64 delivers ±3 dB response from 43 Hz to 18 kHz, with extended reach down to 37 Hz at –10 dB. This transparency across the full spectrum rivals competitors like the Yamaha DXR12 and Electro-Voice ELX200-12, making it equally suitable for live vocals, music reinforcement, or studio monitoring.
What connectivity options are included?
The speaker features both NL4 Neutrik speakON and barrier strip connections, allowing flexible integration into existing systems and amp racks. Switchable bi-amp and passive crossover modes are selectable on the input panel.
