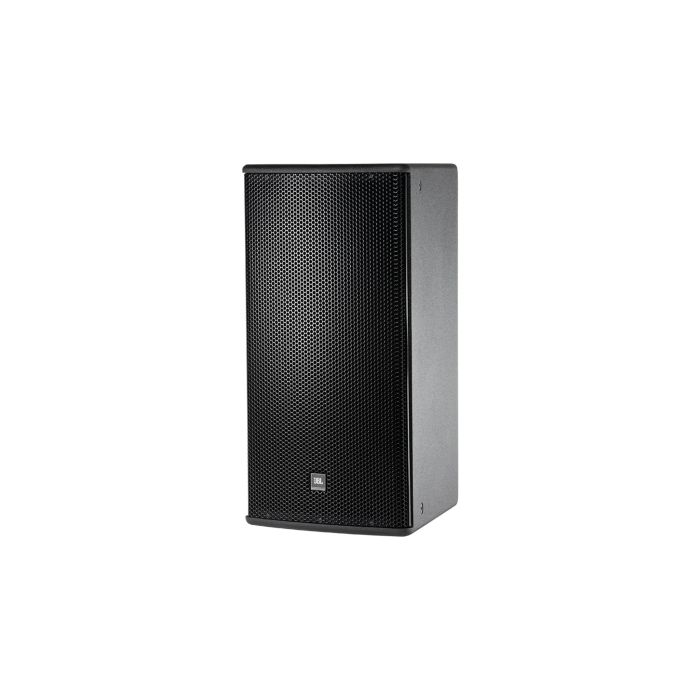

JBL AM5212/66 Two-way full range loudspeaker

JBL AM5212/66 Two-way Full Range Loudspeaker

The AM5212/66 is a compact yet powerful full-range loudspeaker built for professional installed sound applications and live touring. Its rotatable waveguide design and balanced construction mount vertically or horizontally, adapting to stage and venue constraints without sacrificing coverage or clarity. Built on JBL's proven platform, this cabinet delivers articulate midrange and extended low-end response suited for houses of worship, small venues, corporate installations, and touring applications.

Acoustic Performance & Coverage

The dual-component design pairs a 262H-1 300 mm (12 in) low frequency driver with dual voice coil and dual magnetic gap with a 2408H-1 compression driver featuring a 38 mm (1.5 in) exit and voice-coil, producing 1600W peak / 300W RMS output at 8 Ohms nominal impedance. The 60° x 60° coverage pattern ensures consistent sound distribution across typical performance spaces without dead zones or excessive overlap.

Durability & Reliability

The cabinet employs a multiply birch enclosure with JBL's rugged DuraFlex™ finish for durability in demanding touring and installed environments, while the 14-gauge steel grille internally lined with acoustically transparent foam protects drivers without compromising tonal transparency. Environmental rating to Mil-Std 810 and IP-x3 per IEC529 confirms this speaker's tolerance for temperature swings, vibration, and moisture exposure typical of touring rigs and permanent installations.

Key Features

• 262H-1 300 mm (12 in) low frequency driver with dual voice coil and dual magnetic gap
• 2408H-1 compression driver with 38 mm (1.5 in) exit and voice-coil
• 1600W Peak / 300W RMS power handling
• 8 Ohms nominal impedance
• 60° x 60° rotatable waveguide coverage
• Multiply birch enclosure with DuraFlex™ finish
• 14-gauge steel grille with internally lined acoustically transparent foam
• Dimensions: 28.06" H x 14.6" W x 18.1" D (713 x 371 x 458 mm)
• Net Weight: 45 lbs (20.2 kg)
• NL4 Neutrik speakON® and barrier strip terminals
• Bi-amped or passive operation modes
• Environmental rating: Mil-Std 810; IP-x3 per IEC529

The AM5212/66 combines road-proven durability, flexible mounting options, and JBL component quality into a mid-sized enclosure that scales reliably across touring, installed, and mixed-use sound scenarios.
