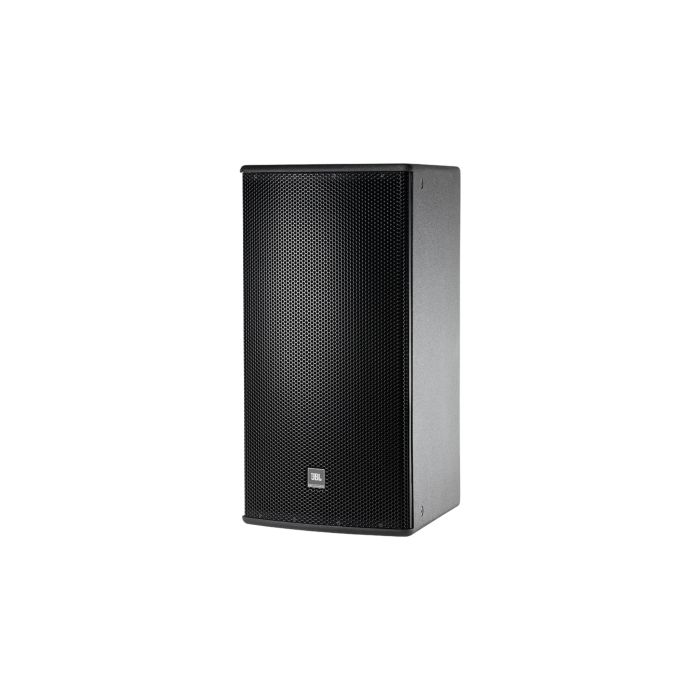

JBL AM5215/64 Two-way full range loudspeaker
Description
JBL AM5215/64 Two-way Full Range Loudspeaker
The AM5215/64 is a compact yet capable full-range system that balances power and portability for mid-sized venues, installations, and mobile applications. Its lightweight 55 lb construction and rotatable waveguide make it approachable for single-operator deployment without sacrificing acoustic performance or build quality. This is a genuine workhorse designed for consistent, reliable operation across live sound, corporate events, and installed sound environments.
Acoustic Design & Coverage
The dual-driver configuration pairs a 380 mm (15 in) differential drive low-frequency transducer with a 38 mm (1.5 in) compression driver for coherent full-range coverage across a 60° x 40° pattern. The high-slope passive crossover network minimizes band overlap and ensures smooth integration between drivers, while the rotatable waveguide allows vertical or horizontal orientation to match room geometry and throw requirements.
Construction & Connectivity
Heavy bracing and multiply birch enclosure with DuraFlex finish provide durability against transport and venue wear, while the 14-gauge steel grille with acoustically transparent foam lining protects drivers without coloring the sound. Connections include both NL4 Neutrik speakON and barrier strip terminals accepting up to 10 AWG wire, with 15 M10 threaded attachment points for flying or permanent rigging; the system supports bi-amped or passive operation via selectable switch.
Key Features
- 2-way, full-range loudspeaker system with medium power capacity
- JBL 265H-1 differential drive low-frequency driver, 380 mm (15 in) with dual voice coil and dual magnetic gap
- JBL 2408H-1 compression driver, 38 mm (1.5 in) exit and voice coil
- 60° x 40° coverage pattern
- Rotatable waveguide for vertical or horizontal orientation
- Multiply birch enclosure with DuraFlex finish, heavily braced
- 15 M10 threaded attachment points for flying and rigging
- 14-gauge steel grille with acoustically transparent foam lining
- NL4 Neutrik speakON and barrier strip terminal connectivity (10 AWG capable)
- High-slope passive network for minimal band overlap
- Selectable bi-amped or passive operation
- Net weight: 55 lbs (25 kg); Dimensions: 30.8" H × 16.6" W × 19.85" D
The AM5215/64 delivers professional audio reproduction in a format light enough to move easily yet rugged enough to endure repeated deployment across touring and permanent installation contexts.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM5215/64 is a compact, 55 lb two-way full-range loudspeaker built for live sound, corporate events, touring, and installed applications where reliability and coverage matter more than massive output. The dual-driver design—15-inch low-frequency transducer paired with a 1.5-inch compression driver—delivers smooth, coherent sound across a 60° x 40° pattern, with a rotatable waveguide that adapts to any room geometry or throw distance. Choose it when you need a workhorse that one person can move and deploy without sacrificing professional acoustic performance or JBL's reputation for durability.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Corporate Events
- ✓ Touring
- ✓ Installed Sound
Not the best pick for
- – Home Recording
- – Practice
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What does the rotatable waveguide do, and when would I use it?
The rotatable waveguide lets you orient the speaker vertically or horizontally to match your room's geometry and achieve even coverage without dead zones. Use vertical orientation for typical venue stacks or horizontal for wide, shallow coverage in corporate installs or long-throw applications.
Can I run this speaker passively, or do I need separate amplification?
The AM5215/64 supports both bi-amped operation (separate amps for low and high drivers) and passive operation (single amp feeding a built-in crossover). A selectable switch lets you choose the mode that fits your system architecture.
How does the 55 lb weight affect portability and rigging options?
At 55 pounds, this speaker is light enough for one person to carry or deploy in mobile applications, yet it includes 15 M10 threaded attachment points for flying rigs or permanent bracket mounting. The dual-purpose design makes it ideal for touring or permanent installs without compromise.
What connectivity options does it have, and what amplifier power does it need?
The speaker features both NL4 Neutrik speakON connectors and barrier strip terminals (rated for up to 10 AWG wire), so you can integrate it into any live or installed system. The description lists 'medium power capacity,' meaning it works with mid-sized touring or venue amplifiers; consult your system integrator or JBL for specific wattage recommendations based on your throw distance and SPL requirements.
How does the construction hold up to touring and repeated deployment?
The multiply birch enclosure with DuraFlex finish and heavy internal bracing resists transport wear, while the 14-gauge steel grille with acoustically transparent foam protects the drivers without degrading sound. This design is proven across JBL's touring and installed-sound lines for long-term reliability.
