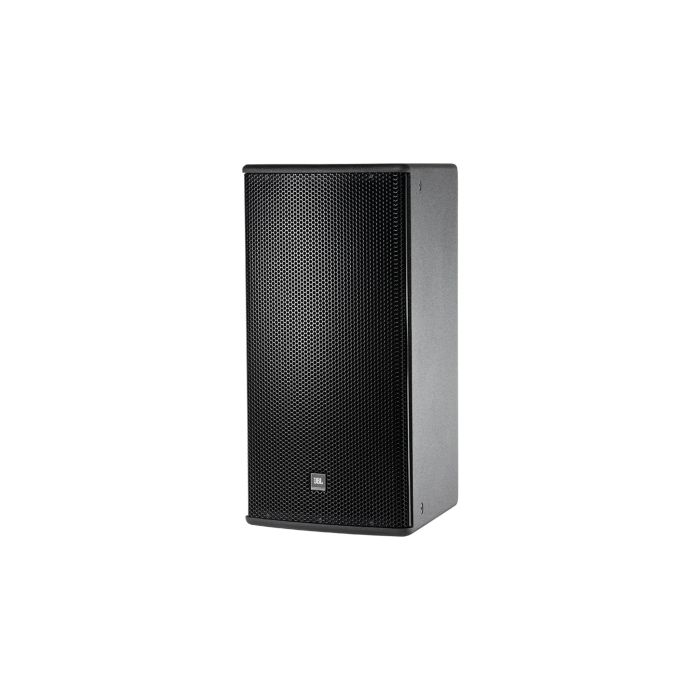

JBL AM7212/64 Two-way Full Range Loudspeaker

The AM7212/64 is a compact yet powerful two-way system built for consistent, predictable coverage in mid-sized venues and installations. Its rotatable 60° × 40° waveguide and trapezoidal cabinet design deliver controlled directivity with minimal boundary interaction, making it equally at home in live sound reinforcement, installed systems, or portable touring rigs.

Audio Performance & Coverage

This system operates across a 36 Hz–20 kHz frequency range (−10 dB) with a usable response of 42 Hz–18 kHz (±3 dB), covering the full spectrum needed for speech and music reproduction. The 60° × 40° rotatable waveguide with a directivity index of 12.3 dB ensures tight, predictable pattern control that scales well across multiple-speaker deployments and reduces off-axis coloration.

Power, SPL & Transducer Design

Maximum continuous SPL reaches 123 dB (129 dB peak) in passive mode with a system sensitivity of 95 dB SPL at 1W/1m, delivering serious output without external amplification. The low-frequency section uses a 2262H 300 mm (12 in) driver with JBL Differential Drive dual voice coil and dual magnetic gap, paired with a 2432H compression driver (38 mm exit, 75 mm voice coil) and a 1.8 kHz passive crossover for clean, articulate midrange integration.

Key Features

• Frequency Range (−10 dB): 36 Hz–20 kHz
• Frequency Response (±3 dB): 42 Hz–18 kHz
• Coverage Pattern: 60° × 40°, rotatable waveguide
• Directivity Factor (Q): 16.7; Directivity Index (DI): 12.3 dB
• Maximum SPL (Passive): 123 dB continuous / 129 dB peak
• System Sensitivity (1W @ 1m): 95 dB SPL
• LF Power Rating (AES): 1000 W (4000 W peak, 2 hrs); 700 W (2800 W peak, 100 hrs)
• HF Power Rating (AES): 100 W (400 W peak, 2 hrs)
• Long-Term System Rating (IEC, Passive): 600 W (2400 W peak, 100 hrs)
• Enclosure: 16 mm exterior-grade 11-ply Finnish birch plywood with 15-degree trapezoidal geometry
• Suspension: 15-point attachment (4 top, 4 bottom, 2 each side, 3 rear) with M10 threaded hardware
• Operational Modes: Bi-amp/Passive switchable crossover; IP-x3 rated; Mil-Std 810 environmental compliance

The AM7212/64 combines rigid engineering, efficient transducers, and flexible mounting into a system that performs reliably whether flown, stacked, or pole-mounted.
