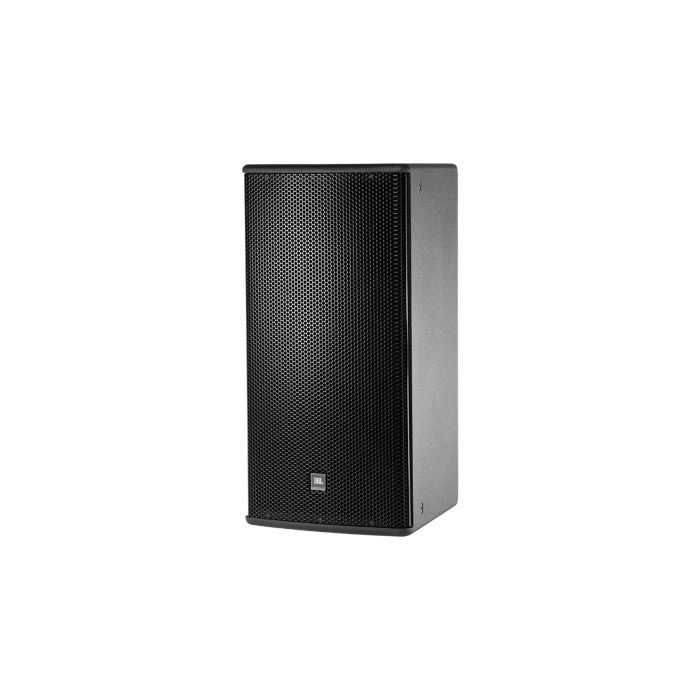

JBL AM7212/66 Two-way full range loudspeaker
Description
JBL AM7212/66 Two-Way Full Range Loudspeaker
The AM7212/66 is a professional two-way speaker engineered for consistent performance across mid-sized venues, installations, and touring applications. Its compact footprint and rotatable waveguide design make it practical to position in various room configurations, while the heavily braced birch enclosure delivers the structural rigidity needed for reliable operation at demanding SPL levels.
Acoustic Performance
With a frequency response of 42 Hz–20 kHz (±3 dB) and system sensitivity of 95 dB SPL @ 1 watt/1 meter, this speaker maintains clear output across the full spectrum without excessive amplifier demand. The 1.6 kHz passive crossover cleanly divides duties between the 300 mm dual voice coil woofer and 38 mm compression driver, ensuring smooth integration and reliable maximum SPL ratings of 126 dB continuous (LF) and 134 dB continuous (HF).
Road-Ready Construction
The 60 × 60° PT (Progressive Transition) waveguide rotates for vertical or horizontal coverage, adapting to different mounting scenarios and acoustic needs in live venues and fixed installations alike. Multi-ply birch construction with DuraFlex finish withstands the demands of touring and permanent deployments, while the dual NL4 speakON connectors and 8 Ohm nominal impedance integrate seamlessly into standard professional audio systems for quick rigging and reliable operation.
Key Features
- JBL Differential Drive 2262H 12-inch woofer with dual voice coil and dual magnetic gap
- 2432H compression driver with 1.5-inch exit and 75 mm voice coil
- Frequency response: 42 Hz–20 kHz (±3 dB)
- Extended range: 36 Hz–20 kHz (-10 dB)
- System sensitivity: 95 dB SPL @ 1 watt/1 meter
- Maximum SPL: 126 dB continuous/132 dB peak (LF), 134 dB continuous/140 dB peak (HF) in bi-amp mode
- Passive mode power handling: 600W continuous (2400W peak)
- 1.6 kHz passive crossover frequency
- 60 × 60° rotatable PT waveguide for flexible coverage patterns
- Nominal impedance: 8 Ohms
- Dual NL4 speakON connectors
- Dimensions: 28" × 16" × 14"; Weight: 50 lbs
The AM7212/66 combines proven JBL driver technology with practical design flexibility, delivering consistent midfield coverage and impressive SPL capability in a portable, road-tested package.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM7212/66 is a professional two-way full-range speaker built for touring, live venues, and demanding installations where reliability and clean output matter. Compact at 50 lbs with a rotatable waveguide, it delivers 126 dB continuous SPL from a 12-inch woofer and compression driver, making it road-tough for mid-sized rooms and festival stages. Choose it for consistent tone, articulate mids and highs, and the structural durability that keeps performers sounding clear night after night.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Studio Sessions
- ✓ Mid-sized venues
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What size woofer and compression driver does the AM7212/66 use?
It features a JBL Differential Drive 2262H 12-inch woofer with dual voice coil and dual magnetic gap, paired with a 2432H compression driver with a 1.5-inch exit and 75 mm voice coil. The 1.6 kHz passive crossover divides the frequency range cleanly between them.
What are the maximum SPL and power handling specs?
The speaker delivers 126 dB continuous (132 dB peak) low-frequency SPL and 134 dB continuous (140 dB peak) high-frequency SPL in bi-amp mode. In passive mode, it handles 600 W continuous (2400 W peak) and maintains 8 Ohm nominal impedance for standard pro audio systems.
Can the waveguide be repositioned, and how portable is this speaker?
Yes, the 60 × 60° PT (Progressive Transition) waveguide rotates to vertical or horizontal coverage, adapting to different room layouts and mounting needs. At 50 lbs with compact 28" × 16" × 14" dimensions, it is designed for touring and multi-venue use.
What frequency range does it cover, and how does it compare to other touring speakers?
The AM7212/66 covers 42 Hz–20 kHz (±3 dB) with extended response down to 36 Hz (–10 dB), placing it in the same class as the Electro-Voice ZLX, QSC K12.2, and Yamaha DXR12. Its 95 dB/watt sensitivity and 1.6 kHz crossover ensure efficient, smooth operation without excessive amplifier demand.
What connectors and build features support touring use?
Dual NL4 speakON connectors allow redundant signal and ground paths for live reliability. The heavily braced birch enclosure with DuraFlex finish resists road wear and venue damage while maintaining structural rigidity at high SPL.
