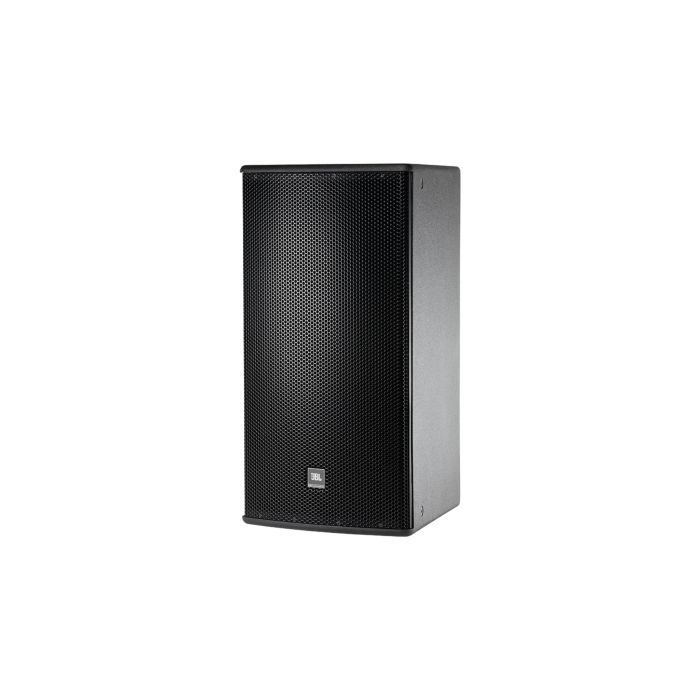

JBL AM7215/64 Two-Way Full Range Loudspeaker

The AM7215/64 is a road-tested mid-to-large format speaker built for consistent, articulate output in live venues, touring installations, and permanent sound systems. Its trapezoid cabinet and rotatable waveguide adapt to any stage or room layout, while the dual-voice-coil woofer and compression driver deliver authoritative projection without muddiness or coloration—essential for keeping your mix clean and present from stage to the back wall.

Output & Live Coverage

This system achieves 96 dB SPL sensitivity at 1W/1m in passive mode, delivering 124 dB continuous average SPL with 130 dB peak capability—plenty of headroom for mid-sized rooms and outdoor gigs. The 60° × 40° rotatable waveguide and directivity index of 12.6 dB keep the sound focused and controlled, reducing feedback risk and stage wash so monitors and mains stay balanced and predictable under real-world conditions.

Driver Design & Road Reliability

The JBL 2265H 380mm differential-drive woofer with dual voice coil and magnetic gap handles extended low-end punch starting at 34 Hz (at −10 dB), while the JBL 2432H compression driver with 75mm voice coil and 38mm exit reproduces midrange and treble with minimal distortion even at sustained volume. Heavy internal bracing, multi-ply birch construction, and the durable DuraFlex finish survive multiple load-ins, outdoor weather, and years of touring without compromise.

Key Features

• Frequency Range (−10 dB): 34 Hz – 20 kHz
• Frequency Response (±3 dB): 40 Hz – 18 kHz
• System Sensitivity: 96 dB SPL (1W @ 1m, passive mode)
• Maximum SPL: 124 dB continuous average / 130 dB peak
• Low-Frequency Driver: JBL 2265H 380mm dual voice coil, differential drive
• High-Frequency Driver: JBL 2432H compression driver, 75mm voice coil, 38mm exit
• Coverage Pattern: 60° × 40°, rotatable waveguide
• Passive Crossover Frequency: 1.8 kHz
• Directivity Index: 12.6 dB
• Enclosure: Multi-ply birch with DuraFlex finish, 14-gauge steel grille, fifteen M10 threaded attachment points
• Operating Modes: Bi-amp/passive switchable

The AM7215/64 combines time-tested JBL component engineering with rock-solid construction, making it a trusted choice for sound professionals and venues demanding accurate, high-output performance across every frequency—show after show.
