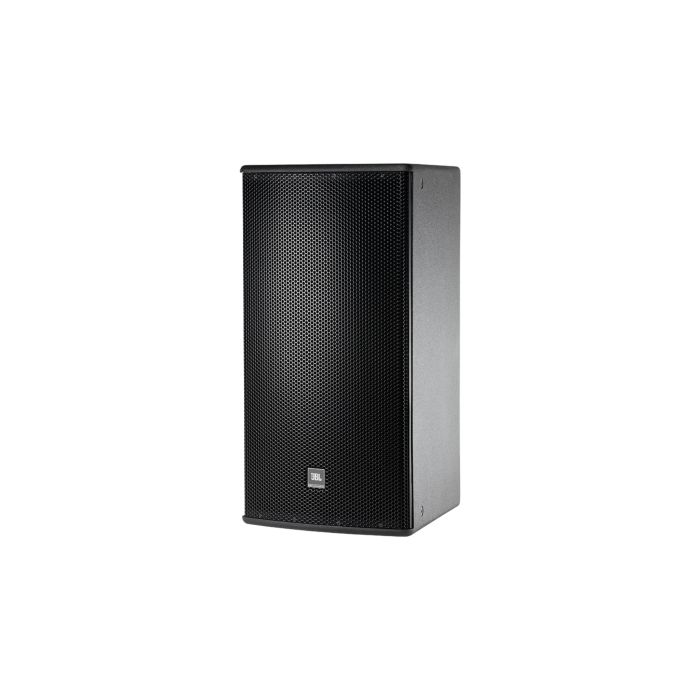

JBL AM7215/66 Two-way full range loudspeaker
Description
JBL AM7215/66 Two-way Full Range Loudspeaker
The AM7215/66 is a professional-grade full-range loudspeaker engineered for demanding live sound and installed audio applications. Its robust construction and high-output capability make it a reliable workhorse for venues, theaters, and touring operations requiring consistent, articulate reproduction across the full frequency spectrum.
Audio Performance & Coverage
This system delivers 124 dB-SPL continuous average output (130 dB peak) with a 96 dB SPL sensitivity at 1W/1m, enabling substantial sound pressure levels from moderate amplifier power. The 60° × 60° rotatable waveguide and 14.5 directivity factor (Q) provide controlled, focused coverage, while the 1.4 kHz passive crossover integrates the JBL 2265H 15-inch low-frequency driver and 2432H compression driver for seamless midrange transition and extended high-frequency clarity across the 40 Hz–18 kHz (±3 dB) frequency response.
Design & Build Quality
Construction centers on multi-ply birch enclosure with DuraFlex finish and heavy internal bracing, ensuring rigidity and minimal panel resonance in demanding environments. The cabinet weighs 60 lbs (27.2 kg) and incorporates fifteen M10 threaded attachment points, allowing flexible rigging and integration into speaker arrays or permanent installations.
Key Features
- JBL 2265H dual voice coil, dual magnetic gap 15-inch LF driver — 1000 W AES power rating (4000 W peak, 2 hrs)
- JBL 2432H compression driver with 38 mm (1.5 in) exit and 75 mm (3 in) voice coil
- 100 W HF transducer power rating (400 W peak, 2 hrs)
- 124 dB-SPL continuous average output; 130 dB peak
- 96 dB SPL system sensitivity (1W @ 1m, passive mode)
- Frequency range: 34 Hz–20 kHz (-10 dB); 40 Hz–18 kHz (±3 dB)
- 1.4 kHz passive crossover frequency
- 60° × 60° rotatable waveguide coverage pattern
- Directivity Index (DI): 11.6 dB
- 600 W long-term system power rating (IEC, passive mode)
- Multi-ply birch enclosure with DuraFlex finish and heavy bracing
- Fifteen M10 threaded attachment points for rigging and arrays
The AM7215/66 combines high SPL capability, controlled directivity, and professional durability—a proven performer for installations and live sound applications where reliability and output are non-negotiable.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM7215/66 is a professional two-way full-range loudspeaker built for touring, installed venues, and large live sound operations that demand consistent, articulate coverage and serious output. Road-tested construction with a 15-inch woofer and compression driver delivers 124 dB continuous SPL and controlled 60° × 60° directivity, so your sound stays locked in across the room without mud or feedback. Choose this if you're running permanent installations, theater rigs, or touring systems where reliability and extended frequency response matter more than compact size.
Who This Is For
Great for
- ✓ live performance
- ✓ touring
- ✓ installed audio
- ✓ large venues
Not the best pick for
- – home recording
- – practice
Skill level: Professional
Frequently Asked Questions
What output level and SPL does the AM7215/66 deliver?
This speaker produces 124 dB-SPL continuous average output and 130 dB peak SPL, with 96 dB sensitivity at 1W/1m. The dual voice coil 15-inch woofer handles 1000 W AES (4000 W peak), and the compression driver takes 100 W AES (400 W peak), providing substantial sound pressure from moderate amplifier power.
How does the coverage pattern work, and can it be adjusted?
The 60° × 60° rotatable waveguide provides controlled, focused coverage with a 14.5 directivity factor (Q), meaning sound stays tight and articulate across the listening area. The waveguide rotates, allowing you to adjust coverage to suit your venue layout or array configuration.
What are the physical specs and rigging options?
The cabinet is 60 lbs (27.2 kg), constructed from multi-ply birch with DuraFlex finish and heavy internal bracing for road durability. It includes fifteen M10 threaded attachment points for flexible rigging in speaker arrays, flown rigs, or permanent wall-mount installations.
What frequency range and crossover design does it use?
The AM7215/66 covers 40 Hz–18 kHz (±3 dB) with a passive 1.4 kHz crossover that integrates a JBL 2265H 15-inch woofer and 2432H compression driver for seamless midrange transition and extended high-frequency clarity.
How does this compare to other touring and install speakers?
The AM7215/66 sits in the same class as the Electro-Voice ZxA5, QSC K12.2, and Behringer B115D—all professional full-range systems for live sound and installations. The JBL emphasizes controlled directivity, articulate midrange, and road-proven construction, making it a solid choice for touring rigs and permanent venues where output and consistency are non-negotiable.
