JBL AM7315/64 3-WAY Full-range Loudspeaker Sys
Description

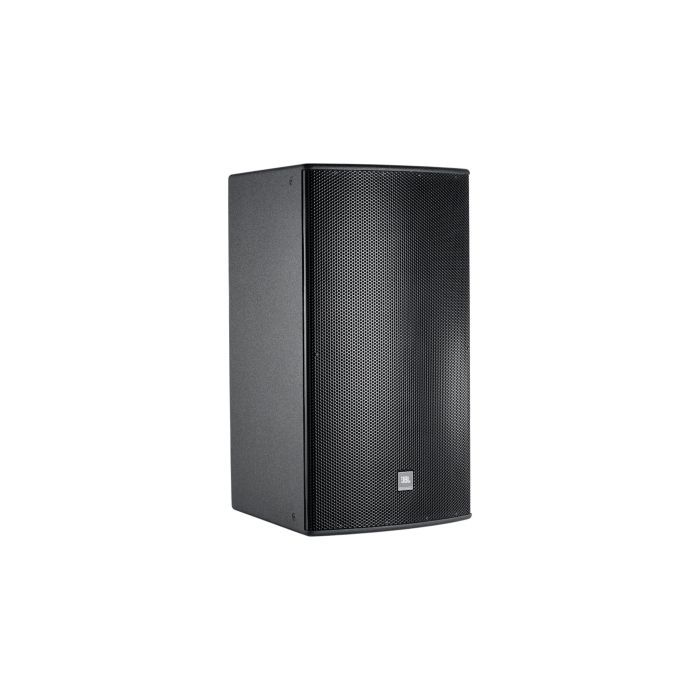

JBL AM7315/64 3-Way Full-Range Loudspeaker System
The JBL AM7315/64 is a professional-grade three-way loudspeaker engineered for touring, installed sound, and live reinforcement applications where consistent coverage and high output are non-negotiable. This system delivers controlled directivity with switchable tri-amp and bi-amp modes, adapting efficiently to different venues and acoustic conditions. Built for the road and the stage, it combines substantial power handling with precise frequency management across the full spectrum.
Acoustic Performance & Coverage
The system achieves a frequency response of ±3 dB from 45 Hz to 18 kHz, with extended reach down to 38 Hz at –10 dB, covering the full audible spectrum with minimal coloration. Its 60° × 40° rotatable waveguide with a directivity factor of 20 (13 dB directivity index) provides focused, controlled dispersion that minimizes room reflections and reduces feedback risk in live settings, while maximum SPL ratings reach 135 dB continuous average in the high-frequency range, delivering the impact needed for large-scale venues and demanding touring situations.
Driver Configuration & Power Handling
The three-way design employs a 380 mm (15-inch) Differential Drive low-frequency driver, 200 mm (8-inch) CMCD cone midrange compression driver, and 38 mm (1.5-inch) exit compression driver with a 75 mm voice coil, each engineered for maximum efficiency and road durability. Power specifications are substantial: 1000 W (4000 W peak) for low frequencies, 350 W (1400 W peak) for midrange, and 100 W (400 W peak) for high frequencies, with switchable tri-amp/bi-amp crossover modes at 300 Hz and 2.3 kHz for flexible system integration and reliable operation across different setups.
Key Features
- One 380 mm (15 in) Differential Drive low-frequency driver
- One 200 mm (8 in) CMCD Cone Midrange Compression Driver
- One 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil HF compression driver
- Frequency Range (–10 dB): 38 Hz – 20 kHz
- Frequency Response (±3 dB): 45 Hz – 18 kHz
- 60° × 40° rotatable waveguide with directivity factor Q of 20
- Tri-amp/Bi-amp switchable modes with crossover frequencies at 300 Hz and 2.3 kHz
- LF: 1000 W (4000 W peak, 2 hrs) / 750 W (3000 W peak, 100 hrs); MF: 350 W (1400 W peak, 2 hrs); HF: 100 W (400 W peak, 2 hrs)
- Maximum SPL: LF 127 dB-SPL continuous (133 dB peak); MF/HF 135 dB-SPL continuous (141 dB peak)
- Dimensions: 967 × 561 × 657 mm (38.1 × 22.1 × 25.9 in) in vertical orientation
- M10 threaded suspension points for flying or mounting
- Environmental rating: Mil-Std 810; IP-x3 per IEC529 for outdoor durability
The AM7315/64 combines proven JBL professional driver technology with flexible operational modes and road-tested construction, making it a dependable workhorse for sound engineers and venue operators who need reliable full-range coverage night after night.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM7315/64 is a professional three-way loudspeaker built for touring, large venues, and festival sound systems where high output and consistent coverage are non-negotiable. Its 15-inch woofer, 8-inch mid driver, and 1.5-inch HF compression driver deliver 135 dB SPL with controlled directivity and switchable tri-amp/bi-amp modes to adapt to any room. Choose this if you're running sound for serious venues or festivals and need a workhorse that minimizes feedback, handles peak power reliably, and sits in any acoustic environment without coloration.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Large venue reinforcement
- ✓ Festival sound systems
Not the best pick for
- – Home Recording
- – Small intimate venues
- – Practice spaces
Skill level: Professional
Frequently Asked Questions
What does tri-amp/bi-amp switchable mode mean?
The AM7315/64 can operate in either tri-amp mode (separate amplifiers for lows, mids, and highs with crossovers at 300 Hz and 2.3 kHz) or bi-amp mode (two amps handling frequency bands differently), allowing you to optimize amplifier layout and crossover strategy for your specific venue and amplifier setup.
Is this suitable for outdoor festivals and touring?
Yes. The system meets Mil-Std 810 environmental standards and IP-x3 rating per IEC 529 for outdoor durability, with M10 threaded suspension points for flying or permanent mounting, making it road-hardened and venue-ready.
What kind of maximum SPL does it produce?
The midrange and high-frequency sections deliver 135 dB SPL continuous (141 dB peak), while the low-frequency driver reaches 127 dB SPL continuous (133 dB peak), enabling high-impact reinforcement in large halls, festivals, and outdoor venues.
How much space does the AM7315/64 take up?
In vertical orientation, it measures 967 × 561 × 657 mm (38.1 × 22.1 × 25.9 inches), with M10 flying points for suspension or ground stacking in touring or installed configurations.
Will this color my sound or add room reflections?
The 60° × 40° rotatable waveguide with a directivity factor of 20 (13 dB directivity index) provides focused, controlled dispersion that minimizes room reflections and coloration, delivering precise frequency management across the full spectrum with ±3 dB consistency from 45 Hz to 18 kHz.
