JBL AM7315/95 3-WAY Full-range Loaudspeaker System
Description

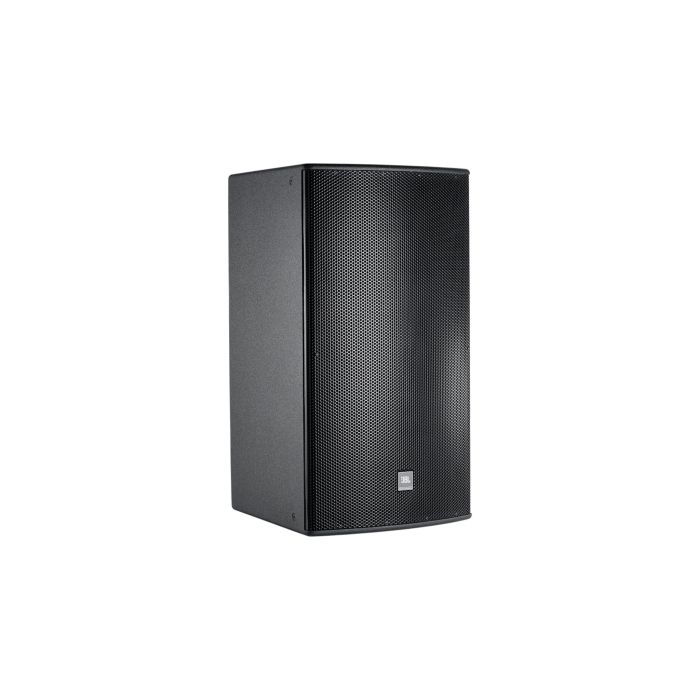

JBL AM7315/95 3-Way Full-Range Loudspeaker System
The AM7315/95 is a professional-grade three-way speaker system engineered for consistent, controlled coverage across mid-to-large venues. Built with heavy-duty Finnish birch plywood and DuraFlex finish, this cabinet delivers reliable performance in both indoor and outdoor installations with minimal maintenance. Its rotatable design and comprehensive mounting options make it equally at home as a main system, fill speaker, or permanent installation fixture.
Acoustic Performance & Coverage
This system produces a maximum SPL of 141 dB in tri-amp mode with 108 dB sensitivity in bi-amp mode, making it capable of pressurizing large spaces without distortion. The 90° × 50° coverage pattern ensures even sound distribution across wide horizontal throw with controlled vertical dispersion, ideal for venues where off-axis clarity matters.
Driver Configuration & Construction
The three-way design pairs a 380 mm (15-inch) Differential Drive woofer for punchy low-end with a 200 mm (8-inch) CMCD cone midrange driver and 38 mm compression tweeter, yielding a 38 Hz to 20 kHz frequency range. Cabinet construction uses 16 mm exterior-grade 11-ply Finnish birch plywood with DuraFlex finish for durability in demanding environments.
Key Features
- Three-way system with 15-inch woofer, 8-inch midrange, and 1.5-inch tweeter
- Frequency response: 38 Hz to 20 kHz (-10 dB)
- Maximum SPL: 141 dB (tri-amp mode)
- System sensitivity: 108 dB SPL (bi-amp mode)
- Power rating: 600W
- Coverage pattern: 90° × 50°
- Dimensions: 967 × 561 × 657 mm (38.1 × 22.1 × 25.9 inches)
- 13 M10 threaded suspension points for flexible rigging
- Rotatable for horizontal or vertical orientation
- 16 mm 11-ply Finnish birch plywood cabinet with DuraFlex finish
- IP-x3 environmental rating per IEC529
- Suitable for permanent installation or portable deployment
The AM7315/95 delivers the SPL and predictable coverage needed for larger rooms and outdoor events. Built to survive the road and the elements, it's a dependable choice for sound engineers who need to cover serious ground without compromise.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM7315/95 is a professional three-way loudspeaker built for mid-to-large venues, touring, and permanent installations where consistent coverage and high SPL output matter. Its 15-inch woofer, 8-inch midrange, and compression tweeter deliver 141 dB of punchy, distortion-free sound across a controlled 90° × 50° pattern, while the rotatable Finnish birch cabinet and 13 rigging points handle both outdoor and indoor deployments. Choose it when you need a reliable workhorse that pressurizes large spaces and maintains clarity off-axis without breaking down.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Large Venue Coverage
Not the best pick for
- – Home Recording
- – Intimate Venues
- – Studio Monitoring
Skill level: Professional
Frequently Asked Questions
What is the frequency response and maximum SPL?
The AM7315/95 covers 38 Hz to 20 kHz (-10 dB) and achieves a maximum SPL of 141 dB in tri-amp mode or 108 dB SPL sensitivity in bi-amp mode, making it suitable for large spaces and outdoor events without distortion.
How is the cabinet constructed and what makes it durable?
The cabinet uses 16 mm 11-ply Finnish birch plywood with DuraFlex finish and carries an IP-x3 environmental rating per IEC529, designed to withstand touring and permanent outdoor installations with minimal maintenance.
What driver configuration is inside and what do I get in terms of coverage?
The three-way system pairs a 380 mm (15-inch) Differential Drive woofer, 200 mm (8-inch) CMCD midrange driver, and 38 mm compression tweeter, delivering a 90° × 50° coverage pattern for wide horizontal throw with controlled vertical dispersion.
Can I rotate the cabinet and mount it flexibly?
Yes—the AM7315/95 features 13 M10 threaded suspension points and is fully rotatable for horizontal or vertical orientation, supporting deployment as a main system, fill speaker, or permanent installation fixture.
What are the physical dimensions and power rating?
Dimensions are 967 × 561 × 657 mm (38.1 × 22.1 × 25.9 inches), with a 600W power rating suitable for both portable and fixed installations.
