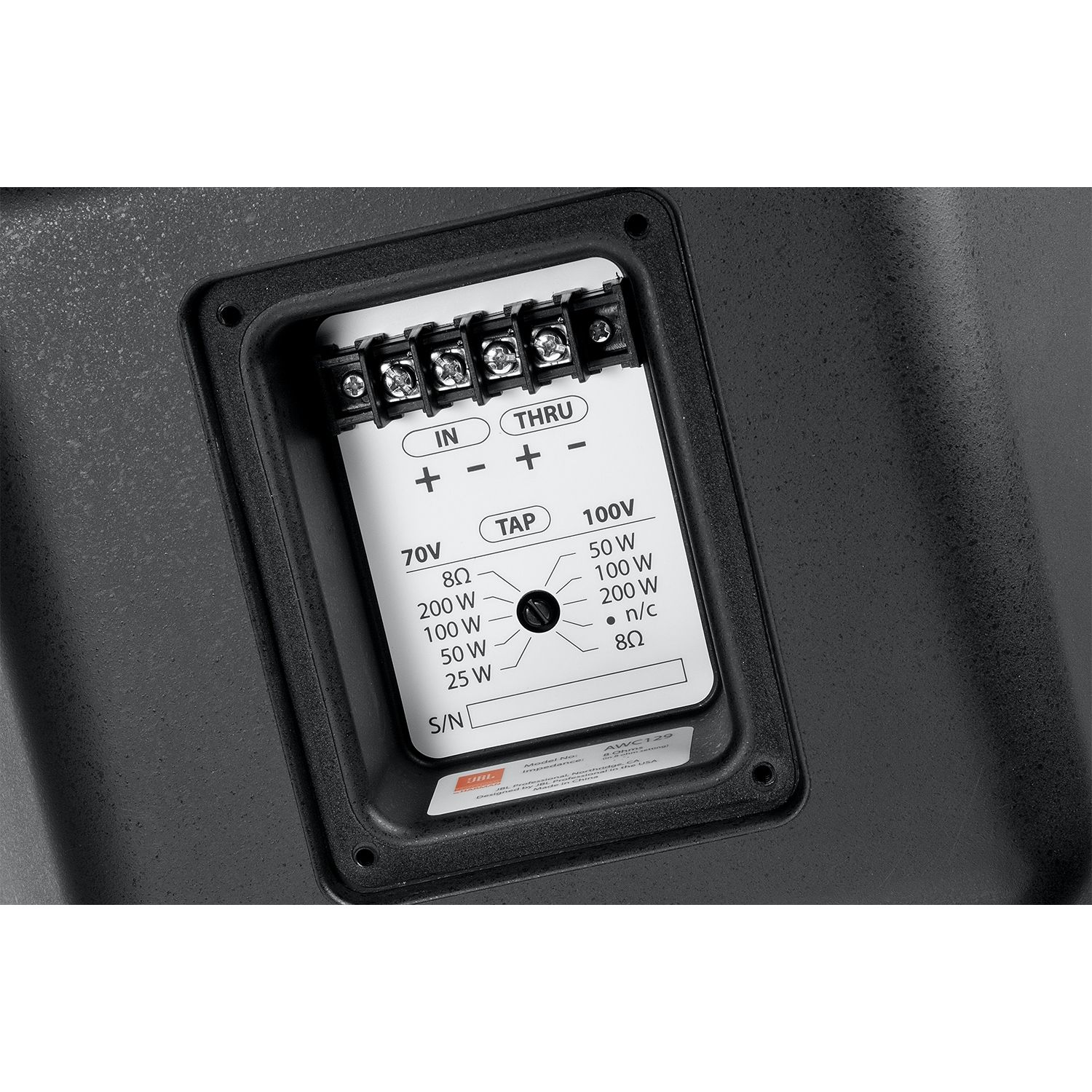

Highly weather-resistant IP56 rating Consistent 120° x 120° broadband pattern control Components: • 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil. • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm. Extraordinary clarity for speech, with extended frequency response for music. Advanced high-slope crossover network for constant coverage and smooth, natural midrange. 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability. High-power passive crossover network. Overload protection 80 Hz – 20 kHz frequency response. 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.

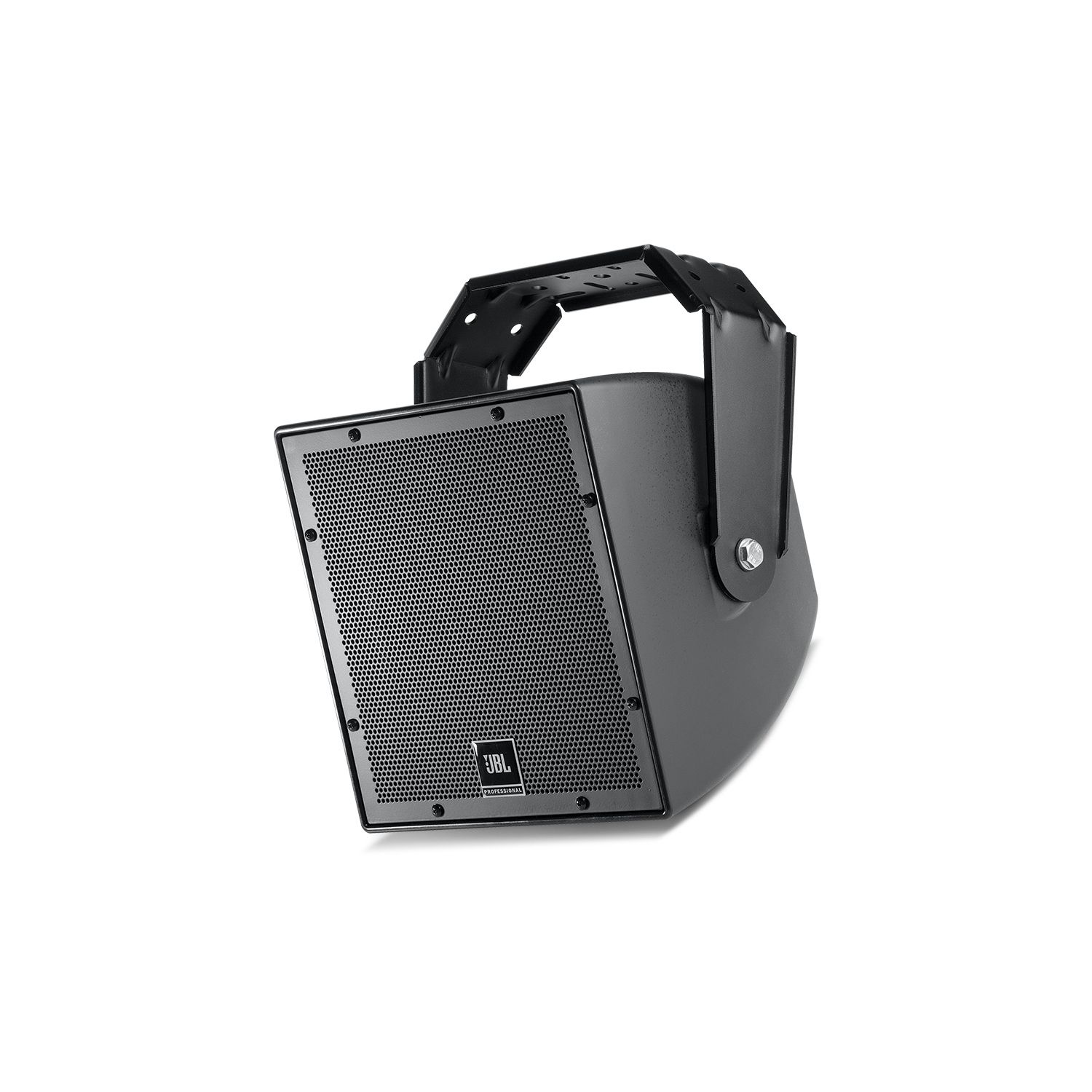

JBL AWC82 Compact 2-Way Coaxial Loudspeaker 8in LF Black

The AWC82 delivers professional-grade output from a compact, weather-sealed enclosure designed for permanent outdoor and semi-permanent installation. Its coaxial design integrates woofer and compression driver into a single acoustic center, eliminating phase issues and ensuring consistent coverage across a wide 120 × 120 degree dispersion pattern. Built to withstand extreme environmental conditions, this speaker combines rugged durability with genuine pro-audio performance.

Audio Performance

With a 94 dB sensitivity rating and peak SPL capability reaching 124 dB, the AWC82 delivers authoritative output from modest amplifier power. The 1.8 kHz crossover with 3rd-order high-pass and 2nd-order low-pass filtering ensures seamless integration between the 200 mm Kevlar-reinforced woofer and 25 mm compression driver, while the 100 Hz–20 kHz frequency response (±3 dB) covers full-range program material with clarity and extension.

Design & Durability

Rated IP56 and exceeding Mil Spec 810 for humidity, salt spray, temperature, and UV resistance, this speaker is engineered for unforgiving outdoor environments. The compact 300 × 300 × 305 mm footprint and 9.8 kg weight simplify rigging and placement, while the included U-bracket mounting system integrates into permanent installations with minimal modification.

Key Features

8 ohm nominal impedance with 250W long-term power rating (2 hrs @ rated level)

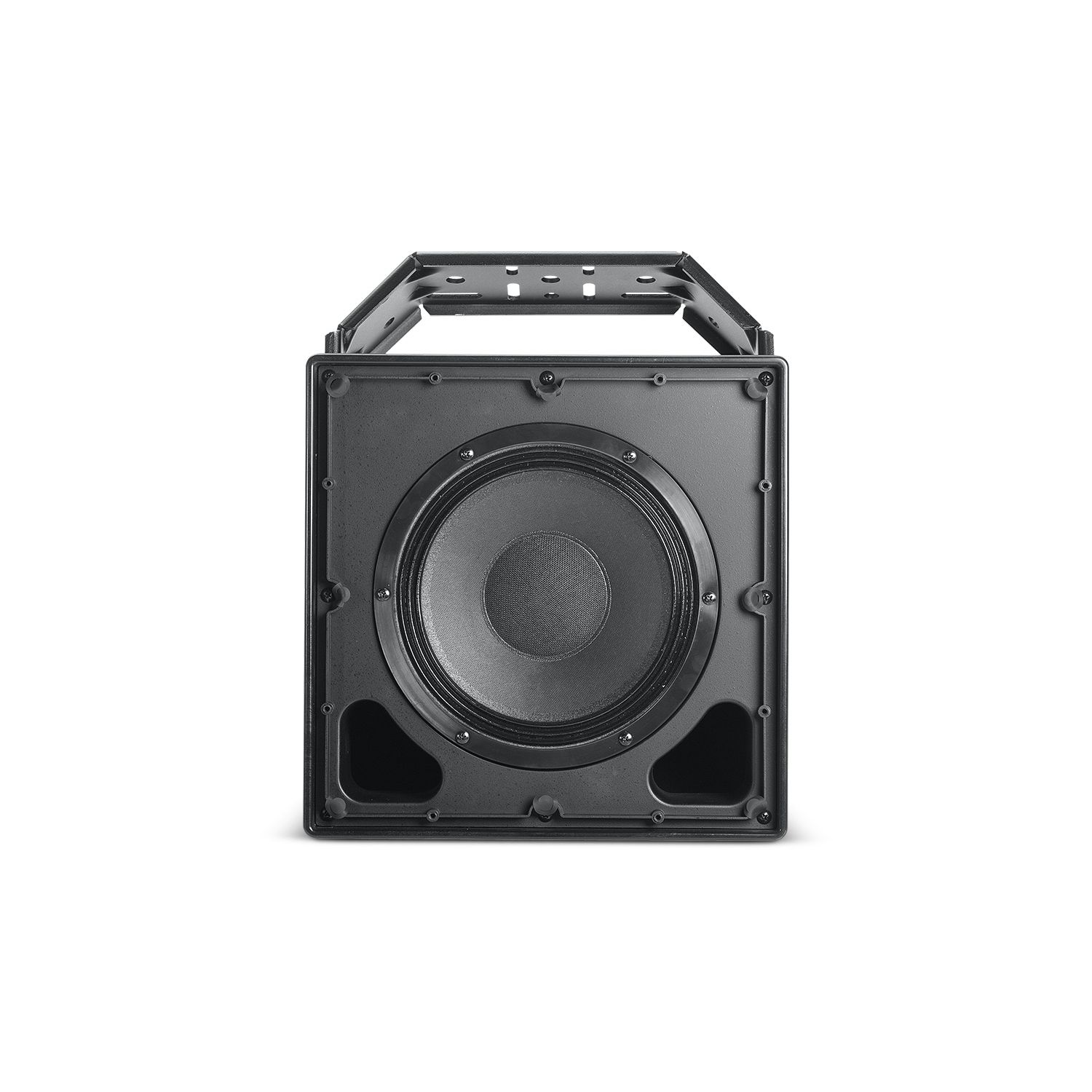

200 mm woofer with Kevlar-reinforced cone and 50 mm voice coil (5.2 ohm DC resistance)
25 mm compression driver with patented design and high-temperature polymer diaphragm
Frequency response 100 Hz–20 kHz (±3 dB); extends to 80 Hz at −10 dB
Maximum SPL: 118 dB (8 ohm direct) with peaks reaching 124 dB
Sensitivity: 94 dB (average 100 Hz–20 kHz) @ 2.83V/1m
1.8 kHz crossover with 3rd-order high-pass and 2nd-order low-pass filtering
120 × 120 degree dispersion pattern for consistent coverage
IP56 rating with minimum 5° downward aiming angle requirement
Exceeds Mil Spec 810 for environmental durability and ASTM G85 salt spray testing (168 hrs)
Compact 300 × 300 × 305 mm dimensions; 9.8 kg (21.5 lb) without bracket
CE-compliant covered barrier strip terminals for easy integration

The AWC82 combines coaxial acoustic design, genuine weather resistance, and pro-level output in a package built to deliver consistent performance for permanent outdoor installations.

Condition	New
Country of Manufacture	China
