JBL C25AV-LS 5.25" 2-WAY Surface-mt Spk, Av Version W EN54-24, Blk
Share
- Brand new in original box
- Full JBL manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- C25AV-LS
Description

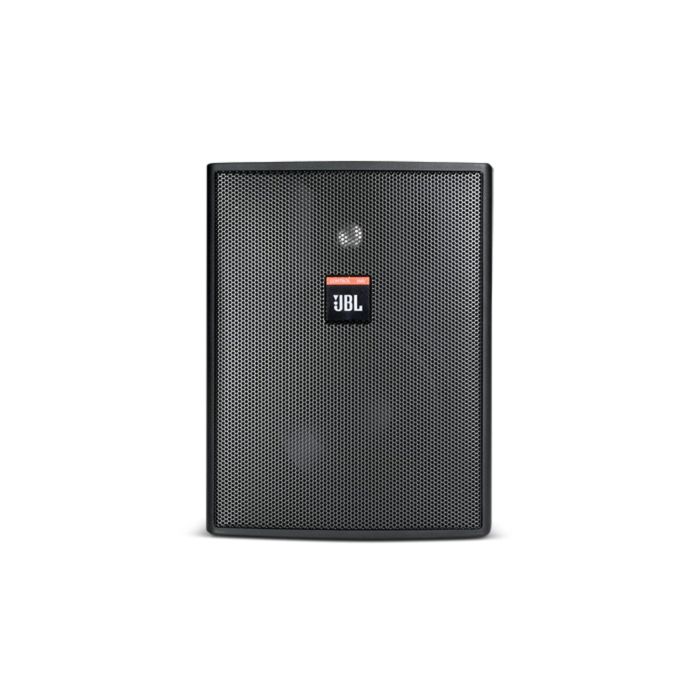

JBL C25AV-LS 5.25" 2-Way Surface-Mount Speaker, AV Version with EN54-24, Black
The JBL C25AV-LS is a compact, surface-mounted loudspeaker built for fixed installations where reliable speech intelligibility and consistent coverage are mission-critical. Its compact footprint and lightweight aluminum grille mount directly to walls or ceilings, delivering professional-grade output without requiring recessed installation infrastructure. Sound operators and venue managers depend on this speaker's predictable behavior in emergency and live communication systems.
Coverage & Directional Performance
With a controlled 100 x 85-degree coverage pattern, this speaker maintains consistent sound pressure across defined listening areas while minimizing spillover and feedback issues that create problems in institutional and live environments. The tight polar response keeps audio focused where it needs to go—corridors, stairwells, and perimeter zones benefit from the acoustic precision and reduced unwanted reflections.
Acoustic Architecture
The 130 mm polypropylene-coated woofer handles midrange and low-frequency content with durability against environmental stress, while the 10 mm titanium-coated horn-loaded tweeter delivers articulate highs essential for speech clarity and intelligibility. A 60W transformer supports both 70V and 100V distributed audio lines with an 8-ohm bypass option for low-impedance installations, giving you flexible hookup options for different system topologies.
Key Features
- 5.25-inch polypropylene-coated woofer
- 0.75-inch titanium-coated horn-loaded tweeter
- 60W transformer for 70V/100V lines with 8-ohm bypass
- 100 x 85-degree coverage pattern
- Aluminum grille with polyester powder coating
- Liquid-tight MTC-PC2 terminal covers
- InvisiBall® mounting hardware included
- Captive screw-down terminals (accepts up to 9 mm outside/4 mm inside lugs, bare wire up to 12 AWG)
- UL1480-UUMW Listed
- EN54-24:2008 certified for emergency voice communication
- NFPA90, NFPA70A, IEC60849/EN60849 compliant
Built to specification for life safety and commercial audio systems, the JBL C25AV-LS combines regulatory compliance, durability, and proven audio performance in a form factor that disappears into any architectural environment. Road-tested reliability and dependable operation make it the choice for sound techs running distributed audio systems that can't afford downtime.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL C25AV-LS is a compact, surface-mounted 5.25" speaker built for fixed installations where speech clarity and consistent coverage are essential—emergency voice systems, institutional facilities, and commercial spaces. Its tight 100 x 85-degree polar pattern minimizes spillover and feedback while delivering articulate, intelligible audio through a polypropylene woofer and titanium-coated horn tweeter. Choose it for reliable, code-compliant installation audio that handles both 70V and 100V distributed lines without requiring recessed infrastructure.
Who This Is For
Great for
- ✓ Emergency voice communication
- ✓ Commercial installations
- ✓ Speech intelligibility
- ✓ Fixed institutional audio
Not the best pick for
- – Music playback
- – High-fidelity listening
- – Bass-heavy applications
Skill level: Beginner · Intermediate · Advanced · Professional
Frequently Asked Questions
What does EN54-24 certification mean, and is this speaker suitable for emergency voice systems?
EN54-24:2008 certification confirms this speaker meets European standards for emergency voice communication systems. It is also UL1480 listed and compliant with NFPA90, NFPA70A, and IEC60849/EN60849, making it approved for life-safety and commercial audio installations requiring regulatory compliance.
Can this speaker work on both 70V and 100V distributed audio systems?
Yes. The built-in 60W transformer supports both 70V and 100V lines, and includes an 8-ohm bypass option for low-impedance installations. Captive screw-down terminals accept up to 12 AWG bare wire or lugs up to 9 mm outside diameter.
What is the coverage pattern, and where does this speaker work best?
The 100 x 85-degree controlled directional pattern maintains consistent sound pressure in defined listening areas while minimizing spillover and feedback. It is ideal for corridors, stairwells, perimeter zones, and other institutional spaces where acoustic precision and coverage control are important.
Does this speaker require in-wall or recessed installation?
No. The JBL C25AV-LS is a surface-mount design that attaches directly to walls or ceilings using included InvisiBall mounting hardware. Its compact lightweight form factor does not require recessed installation infrastructure.
Is this speaker suitable for music playback or high-fidelity listening?
No. The C25AV-LS is optimized for speech intelligibility and institutional audio. It is not designed for music playback or high-fidelity applications and should be used only for voice communication, emergency systems, and fixed commercial installations.
