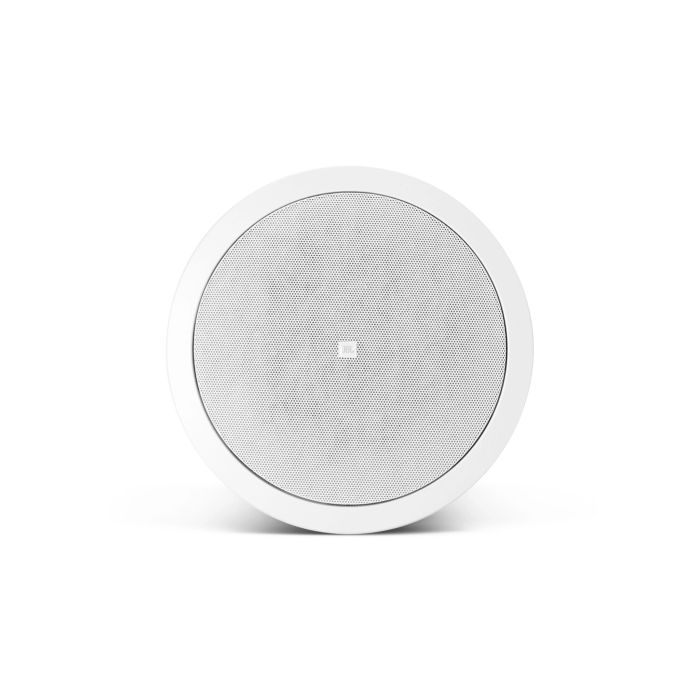

JBL C26CT-LS 6.5" 2-WAY Coaxial Ceiling Spk W EN54-24

JBL C26CT-LS 6.5" 2-Way Coaxial Ceiling Speaker with EN54-24

The C26CT-LS is a compact coaxial ceiling speaker built for dependable performance in venues, installed systems, and distributed audio networks. Its 6.5-inch woofer and titanium-coated tweeter deliver consistent coverage across large spaces, while the integrated transformer and safety certifications make it a straightforward drop-in solution for permanent or portable venue sound.

Audio Performance & Coverage

This speaker reproduces a frequency range of 80 Hz to 20 kHz with a 110° conical coverage angle, ensuring even sound distribution across wide areas. The Directivity Index of 4.6 (500 Hz–4 kHz) provides controlled directivity that minimizes reflections and overlap in multi-speaker arrays, while 107 dB maximum SPL at 1 meter delivers sufficient output for medium to large venues without distortion.

Installation & System Integration

The removable locking connector with screw-down terminals allows fast, secure wiring, and the integrated transformer with 60W, 30W, 15W, and 7.5W taps at 70V eliminates the need for external step-down equipment. SonicGuard overload protection safeguards against power surges, while UL1480 UUMW certification confirms compliance with life-safety system standards.

Key Features

• 6.5-inch (165mm) woofer with butyl rubber surround
• 3/4-inch (19mm) titanium-coated diffraction-loaded tweeter
• Frequency range: 80 Hz – 20 kHz
• Coverage angle: 110° conical
• Directivity Index: 4.6 (averaged 500 Hz to 4 kHz)
• Maximum SPL: 107 dB at 1 meter (top 70V/100V tap)
• 150-watt continuous program power handling
• Transformer taps: 60W, 30W, 15W, 7.5W @ 70V
• 16 Ohm impedance
• Dimensions: 8.3" H × 9.9" diameter; 7.5" ceiling-to-backcan depth
• Weight: 7.5 lb
• UL1480 UUMW listed; SonicGuard overload protection

The C26CT-LS combines reliable coaxial acoustics with commercial-grade protection and simplicity, making it a practical choice for clubs, theaters, hospitality venues, conference spaces, and any application demanding consistent, code-compliant audio coverage.
