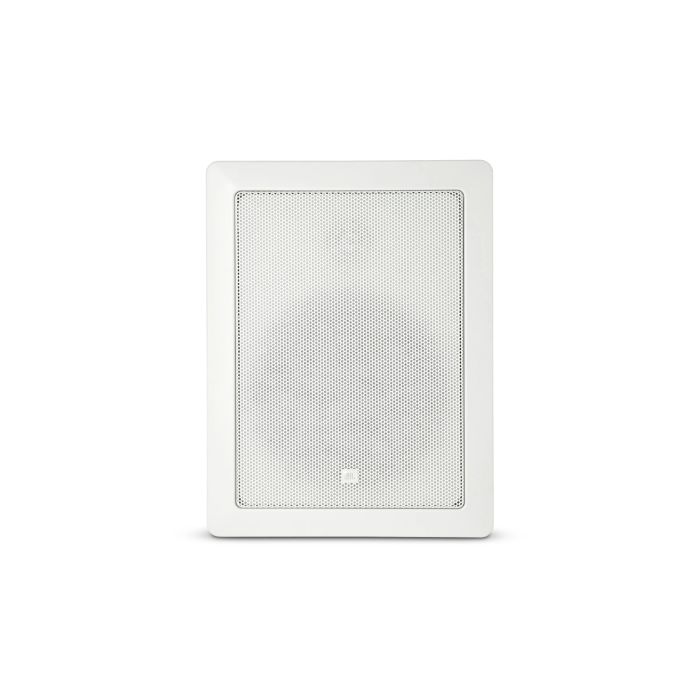

JBL Control 126W 6.5" In-wall Speaker
Description
JBL Control 126W 6.5" In-Wall Speaker
The Control 126W delivers professional-grade performance in a discreet in-wall format, ideal for venues, rehearsal spaces, and live-sound installations where acoustic clarity is non-negotiable but visible speaker placement must stay minimal. Its compact profile and aimable tweeter make it equally suited to front-of-house fills, side fills, and retrofit applications where traditional speaker rigs aren't practical or won't fit the room's constraints.
Acoustic Design & Coverage
This two-way system combines a 6.5-inch polymer-coated aluminum-cone woofer with a 1-inch pure-titanium dome tweeter, engineered for smooth, extended response from 38 Hz to 20 kHz. The high-slope 3rd-order crossover (18 dB/octave on both drivers) ensures natural midrange integration and 180° horizontal by 160° vertical coverage, allowing consistent sound across the stage or venue floor—critical for systems serving wider performance areas or distributed coverage scenarios.
Power Handling & Installation Specifications
Rated for 50 W continuous, 100 W program, and 200 W peak power at 8 ohms impedance, the Control 126W runs reliably into standard venue amplifiers and digital processors without strain. Wall cutout dimensions of 246 x 181 mm (9.7 x 7.2 inches) fit standard in-wall cavities, and the recommended 20 to 40-liter air cavity ensures proper bass loading for extended low-frequency performance in live sound chains.
Key Features
- 165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround
- 25 mm (1 in) pure-titanium dome low-diffraction swivel aimable tweeter
- Frequency response: 38 Hz – 20 kHz
- Sensitivity: 88 dB SPL
- Coverage pattern: 180°H x 160°V (average 1 kHz – 8 kHz)
- Power handling: 50 W continuous / 100 W program / 200 W peak
- Impedance: 8 ohms
- 3rd-order (18 dB/octave) high-slope crossover design
- Dimensions: 11" H x 8.5" W x 4.1" D (3.8" front-to-back)
- Optimum air cavity: 20 to 40 liters (0.7 to 1.4 cubic feet)
- Screw-down Euroblock connectors with 14 AWG maximum wire size
- Wall cutout: 246 x 181 mm (9.7 x 7.2 inches)
The Control 126W combines professional crossover engineering with practical installation features, making it a road-tested choice for live-sound systems that demand balanced tone and flexible mounting in tight spaces.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL Control 126W is a professional-grade 6.5-inch in-wall speaker that delivers smooth, balanced sound from 38 Hz to 20 kHz without eating up visual real estate — ideal for live venues, commercial installations, and retrofit applications where acoustic fidelity can't be compromised by awkward speaker placement. Its aimable titanium tweeter and high-slope crossover engineering ensure consistent, articulate response across wide listening areas, and it handles 50 W continuous through 200 W peak power with equal reliability. Choose this for installations where you need studio-quality tone in a discreet format that doesn't sacrifice coverage or low-end extension.
Who This Is For
Great for
- ✓ home recording
- ✓ studio sessions
- ✓ live performance
- ✓ commercial installation
Not the best pick for
- – practice
- – portable use
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What size wall cavity do I need for proper installation?
The Control 126W requires a wall cutout of 246 x 181 mm (9.7 x 7.2 inches) and an optimal air cavity of 20 to 40 liters (0.7 to 1.4 cubic feet) behind the speaker to ensure proper bass loading and extended low-frequency performance.
Can this speaker handle the amplifier power I have available?
Yes. The Control 126W is rated for 50 W continuous, 100 W program, and up to 200 W peak power at 8 ohms impedance, so it works well with both modest amplifiers and higher-output sources without difficulty.
What kind of coverage pattern does this speaker provide?
The Control 126W offers 180° horizontal by 160° vertical coverage with an aimable tweeter, allowing consistent sound across wider listening areas than fixed-angle designs — making it suitable for rooms where listeners sit at varying angles.
How does the crossover design affect the sound?
The high-slope 3rd-order crossover (18 dB/octave on both drivers) ensures natural midrange integration between the woofer and tweeter, resulting in smooth, balanced response across frequencies without any tonal discontinuities at the crossover point.
Is the tweeter adjustable for different room setups?
Yes. The 1-inch pure-titanium dome tweeter is swivel-aimable, allowing you to optimize high-frequency response and imaging for your specific listening or control-room layout.
