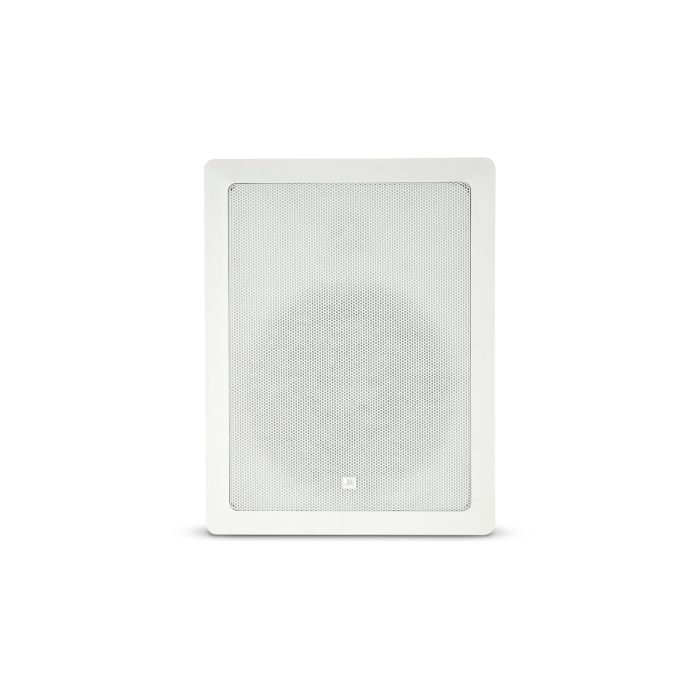

JBL Control 126WT 6.5" In-wall Speaker W Transformer
Description
JBL Control 126WT 6.5" In-wall Speaker with Transformer
The Control 126WT is a compact in-wall speaker engineered for venues, installed sound systems, and distributed audio setups that demand consistent coverage and dependable performance night after night. Its swivel tweeter and transformer-equipped design adapt to varied mounting scenarios and voltage configurations without requiring external equipment, keeping your sound rig straightforward and reliable.
Audio Performance & Coverage
This speaker delivers a frequency range of 38 Hz–20 kHz with 88 dB SPL sensitivity at 1W/1m, providing clear, articulate output across the full spectrum. The 180° horizontal and 160° vertical coverage pattern (averaged 1 kHz–8 kHz) ensures even sound distribution across wide listening areas, while the high-slope crossover maintains natural midrange character essential for speech clarity and music reproduction in live settings.
Installation & System Integration
Built-in multi-tap 70V/100V transformer eliminates the need for external step-down equipment, streamlining setup in installed and touring rigs. The 8-ohm nominal impedance and 50W continuous power handling (100W program, 200W peak) integrate seamlessly into both low-voltage and standard amplifier configurations. Screw-down Euroblock connectors provide secure, tool-friendly wiring suitable for professional deployments and quick teardowns.
Key Features
- 6.5" polymer-coated aluminum-cone woofer with pure butyl rubber surround
- 1" pure-titanium dome low diffraction tweeter with swivel aimability
- Frequency range: 38 Hz – 20 kHz
- Sensitivity: 88 dB SPL, 1W, 1m
- Coverage pattern: 180°H x 160°V (average 1 kHz – 8 kHz)
- Power handling: 50W continuous / 100W program / 200W peak
- Nominal impedance: 8 ohms
- Multi-tap transformer for 70V/100V systems
- Tweeter aimability: -10 degree adjustment
- Screw-down Euroblock-type connector
- Weight: 6.2 kg (13.5 lbs)
- High-slope crossover for natural midrange reproduction
The Control 126WT combines professional-grade components with practical installation features, making it a dependable choice for venues and systems requiring consistent in-wall audio performance you can count on.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL Control 126WT is a professional-grade 6.5" in-wall speaker built for commercial venues, hospitality spaces, and distributed audio systems that need reliable, consistent coverage without external gear. Its built-in 70V/100V transformer, swivel tweeter, and wide coverage pattern (180° × 160°) deliver clear speech intelligibility and even sound distribution across large listening areas. Choose this speaker for dependable performance in live venues, installed systems, and applications where simplicity, coverage, and professional-grade reliability matter more than boutique tone.
Who This Is For
Great for
- ✓ commercial audio systems
- ✓ hospitality venues
- ✓ distributed audio installations
- ✓ speech intelligibility
Not the best pick for
- – home hi-fi
- – critical listening
- – music production monitoring
Skill level: Professional
Frequently Asked Questions
What does the built-in transformer do, and do I need external equipment?
The multi-tap 70V/100V transformer is built into the speaker, eliminating the need for a separate step-down transformer and simplifying installation in commercial audio systems. It allows the speaker to integrate directly into both low-voltage distributed systems and standard amplifier setups.
What is the coverage pattern, and will this work well in a large room?
The speaker delivers 180° horizontal and 160° vertical coverage (averaged 1 kHz–8 kHz), providing even sound distribution across wide listening areas. This wide, consistent pattern makes it ideal for hospitality venues, restaurants, retail spaces, and other commercial installations.
Is the tweeter adjustable?
Yes, the 1-inch titanium dome tweeter is swivel-mounted with -10 degree adjustment range, allowing you to aim it toward seating areas or adjust coverage to suit your installation layout.
What is the power handling, and what size amplifier do I need?
The speaker handles 50W continuous, 100W program, and 200W peak power. It has an 8-ohm nominal impedance and works with standard professional amplifiers; the built-in transformer allows it to integrate into both 70V/100V distributed systems and direct 8-ohm connections.
Is this suitable for music playback, or just speech?
The speaker covers 38 Hz–20 kHz with a high-slope crossover designed to maintain natural midrange character, making it capable of both speech and music playback in commercial settings. However, it is engineered for speech intelligibility and consistent coverage rather than critical listening or music production monitoring.
