JBL Control 68HP 8" HIGH-POWER PENDANT SPKR W CD, BLK
Description

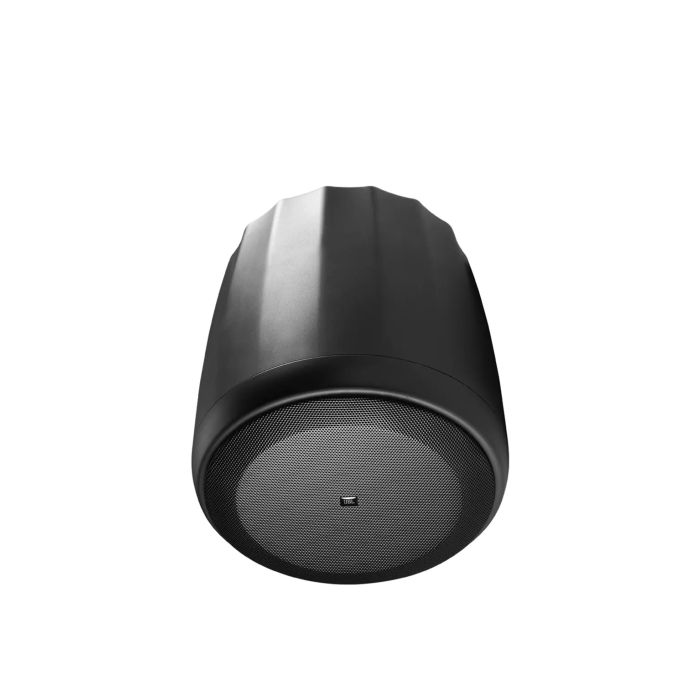

JBL Control 68HP 8" High-Power Pendant Speaker
The JBL Control 68HP delivers professional-grade projection from a compact pendant-mounted form factor, making it the choice for medium-to-large venue coverage without sacrificing sightlines. Its dual-suspension system with high-tensile galvanized steel wire rope ensures secure, stable installation in permanent or temporary setups. Built for the reliability demands of touring, installed-sound, and venue environments, this speaker combines serious output capability with the aesthetic discretion required in hospitality, retail, and entertainment spaces.
Acoustic Performance
The 8-inch Kevlar-reinforced woofer paired with a titanium dome compression driver produces clean, controlled output across a wide frequency range, from 72 Hz to 16 kHz (3 dB). Maximum output reaches 114 dB continuous and 120 dB peak at 1 meter, delivering the clarity and punch needed for speech reinforcement, background music, and live sound applications without distortion or strain on long runs.
Installation & Specifications
Multiple 70V and 100V transformer taps (ranging from 8.5W to 68W) enable flexible line-array and distributed-speaker configurations on standard installed-sound infrastructure. The 110° constant-directivity dispersion pattern ensures even coverage across listening areas, while the included two complete suspension cable systems (main and safety) and 4.5-meter high-tensile wire rope provide dependable support and redundancy for venue-to-venue deployment or permanent installation.
Key Features
- 209mm (8-inch) Kevlar-reinforced woofer with 50mm (2-inch) voice coil on fiberglass former
- 25mm (1-inch) titanium dome compression driver
- Frequency Range (-10 dB): 52 Hz – 17 kHz
- Frequency Response (3 dB): 72 Hz – 16 kHz
- Power Capacity: 150W continuous / 600W peak; 250W continuous / 1000W peak; 500W program power
- Nominal Sensitivity: 90 dB
- Maximum SPL: 114 dB continuous, 120 dB peak @ 1m
- Rated Impedance: 8 ohms
- 70V and 100V transformer taps (68W, 34W, 17W, 8.5W)
- 110° constant-directivity dispersion pattern
- Two complete hanging cable systems with 4.5-meter high-tensile galvanized steel wire rope
- Black finish
The Control 68HP is engineered for sound engineers and installers demanding high-output pendant speakers that blend power, flexibility, and professional reliability into a single compact package.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL Control 68HP is a professional 8-inch pendant speaker delivering 114 dB continuous output with clean, controlled projection ideal for medium-to-large venues, installed sound systems, and live reinforcement. Built with a Kevlar-reinforced woofer and titanium dome driver, it handles speech, background music, and live sound without distortion while mounting discreetly overhead. Dual suspension cable systems, 70V/100V transformer flexibility, and a 110° dispersion pattern make it a reliable workhorse for permanent installations, hospitality spaces, and venues where sonic performance and sightline aesthetics both matter.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Commercial Installation
- ✓ Speech Reinforcement
- ✓ Medium-to-Large Venue Coverage
Not the best pick for
- – Home Recording
- – Intimate Acoustic Spaces
- – Portable/Touring (due to installation requirements)
Skill level: Professional
Frequently Asked Questions
What makes the Control 68HP suitable for live sound and installed systems?
It delivers 114 dB continuous and 120 dB peak output with a clean, controlled tone across 72 Hz–16 kHz (3 dB), using a Kevlar-reinforced woofer and titanium dome driver to handle speech reinforcement, background music, and live sound without distortion. The 110° constant-directivity dispersion ensures even coverage across medium-to-large venues, and dual suspension cable systems with 4.5-meter high-tensile galvanized steel wire rope provide secure, redundant installation.
What transformer options does it support?
The Control 68HP includes both 70V and 100V transformer taps at 68W, 34W, 17W, and 8.5W, allowing flexible integration into standard installed-sound infrastructure and distributed speaker line-array configurations.
Is this speaker portable or designed for permanent installation?
It is engineered for permanent or semi-permanent installed-sound setups in venues, hospitality spaces, and commercial environments; the dual suspension system and pendant form factor are not suitable for portable touring or frequent relocation.
What are the key speaker components and their benefits?
The 8-inch Kevlar-reinforced woofer with a 2-inch voice coil on a fiberglass former combined with a 1-inch titanium dome compression driver produces clean, wide-range output with minimal distortion and excellent projection, rated for 150W continuous / 600W peak power handling.
Does the speaker include mounting hardware?
Yes, the Control 68HP ships with two complete suspension cable systems and 4.5-meter high-tensile galvanized steel wire rope for secure overhead installation, plus a safety cable for redundancy.
