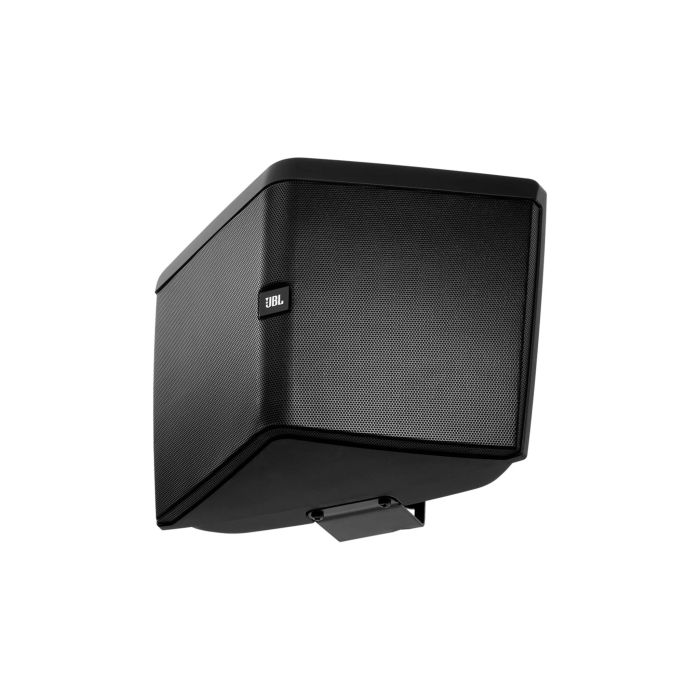

JBL Control Hst 5.25" Wide Coverage On-wall Speaker, Blk

JBL Control HST 5.25" Wide Coverage On-Wall Speaker, Black

The JBL Control HST is a compact, high-output on-wall speaker built for live sound and installed applications where wide coverage and consistent intelligibility are non-negotiable. Its horizontal splayed tweeter design and ceramic metal matrix woofer deliver articulate midrange and extended treble across a generous 180° horizontal pattern, making it ideal for venues, retail spaces, hospitality environments, or any installation where strategic wall placement replaces traditional ceiling-mounted solutions and dependable coverage is critical.

Coverage & Acoustic Performance

The dual 0.75" horizontally-splayed tweeters and 5.25" CMMD woofer produce 88 dB sensitivity with a maximum SPL of 108 dB at 1 meter (peaks reaching 114 dB), ensuring intelligible speech and music reproduction across a 180° horizontal by 160° vertical coverage pattern. The 1.6 kHz crossover and 50 Hz to 20 kHz frequency response provide smooth tonal balance without the coloration or midrange mudiness that undermines clarity in live sound work.

Integration & Reliability

Built into a compact 362 x 256 x 184 mm ABS enclosure with a rugged aluminum grille, the Control HST mounts securely to walls using the included color-matched U-bracket and withstands the demands of touring and permanent installations alike. The integrated 60W transformer with 70/100V and 8-ohm configurations eliminates the need for external crossovers, while 100W power handling and removable locking euro-block connectors integrate seamlessly into larger system designs and field setups. IP54 and Mil-Std-810 environmental ratings ensure reliable performance in venues with moisture, temperature swings, or challenging environmental conditions.

Key Features

• 5.25" woofer with CMMD ceramic metal matrix diaphragm
• Dual 0.75" fluid-cooled tweeters, horizontally splayed
• 100W power handling capability
• Integrated 60W multi-tap transformer with 70/100V and 8-ohm system configurations
• 88 dB sensitivity (Ave. 80 Hz – 20 kHz)
• Maximum SPL 108 dB at 1m direct 8Ω (peaks 114 dB)
• Frequency response 50 Hz to 20 kHz (–10 dB)
• 180° H x 160° V coverage angle at 1–2 kHz
• 1.6 kHz crossover, 3rd order high-pass / 2nd order low-pass
• IP54 and Mil-Std-810 environmental ratings for water and humidity resistance
• Removable locking euro-block 4-pin connectors with screw-down terminals
• Includes color-matched wall-mounting U-bracket

The Control HST combines rugged construction, flexible system integration, and genuinely wide coverage to deliver reliable performance in demanding live and installed applications.
