Description

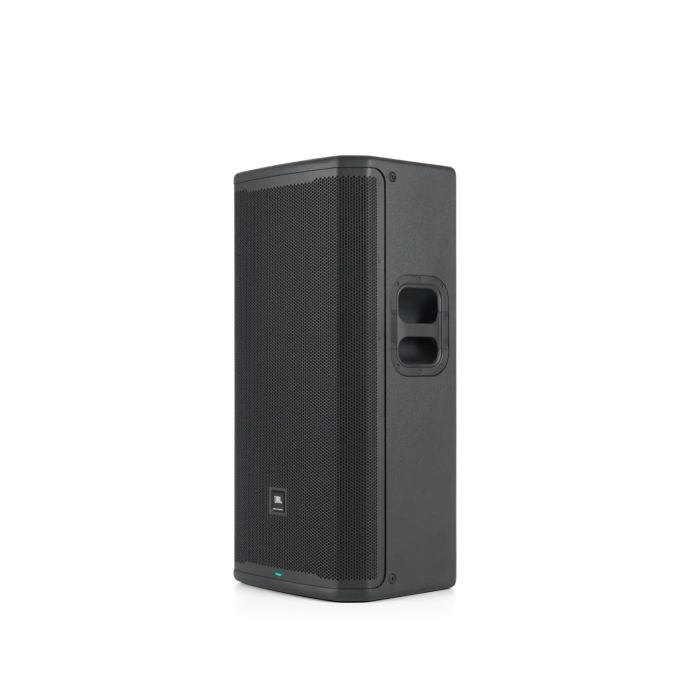

JBL PRX935 3-Way Powered Loudspeaker
The JBL PRX935 is a compact yet powerful 3-way active speaker engineered for touring, live sound reinforcement, and high-output venue applications. Its ergonomic trapezoidal cabinet and integrated handles make it manageable for two-person transport, while the onboard amplification and versatile connectivity eliminate the need for external amps and outboard processing.
Audio Performance & Amplification
2,000 watts peak (1,000 watts RMS) of Class D amplification delivers clean, efficient power with a maximum SPL of 136.1 dB, capable of filling large rooms and outdoor venues. The 90° x 50° dispersion pattern provides controlled coverage, while frequency response spanning 40 Hz–20 kHz (@4π, -10 dB) ensures articulate mids and highs without sacrificing low-end punch.
Design & Transducer Engineering
The 3-way driver complement pairs a 916G 15" ferrite magnet woofer for deep bass with a 196H 6" ferrite magnet transducer and JBL 2408H-2 1.5" poly-annular diaphragm compression driver for crisp upper frequencies. The 18 mm birch cabinet with optimized bracing minimizes resonance and maintains structural integrity under demanding transport and repeated deployment.
Key Features
- 2,000 watts peak / 1,000 watts RMS Class D amplification
- Maximum SPL of 136.1 dB
- Frequency response: 40 Hz–20 kHz (@4π, -10 dB); 46 Hz–18 kHz (@4π, -3 dB)
- 90° x 50° dispersion pattern
- 3-way transducer design: 15" woofer, 6" midrange, 1.5" compression driver
- 18 mm birch cabinet with optimized bracing
- Dual XLR-1/4" combo inputs and dual XLR outputs plus XLR mix out
- 12-band parametric EQ with integrated dbx Automatic Feedback Suppression
- Bluetooth Low Energy (BLE) app control via JBL Pro Connect
The PRX935 handles the demands of touring musicians, sound engineers, and venue operators who need a reliable, self-contained system for consistent performance across clubs, theaters, and portable touring scenarios.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL PRX935 is a compact 3-way powered PA speaker delivering 1,000 watts RMS and 136.1 dB SPL, designed for touring bands, venue reinforcement, and festivals. Built with a 15" woofer, 6" mid, and 1.5" compression driver in a road-tough birch cabinet, it handles the demands of repeated setup and transport without external amplification. Choose it for tight low-end punch, articulate mids, and controlled 90° x 50° dispersion that works equally well in clubs or outdoor rigs.
Who This Is For
Great for
- ✓ Live Performance
- ✓ touring
- ✓ venue reinforcement
- ✓ festivals
Not the best pick for
- – home recording
- – intimate acoustic performance
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What is the maximum SPL and will it fill a large venue?
The PRX935 delivers a maximum SPL of 136.1 dB with 1,000 watts RMS of Class D amplification. It is engineered for venue reinforcement ranging from small clubs and mid-sized theaters to portable touring applications, making it suitable for filling large rooms and outdoor venues.
What connectivity options and onboard processing are included?
The PRX935 includes dual XLR-1/4" combo inputs and dual XLR outputs plus an XLR mix out, so no external amplifier is required. Onboard features are a 12-band parametric EQ, integrated dbx Automatic Feedback Suppression, and Bluetooth Low Energy app control via JBL Pro Connect for wireless adjustments.
How portable is the PRX935 for touring and transport?
The ergonomic trapezoidal cabinet with integrated handles is designed for manageable two-person transport, while the 18 mm birch construction with optimized bracing maintains structural integrity under repeated deployment and the rigors of touring.
What is the driver configuration and frequency response?
The 3-way design pairs a 916G 15" ferrite magnet woofer for deep bass, a 196H 6" ferrite magnet transducer for midrange articulation, and a JBL 2408H-2 1.5" poly-annular diaphragm compression driver for crisp highs. Frequency response spans 40 Hz–20 kHz at -10 dB, with a 90° x 50° dispersion pattern for controlled coverage.
Is the PRX935 suitable for smaller venues or intimate settings?
The PRX935 is engineered for touring, live sound reinforcement, and high-output venue applications; it is not recommended for intimate acoustic performance or home recording due to its 136.1 dB maximum SPL and powerful amplification.
