JBL NCSM28-U-US Networked Control and Status Module

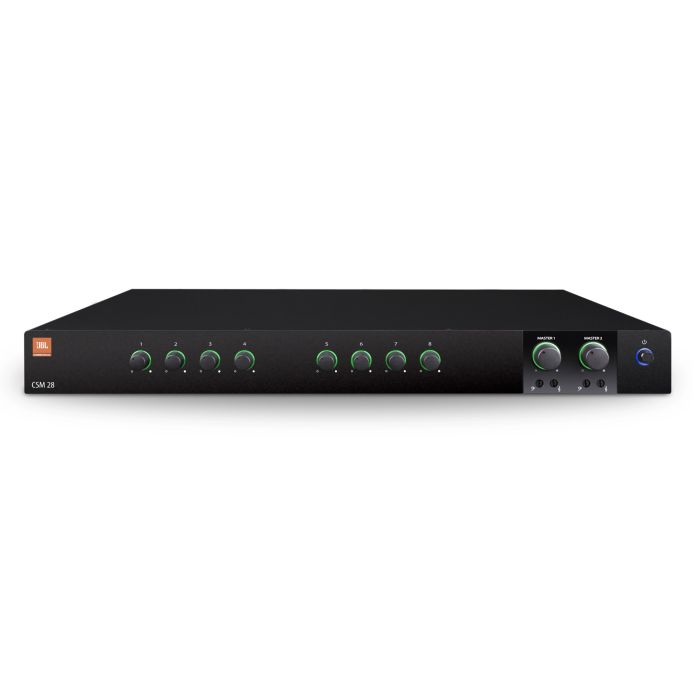

The NCSM28-U-US is a professional-grade control and mixing interface built for installed audio systems and networked environments. This compact 1U rack unit delivers transparent audio processing with minimal latency, making it essential for commercial installations, conference systems, and distributed audio networks that demand reliability and clean signal management.

Audio Performance & Signal Integrity

The unit maintains exceptional audio fidelity across the entire audible spectrum with frequency response of 20–20,000 Hz ±1 dB and total harmonic distortion of just 0.05%. A signal-to-noise ratio exceeding 90 dB ensures clean audio paths even in noise-sensitive applications, while ±10 dB tone controls at 100 Hz and 10,000 Hz provide practical EQ adjustment for room compensation and source matching.

Connectivity & Installation

Eight independent inputs and two outputs accommodate flexible routing configurations using Euroblock connectors for balanced mic/line connections, unbalanced RCA inputs, and RJ45 connectors compatible with CSR-V in-wall volume controls. The fanless design and minimal 10W power consumption make this unit ideal for retrofit installations and spaces where acoustic silence is required.

Key Features

• 8 inputs, 2 outputs with independent control
• Frequency response: 20–20,000 Hz ±1 dB
• Total harmonic distortion: 0.05% typical
• Signal-to-noise ratio: >90 dB
• Input impedance: Mic 400Ω, Line 20kΩ, RCA 50kΩ
• Dual tone controls: Bass ±10 dB at 100 Hz, Treble ±10 dB at 10,000 Hz
• Line output level: 5.0 V RMS into 10 kOhms
• Euroblock, RCA, and RJ45 connector options
• Phantom power supply: +27 VDC
• Universal power supply: 100–240 VAC, 50/60 Hz
• Fanless 1U full-rack form factor: 17.2" × 11.9" × 1.7"
• RoHS compliant and GreenEdge certified

The NCSM28-U-US combines straightforward interface design with transparent audio processing, making it a dependable control point in professional networked audio installations.
