JBL NCSMA2120-U-US
Description

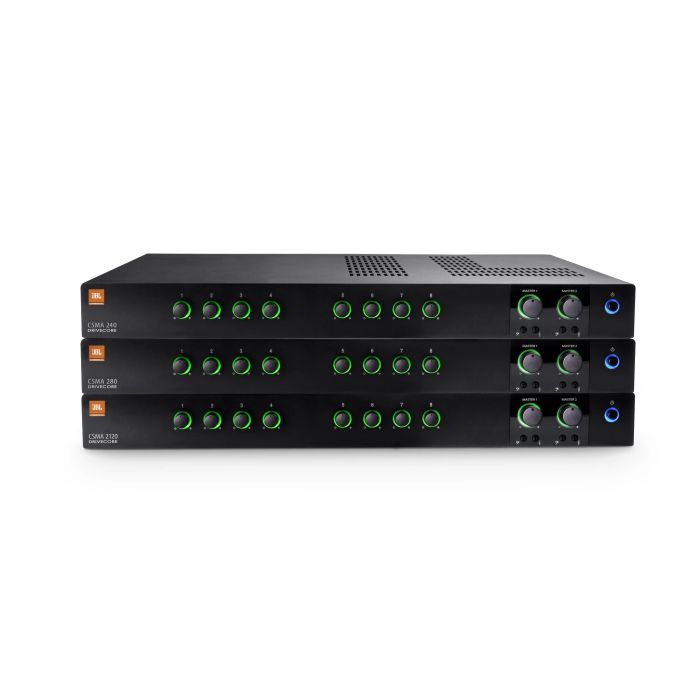

JBL NCSMA2120-U-US Commercial Mixer/Amplifier
The NCSMA2120-U-US is a compact, fanless 1U rack-mount mixer-amplifier purpose-built for venues, installations, and live sound systems that need reliable amplification without excess heat or noise. Its efficient Crown DriveCore technology delivers substantial power in a minimal footprint, making it essential for touring support systems, fixed installations, and small-to-medium venue reinforcement where dependability matters.
Power & Connectivity
This unit generates 240W RMS output power with the capacity to drive 8 ohm and 4 ohm loads, as well as 70V and 100V distributed audio systems without requiring a separate transformer. Eight mixer-channel inputs with balanced mic/line and unbalanced RCA options, combined with RJ45 connectors for JBL CSR-V in-wall volume controls, provide flexible routing for multi-zone installations and remote level management from the stage or FOH position.
Control & Efficiency
Individual volume controls for each channel, independent master volume adjustment, and dedicated bass and treble controls give sound engineers precise sonic shaping and real-time response across the system. The universal power supply accepts 100–240 VAC at 50/60Hz, ensuring compatibility whether you're running a permanent install or loading gear into different venues worldwide.
Key Features
- 240W RMS output power
- Eight mixer-channel inputs with two output channels
- 1U rack-mount form factor, fanless design
- Balanced mic/line inputs and unbalanced RCA inputs
- Compatible with 8 ohm, 4 ohm, 70V, and 100V loads
- RJ45 connectors for JBL CSR-V in-wall volume controls
- Crown DriveCore technology for efficiency and compact size
- Universal power supply (100–240 VAC, 50/60Hz)
- Individual channel volume controls with master adjustment
- Bass and treble tone controls
- Lead-free RoHS compliance with recycled materials
The NCSMA2120-U-US combines professional-grade amplification, intuitive mixing control, and architectural integration capabilities in a road-ready, space-efficient package built to commercial standards for dependable live and installed sound.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL NCSMA2120-U-US is a 1U rack-mount mixer-amplifier delivering 240W RMS through Crown DriveCore technology in a fanless, compact design ideal for installing background music, small-to-medium venues, and multi-zone distributed audio without a separate transformer. Built for sound techs and venue operators who need reliable, flexible amplification that handles 8/4 ohm speakers and 70V/100V systems from a single unit. Choose it for retrofit projects, commercial spaces, and installations where space, low noise, and straightforward channel mixing matter more than touring mobility or main-stage power.
Who This Is For
Great for
- ✓ Commercial installations
- ✓ Background music systems
- ✓ Small-to-medium venue audio
- ✓ Distributed audio systems
- ✓ Retrofit projects
Not the best pick for
- – High-power main PA
- – Mobile DJ touring
- – Live concert reinforcement
Skill level: Beginner · Intermediate · Advanced · Professional
Frequently Asked Questions
What power output does this mixer-amp deliver, and what speakers can it drive?
The NCSMA2120-U-US produces 240W RMS and is compatible with 8 ohm, 4 ohm, 70V, and 100V distributed audio systems—no external transformer required. It handles both standard passive speakers and commercial in-wall or ceiling installations.
How many inputs and outputs does it have, and what types?
Eight mixer-channel inputs with balanced XLR/TRS mic/line connectors and unbalanced RCA options, plus two output channels and RJ45 ports for JBL CSR-V in-wall volume controls. Each input has individual volume control, and there's a dedicated master volume plus bass and treble EQ.
Is this suitable for live concert reinforcement or touring?
No—the NCSMA2120-U-US is designed for fixed commercial installations, background music systems, and small-to-medium venues, not mobile DJ touring or high-power main PA applications.
Why does it have a fanless design, and what does that mean?
The fanless, fanless 1U form factor uses Crown DriveCore technology to deliver efficiency and low noise operation, making it ideal for installations where silent operation matters—such as retail, offices, and broadcast environments.
Will it work with different AC power standards worldwide?
Yes—the universal power supply accepts 100–240 VAC at 50/60Hz, so it operates in any country without a separate voltage converter.
