JBL SRX906LA AF Array Frame
Description
JBL SRX906LA AF Array Frame

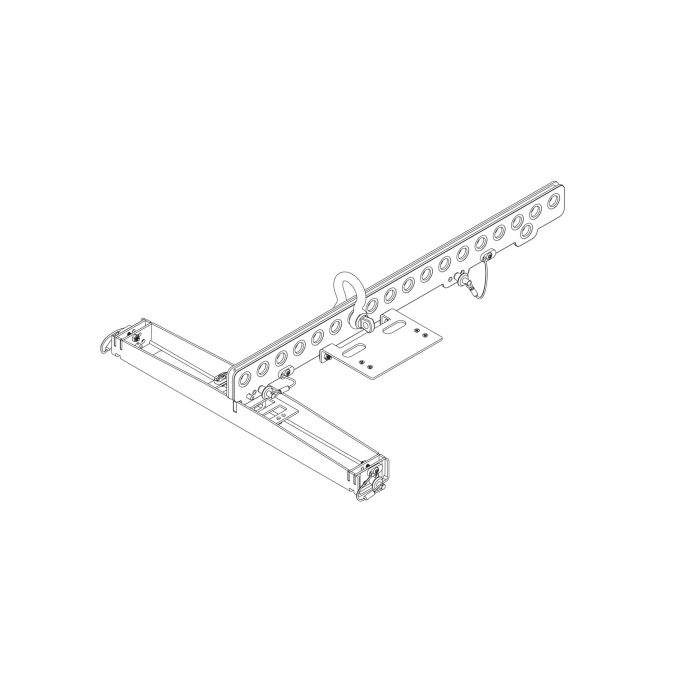

The SRX906LA AF Array Frame is a professional rigging solution built for sound engineers and system operators running large-scale line array deployments. Its lightweight yet robust construction and intuitive two-piece design allow fast setup and adjustment at load-in, while precision aiming capabilities ensure consistent coverage across any venue layout.
Build & Rigging Architecture
Constructed from high-grade steel with anti-corrosion black powder coat finish, this frame survives the rigors of touring and permanent installation. The two-piece collapsible design—comprising an extension bar and spreader bar with three connection points—packs down quickly for transport and storage without losing structural integrity or alignment precision.
Aiming Flexibility & Load Capacity
The extension bar accommodates both uptilt and downtilt positioning, giving you exact vertical aiming to match room geometry and acoustics. The frame safely supports up to 14 SRX906LA cabinets at rated capacity, with a maximum structural limit of 16 units, while the integrated laser attachment bracket accepts third-party inclinometers for verified angle setup.
Key Features
- High-grade steel construction with anti-corrosion black powder coat
- Two-piece design with extension and spreader bar for compact storage
- Extension bar adjusts to front or rear for uptilt and downtilt aiming
- Three connection points for secure bar attachment
- Laser attachment bracket for third-party inclinometers
- Compatible with SRX906LA and SRX915SF cabinets
- 1/2-inch compatible shackle size
- Safe load limit: 14 SRX906LA cabinets; maximum structural limit: 16 units
- Compact dimensions: 100 mm H × 488 mm W × 655 mm D (3.9" × 19.2" × 25.8")
- Net weight: 4.1 kg (9 lbs); shipping weight: 5.0 kg (11 lbs)
This frame delivers the rigging precision and durability that touring and installed system operators need for reliable line array deployment.
