What is a line array speaker, and why would I use it instead of conventional PA boxes?

A line array stacks acoustic elements vertically to control directional coverage and minimize reflections from walls and ceilings, making it ideal for touring and large venues where consistent sound across a wide audience area is critical. The SRX910LA's trapezoidal profile and 105-degree coverage pattern allow multiple units to be rigged or ground-stacked to create seamless, high-SPL reinforcement without dead zones.

Do I need external amplifiers or processors with the SRX910LA?

No. The SRX910LA is a powered speaker with an integrated 600-watt Class-D amplifier and 24 adjustable DSP filters onboard, so you connect audio sources directly and tune the system via Ethernet control without outboard gear.

How much does each unit weigh, and what are the rigging requirements?

Each SRX910LA weighs 59 lbs and measures 12 × 28.2 × 20.5 inches, with four integral recessed handholds designed for secure transport and rigging. Its compact footprint and lightweight design make it practical for touring applications, though proper rigging hardware and flying points are required for suspended array installations.

What frequency range and maximum SPL does the SRX910LA cover?

The SRX910LA covers 53 Hz–19 kHz (–10 dB in array preset) and delivers a maximum SPL of 135 dB, making it suitable for mid-to-large venue applications where high-impact reinforcement is needed.

Can I network and control multiple SRX910LA units remotely?

Yes. The SRX910LA features dual Neutrik etherCON Ethernet ports for networking and remote control, plus 2,000 ms of digital delay per unit for time-aligning multiple arrays across your venue.

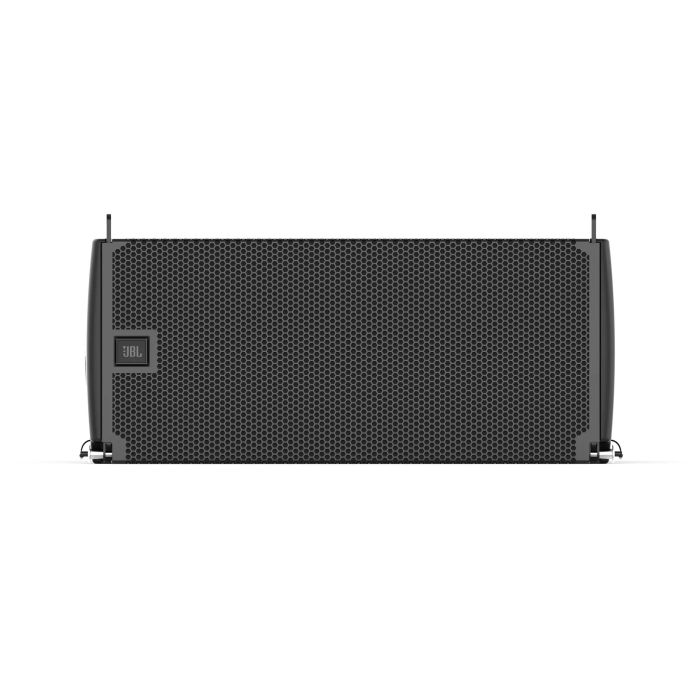

JBL SRX910LA Powered Line Array Speaker

The SRX910LA is a compact, high-output line array element built for touring and installation work where consistent coverage and reliable amplification are non-negotiable. Its trapezoidal profile and recessed handholds make it practical to rig and transport, while the integrated Class-D amplification eliminates the need for external processing. Designed for sound engineers and system designers who need professional results without compromise.

Audio Performance & Coverage

This two-way active speaker delivers 135 dB maximum SPL with 600 watts continuous power (400W LF, 200W HF), making it suitable for mid-to-large venue applications. The 105-degree nominal coverage pattern and 53 Hz–19 kHz frequency range ensure consistent output across the audience area with minimal dead zones or reflective artifacts.

Design & Build

The SRX910LA combines durable polypropylene construction with an aluminum baffle and internal plywood bracing, weighing only 59 lbs per unit while maintaining rigid acoustic performance. Its compact footprint (12.0 in H × 28.2 in W × 20.5 in D) and integrated recessed handholds streamline rigging and stacking in both ground-stacked and suspended array configurations.

Key Features

Two JBL 261G-1 10-inch LF drivers with dual 2.0-inch voice coils and neodymium Differential Drive
One JBL 2432H-3 compression driver with 1.5-inch exit and 3-inch neodymium voice coil
600 watts continuous power (400W low-frequency, 200W high-frequency)
Class-D amplifier design for efficient thermal performance and compact electronics
135 dB maximum SPL for high-impact reinforcement applications
24 adjustable DSP filters for precise tonal shaping and system tuning
2,000 ms of digital delay for time-aligning multiple arrays
Dual Neutrik etherCON Ethernet ports for networking and remote control
Polypropylene enclosure with aluminum baffle and plywood internal bracing
Four integral recessed handholds for secure transport and rigging
26.7 kg (59 lbs) per unit for manageable load handling
Frequency range of 53 Hz–19 kHz (–10 dB in array preset configuration)

The SRX910LA delivers the sonic authority and system flexibility that professional touring and installation environments demand.
