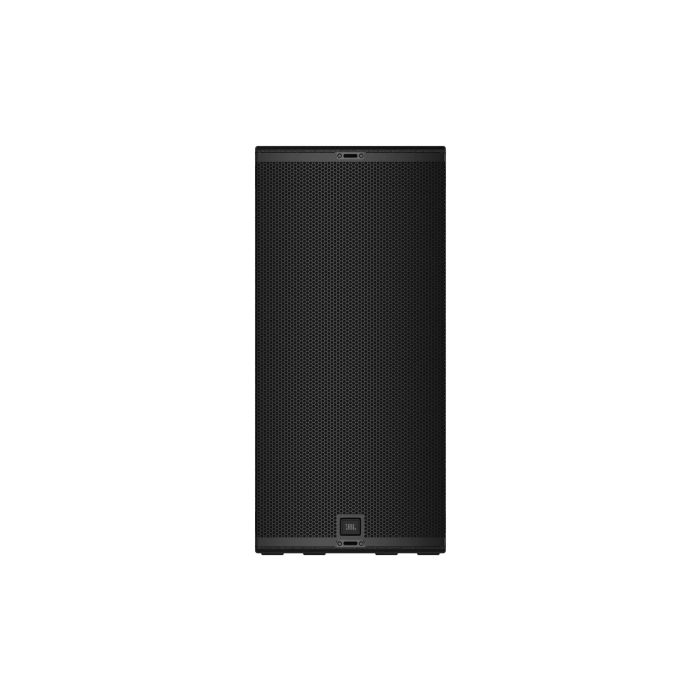

JBL SRX922 Powered Point-source Speaker
Description
JBL SRX922 Powered Point-source Speaker
The SRX922 is a compact yet authoritative powered speaker built for touring, installed sound, and live event applications where consistent coverage and reliable amplification are non-negotiable. Its point-source architecture and thoughtful suspension design make it equally at home as a main or fill speaker in mid-to-large venue setups. Built on JBL Professional's proven engineering standards, this speaker delivers professional output with straightforward setup and network integration for sound crews who need dependable gear night after night.
Audio Performance & Coverage
Peak output of 138 dB SPL with integrated 1100W continuous Class-D amplification (550W LF / 550W MHF) cuts through the room and reaches the back rows without strain. The three-way acoustical design—dual 12-inch low-frequency drivers, single 6-inch midrange, and compression driver tweeter—maintains clarity and punch from 48 Hz to 17 kHz, with precise 90° × 60° coverage pattern ensuring even sound distribution without hot spots or dead zones across the stage and floor.
Road-Ready Design & Build
Constructed from exterior-grade birch plywood with durable DuraFlex finish, the SRX922 weighs 45.5 kg (100 lbs) and measures 944 × 440 × 505 mm—practical dimensions for transport between venues and rigging on truss or stands. Eight QuickLink M10 suspension points speed up load-in and system setup, while the powder-coated steel grille with acoustically transparent backing protects drivers without compromising tonal integrity through weeks of touring.
Key Features
- Dual JBL 2273G 12-inch low-frequency drivers with dual 3.0-inch voice coils
- Single JBL 196H-1 6-inch midrange driver with 1.5-inch voice coil
- JBL 2408H-1 1-inch neodymium compression driver with 1.5-inch voice coil
- Class-D amplification: 1100W continuous (peak 1600W)
- Maximum peak output: 138 dB SPL
- Frequency range: 48 Hz–17 kHz (−3 dB)
- Coverage pattern: 90° horizontal × 60° vertical
- IP54 environmental rating (IEC 60529)
- TCP/IP networking via Harman HControl protocol with dual etherCON ports
- Eight QuickLink M10 rigging suspension points
- 100–240 VAC, 50/60 Hz power input with convection cooling and on-demand fan
- Exterior-grade birch plywood with DuraFlex finish
The SRX922 combines compact form factor with touring-grade durability and sufficient output for professional installations, backed by JBL's reputation for consistent acoustic performance that sound engineers and touring operators trust.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL SRX922 is a compact yet powerful three-way powered speaker that punches out 138 dB SPL with integrated 1100W Class-D amplification, making it a workhorse for touring, installed sound, and mid-to-large venue PA systems. Its point-source architecture and 90° × 60° coverage pattern deliver even, commanding sound from 48 Hz to 17 kHz without hot spots—a critical advantage for road reliability and consistent performance night after night. Built from exterior-grade birch with eight QuickLink M10 rigging points and IP54 rating, the SRX922 handles the demands of truss installation and venue setups while maintaining the clarity and punch live audiences expect.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Tour Sound
- ✓ Large Venue PA
- ✓ Installed Sound Systems
Not the best pick for
- – Home Studio Monitoring
- – Small Venue Intimate Settings
Skill level: Professional
Frequently Asked Questions
What does the 138 dB SPL output and 1100W amplification tell me about this speaker's capability?
The SRX922 delivers 138 dB peak SPL with continuous 1100W Class-D amplification (550W low-frequency, 550W mid-high-frequency), providing commanding presence and sufficient headroom for mid-to-large venue PA systems and touring applications without external amplification.
How is the SRX922 designed for even coverage in large spaces?
Its point-source architecture and precise 90° horizontal × 60° vertical coverage pattern eliminate hot spots and dead zones, ensuring consistent sound distribution across diverse venue layouts.
What makes this speaker tour-proof?
The SRX922 is built from exterior-grade birch plywood with a durable DuraFlex finish, weighs 100 lbs for practical transport, and features IP54 environmental rating (IEC 60529) for protection against dust and moisture—key factors for road reliability and rigging in installed systems.
What networking and control features does it offer?
The SRX922 integrates TCP/IP networking via Harman HControl protocol with dual etherCON ports, allowing remote control and monitoring from a mixing console or control system—essential for complex installed sound systems.
Is the SRX922 suitable for small venues or intimate settings?
No—its 138 dB peak output and three-way design are optimized for mid-to-large venue PA and touring applications; smaller spaces would be better served by lower-output models to avoid excessive sound pressure.
