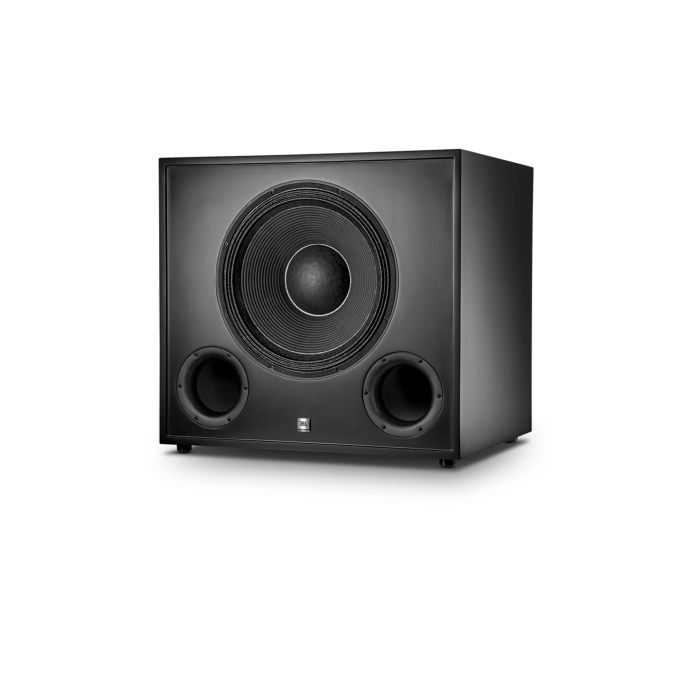

JBL SUB18 SUB18 Studio Subwoofer

JBL SUB18 Studio Subwoofer

The JBL SUB18 is a professional-grade studio subwoofer engineered to anchor monitoring systems in control rooms, mastering suites, and serious mixing environments. Its massive 18-inch driver and rock-solid cabinet deliver the low-frequency extension and output capability demanded by sound engineers and mix professionals working with music, film, and broadcast content. This is purpose-built monitoring equipment designed to reveal what's actually happening below 25 Hz—essential for mix decisions that translate across all playback systems.

Subwoofer Performance

The SUB18 extends response down to 20.6 Hz at -10 dB and 23.1 Hz at -6 dB, providing the deep low-frequency articulation critical for mix translation and accurate monitoring. With a maximum peak output of 137 dB SPL and 2000W continuous power handling (8000W peak), this subwoofer delivers powerful, controlled bass reproduction across the full monitoring range without compression or distortion—reliable day after day in professional facilities.

Construction & Integration

The enclosure is fabricated from 18mm 11-ply Baltic birch plywood with a professional black lacquer finish, engineered for rigid performance and isolation from cabinet resonance. Push-terminal connectivity and a recommended amplifier power rating of 3,500–4,000W into 8 ohms ensure straightforward integration into existing studio monitoring chains and sound systems.

Key Features

• Single JBL 2269H 18-inch driver with dual 100mm voice coils and dual neodymium magnets
• In-room frequency response extends below 18 Hz
• Frequency response -10 dB: 20.6 Hz
• Frequency response -6 dB: 23.1 Hz
• Maximum peak output: 137 dB SPL
• System input power: 2000W continuous / 8000W peak
• Sensitivity: 92 dB @ 1m, 2.83 V
• 18mm 11-ply Baltic birch construction with black lacquer finish
• Dimensions: 27 x 30 x 24 inches
• Weight: 100 lbs
• Push-terminal connectivity for 12-gauge wire
• Recommended amplifier power: 3,500–4,000W into 8 ohm

The SUB18 combines transparent low-frequency extension, massive output capacity, and professional construction to function as the foundation of a serious monitoring environment and a dependable workhorse in any mixing, mastering, or live-sound setup.
