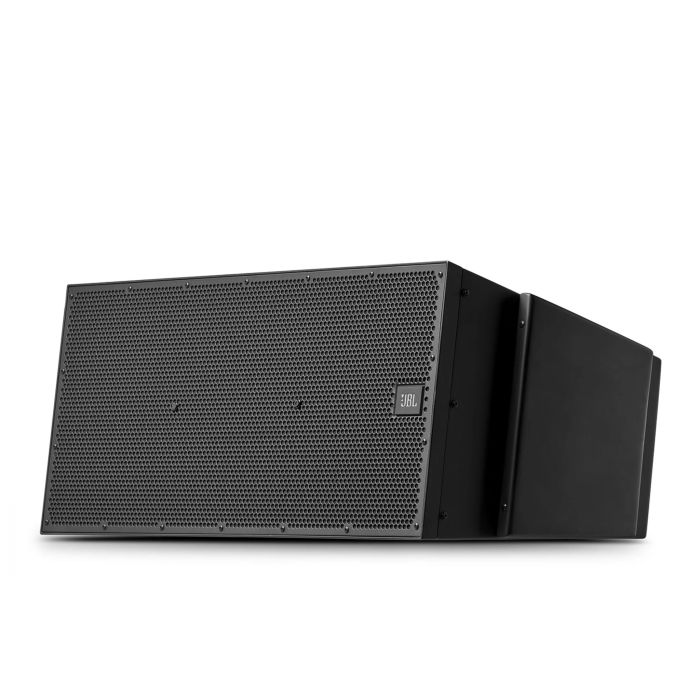

JBL VLA-C2100-BK Two-Way Horn-Loaded Line Array System

The VLA-C2100-BK is a compact, high-output line array element purpose-built for touring rigs and permanent installations where consistent coverage and road reliability matter. Its horn-loaded design delivers controlled directivity and efficient acoustic output across mid to large venues, with a rugged construction engineered to survive demanding touring and outdoor conditions.

Coverage & Acoustic Design

The 100° horizontal horn coverage pattern locks in consistent sound distribution across the listening area with minimal off-axis coloration—critical for coverage in complex room shapes and outdoor terrain. The dual-driver low-frequency section paired with three high-frequency drivers optimizes phase alignment between frequency bands, yielding smooth crossover performance and articulate vocal and instrument clarity on stage and in the audience.

Build & Environmental Rating

Multi-layer reinforced fiberglass construction combined with zinc-plated, powder-coated 14-gauge steel grilles and hydrophobic mesh underlayers ensures extended durability through touring schedules, outdoor festivals, and harsh indoor environments. The IP-55 rating per IEC529 certifies protection against dust ingress and direct water jets, making this system road-ready for mobile rental fleets or semi-permanent outdoor venue deployments.

Key Features

• Dual 2261 10" Differential Drive 3" voice coil low-frequency drivers
• Three D2415 high-frequency drivers with 1.5" annular diaphragms and neodymium motors
• 100° horizontal horn-loaded coverage pattern
• Bi-amp or passive operation with field-switchable configuration
• Multi-layer reinforced fiberglass and steel end-panel construction
• Zinc-plated, powder-coated 14-gauge perforated steel grilles
• Acoustically transparent black grill cloth with hydrophobic mesh underlayer
• Waterproof rail system for secure array rigging
• IP-55 environmental rating (dust and water jet protected)
• CE-compliant covered barrier strip terminals accepting up to 10 AWG wire or 0.375" spade lugs
• Dimensions: 381 x 848 x 460 mm (H x W x D)
• Black finish

This system combines professional-grade component drivers, proven line array geometry, and rugged environmental protection to deliver reliable performance across touring, festival, and permanent installation contexts.
