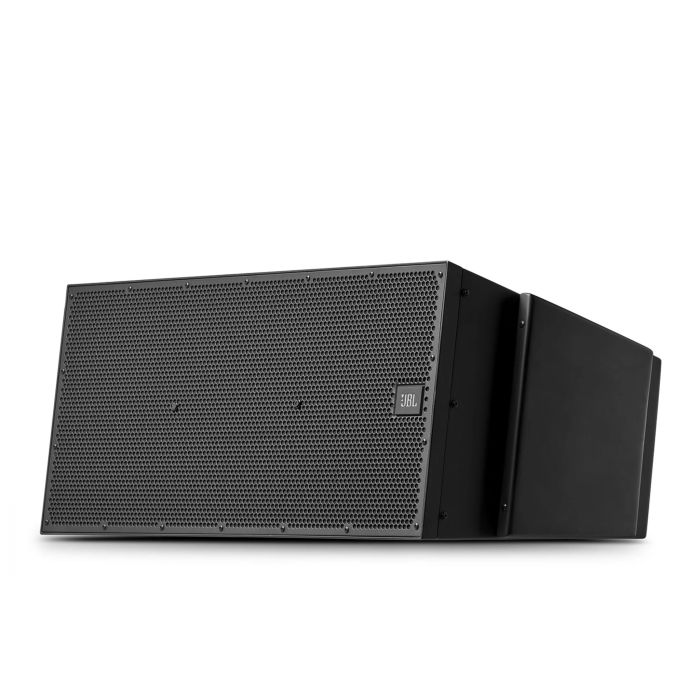

JBL VLA-C2100-GR Two-Way Horn-Loaded Line Array System

The VLA-C2100-GR delivers precise, controlled directivity in a compact form factor designed for touring and installation work. This horn-loaded line array system excels at maintaining consistent coverage across venues where tight horizontal control and high output are essential requirements.

Coverage & Output Performance

The system achieves a maximum SPL of 137 dB peak at 1 meter with 100-degree horizontal coverage, allowing controlled sound throw without excessive off-axis spillage. This combination makes the VLA-C2100-GR effective for medium-sized venues and outdoor installations where boundary control matters.

Design & Build Quality

Construction centers on multi-layer reinforced fiberglass with steel end-panels and an IP55-rated enclosure that resists moisture and dust ingress. The zinc-plated, powder-coated 14-gauge perforated steel grille with hydrophobic mesh underlayer and waterproof rail system ensures durability across indoor and outdoor deployments.

Key Features

• Three D2415 drivers with 1.5" diameter annular diaphragms and neodymium motors for high-frequency reproduction
• Dual 2261 10" Differential Drive 3" voice coil drivers for low-frequency output
• 800W passive 2-way configuration
• Horn-loaded design for maximum sensitivity and optimum pattern control
• Frequency range (-10dB): 86 Hz – 18 kHz
• Frequency response (±3 dB): 109 Hz – 15.3 kHz
• 100-degree horizontal coverage
• Maximum SPL: 137 dB peak at 1 meter
• Inherent rigging system with selectable inter-box angles for array assembly
• IP55-rated enclosure for environmental resistance
• Multi-layer reinforced fiberglass construction with steel end-panels
• Hydrophobic mesh underlayer and waterproof rail system

The VLA-C2100-GR combines professional-grade construction with reliable rigging integration, making it a dependable choice for sound operators running touring or installation rigs who need predictable coverage, tight pattern control, and road-tested durability.
