JBL VRX-AF Array Frame
Description
JBL VRX-AF Array Frame

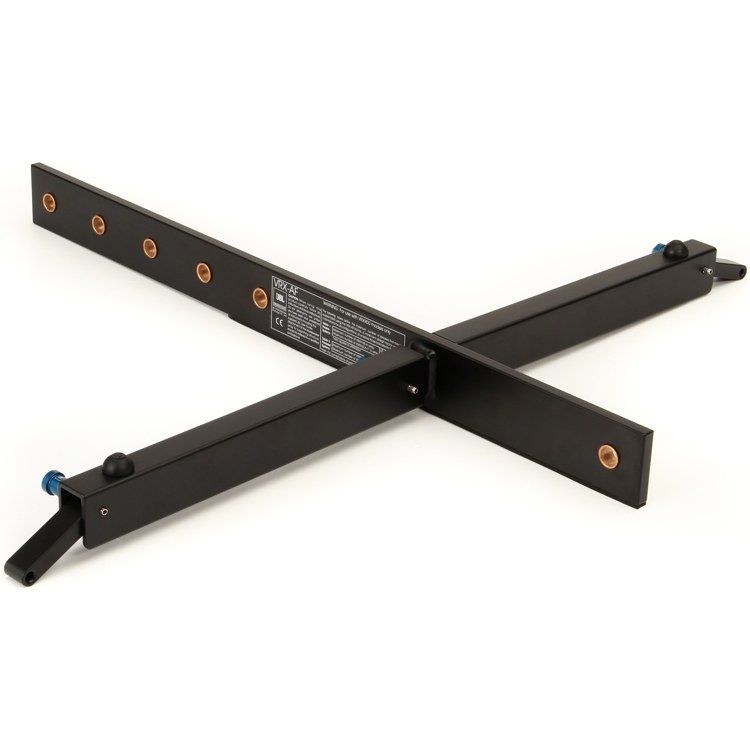

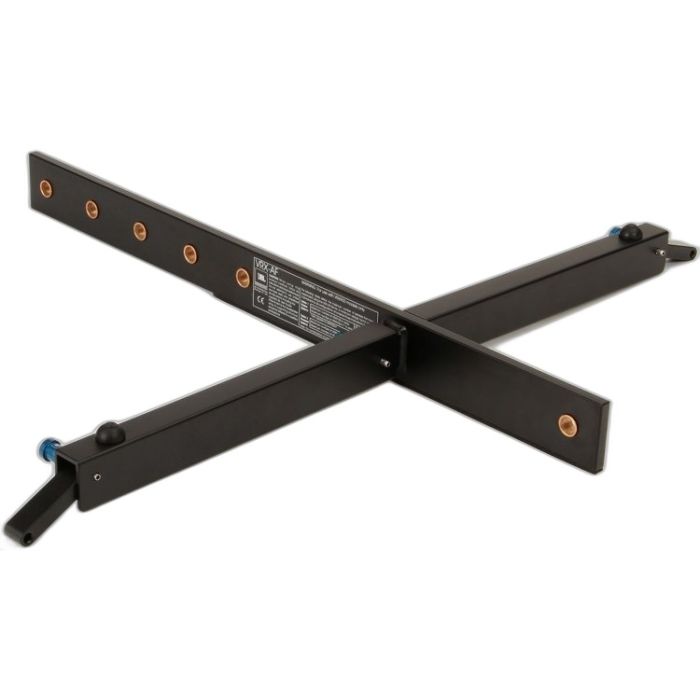

The VRX-AF Array Frame is a precision-engineered rigging solution that handles the mechanical demands of suspending large-format line arrays with confidence and security. Built around quick-release pins and heavy-duty shackles, this frame delivers straightforward, reliable operation in live sound installations where safety and repeatability are non-negotiable.
Rigging & Load Capacity
This frame maintains a minimum design factor of 7:1 across all supported speaker configurations, exceeding industry safety standards. The 520 lb working load limit at a 10:1 design factor ensures substantial headroom for complex array builds without compromise.
Compatibility & Configuration Flexibility
The VRX-AF suspends JBL VRX932LA-1/P and VRX918S/P enclosures in mixed arrays, accommodating up to 6 VRX932LA units or up to 6 VRX918S units in a single frame. Its modular design—center frame with two side arms—adapts to venue-specific line array geometry and acoustic requirements.
Key Features
- Suspends JBL VRX932LA-1/P and VRX918S/P enclosures
- Supports up to 6 VRX932LA-1 enclosures or 6 VRX918S enclosures
- Mixed-array capability with VRX932LA and VRX918S combinations
- 520 lb working load limit at 10:1 design factor
- Minimum 7:1 design factor maintained across all speaker configurations
- Four quick-release pins for fast deployment and strike
- Two 3/8" shackles for secure suspension points
- Two drop levers for controlled rigging adjustments
- Center frame with two side arms for flexible array geometry
- Black powder-coated finish for durability in outdoor and touring environments
The VRX-AF Array Frame delivers the structural integrity and operational simplicity demanded by professional touring and installed sound applications.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL VRX-AF Array Frame is a precision rigging solution engineered to suspend large-format line arrays of JBL VRX932LA and VRX918S speakers with rock-solid safety margins and fast deployment. Built for touring and installed sound where reliability is everything, it holds up to 6 speakers per configuration with a 520 lb working load limit and exceeds industry safety standards with a 7:1 minimum design factor. Choose this frame when your venue or tour demands zero-compromise rigging repeatability and the structural integrity to handle complex array geometries night after night.
Frequently Asked Questions
What speakers does the VRX-AF Array Frame support?
The frame suspends JBL VRX932LA-1/P and VRX918S/P enclosures in mixed or single-type arrays, accommodating up to 6 VRX932LA units or up to 6 VRX918S units per frame.
What is the working load limit and design safety factor?
The VRX-AF maintains a 520 lb working load limit at a 10:1 design factor and upholds a minimum 7:1 design factor across all supported configurations, exceeding industry safety standards.
How fast can this frame be deployed and struck?
Four quick-release pins enable rapid suspension and removal of speakers, making load-in and strike straightforward for touring and one-off installations.
Can the frame adjust for different array geometries?
Yes; the modular design includes a center frame with two adjustable side arms and drop levers for controlled rigging adjustments, allowing you to adapt array angle and configuration to venue acoustics.
Is this frame suitable for outdoor touring?
The black powder-coated finish is engineered for durability in outdoor and touring environments, making it reliable across variable weather and frequent transport.
