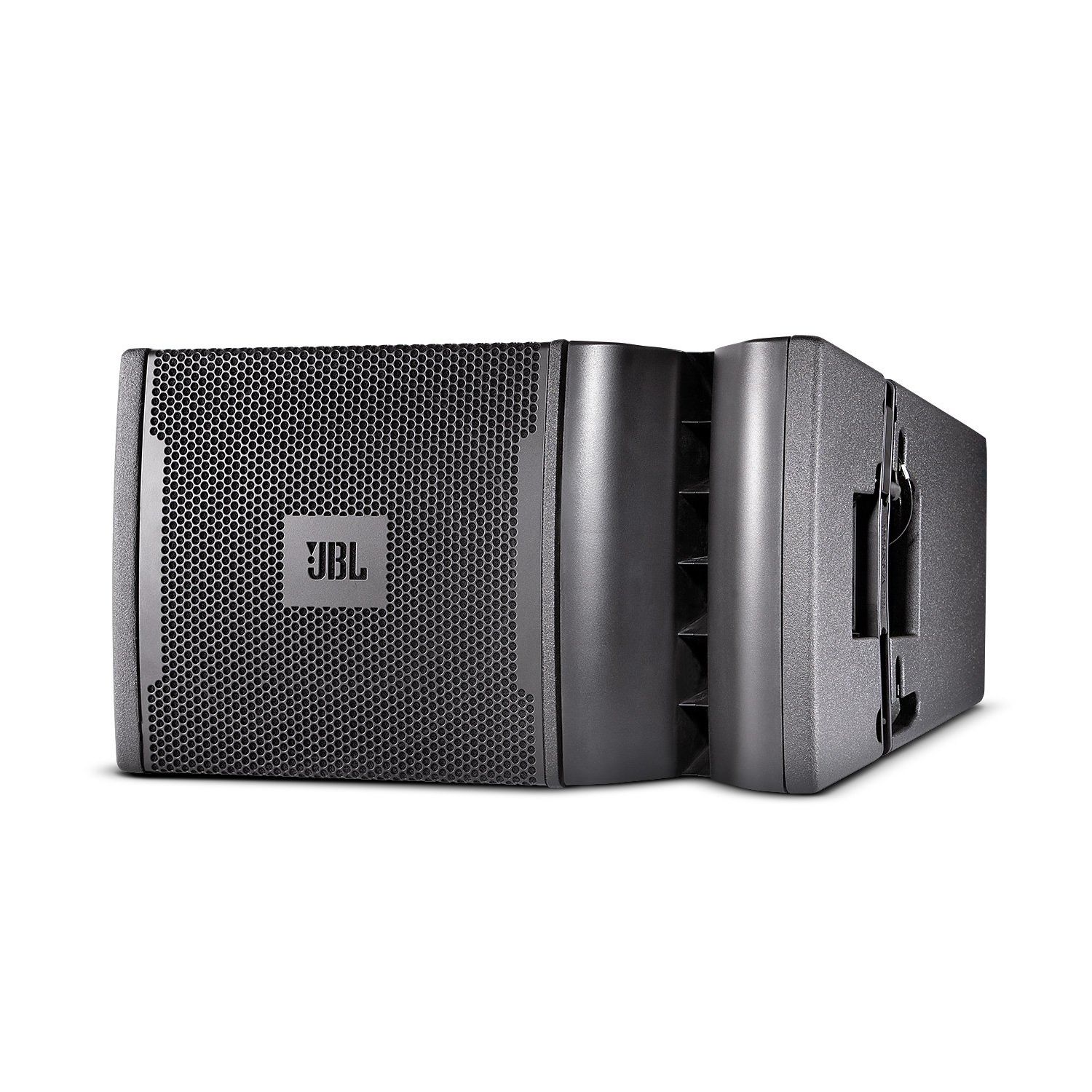

JBL VRX932LA-1 12" Two-Way Line Array Loudspeaker System
In stock
- SKU
- VRX932LA-1
Description
JBL VRX932LA-1 12" Two-Way Line Array Loudspeaker System
The VRX932LA-1 is a professional line array speaker built for touring musicians and sound engineers who demand transparent, punchy midrange that cuts through live settings without coloration. Its compact yet powerful two-way design gives you precise control over sound projection and placement, while the sophisticated driver configuration produces smooth, articulate output across the full frequency spectrum. This system handles modern genres with authority—from crisp vocals in pop and R&B to pristine acoustic detail in classical settings, while delivering the presence that rock, hip-hop, and electronic acts demand on stage.
Design & Build
At 46 lb (21 kg), the VRX932LA-1 strikes the right balance between portability and road-ready construction, featuring dual angle pole socket mounting for flexible aiming and rigging hardware that supports arrays of up to six units flown or mounted on stands. The enclosure houses a JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps paired with three 2408J Annular Ring Diaphragm HF drivers and a Constant Curvature waveguide for unprecedented array coherence and live reliability.
Audio Performance
The VRX932LA-1 delivers 130 dB SPL peak output in passive mode with 95 dB sensitivity (1 watt @ 1 meter), covering a frequency response of 75 Hz–20 kHz (±3 dB) that extends to 57 Hz–20 kHz (–10 dB). Run it passive with 800W/1600W/3200W (Continuous/Program/Peak) power or configure bi-amplified with 800W/1600W/3200W LF and 75W/150W/300W HF—the 1.2 kHz crossover ensures seamless driver integration and stage-ready sonic coherence across the full spectrum.
Key Features
- Compact 12" two-way line array system designed for arrays of up to six units
- 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps
- 3 x 2408J Annular Ring Diaphragm HF drivers
- Constant Curvature waveguide for unprecedented array coherence
- Weight: 46 lb / 21 kg
- Frequency Response: 75 Hz–20 kHz (±3 dB); Range: 57 Hz–20 kHz (–10 dB)
- System Max. SPL: 130 dB peak (passive mode); LF: 130 dB; HF: 139 dB
- System Sensitivity: 95 dB SPL (1 watt @ 1 meter, passive mode)
- Passive Power Rating: 800W / 1600W / 3200W (Continuous / Program / Peak)
- Bi-amp LF: 800W / 1600W / 3200W; Bi-amp HF: 75W / 150W / 300W
- Nominal Impedance: 8 Ohms (Passive, Bi-amp LF, Bi-amp HF)
- Input Connectors: Neutrik Speakon NL-4 (x2); Crossover Frequency: 1.2 kHz
- Dual angle pole socket for aiming flexibility; integral rigging hardware for simple connection and flying arrays
The VRX932LA-1 combines transparent, engaging sound reproduction with the ergonomic flexibility to position it exactly where your stage, venue, or application demands it most.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL VRX932LA-1 is a compact 12" two-way line array speaker delivering 130 dB peak SPL with punchy midrange clarity and smooth high-end presence across pop, rock, R&B, hip-hop, and classical applications. Built for touring and venue sound, its 46 lb weight and dual-angle rigging make it road-ready for flying or stand-mounting up to six units in tight or demanding spaces. Choose it when you need professional authority, array coherence, and the flexibility to dial in sound placement from intimate clubs to high-energy stages.
Frequently Asked Questions
Can I use a single VRX932LA-1 speaker, or do I need to array multiple units?
The VRX932LA-1 is designed as a line array component and works best when up to six units are flown or stand-mounted together for coherent sound projection and coverage. A single unit can be used, but the system reveals its full potential—array coherence, even coverage, and phase integration—when deployed as intended.
What amplifier power do I need?
In passive mode, the system accepts 800W continuous / 1600W program / 3200W peak. For bi-amplified operation, the low-frequency drivers require 800W / 1600W / 3200W and the high-frequency drivers require 75W / 150W / 300W. All inputs are Speakon NL-4 connectors.
What frequencies does it handle?
The VRX932LA-1 covers 75 Hz–20 kHz (±3 dB) in normal operation, with extended range reaching 57 Hz–20 kHz (–10 dB). The 1.2 kHz crossover seamlessly blends the 12" woofer and three HF drivers across the spectrum.
How much does it weigh, and is it portable?
At 46 lb (21 kg) per unit, the VRX932LA-1 balances solid construction with portability. Integral rigging hardware and dual-angle pole sockets allow quick deployment, whether on stands or flown in arrays.
What makes the Constant Curvature waveguide important?
The Constant Curvature waveguide delivers unprecedented array coherence, meaning multiple units phase-align smoothly when arrayed, producing even coverage and transparent sound without phase cancellation or hot spots.
