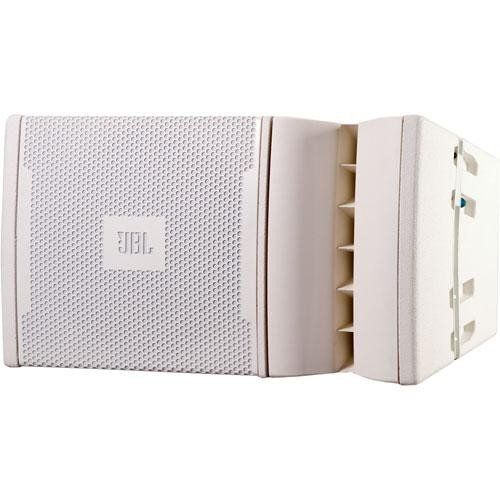

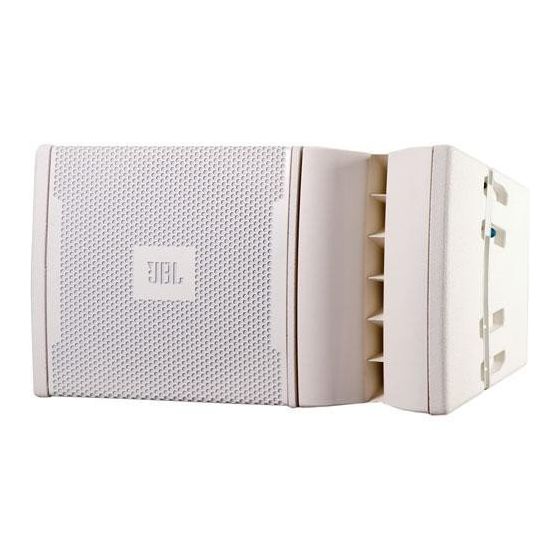

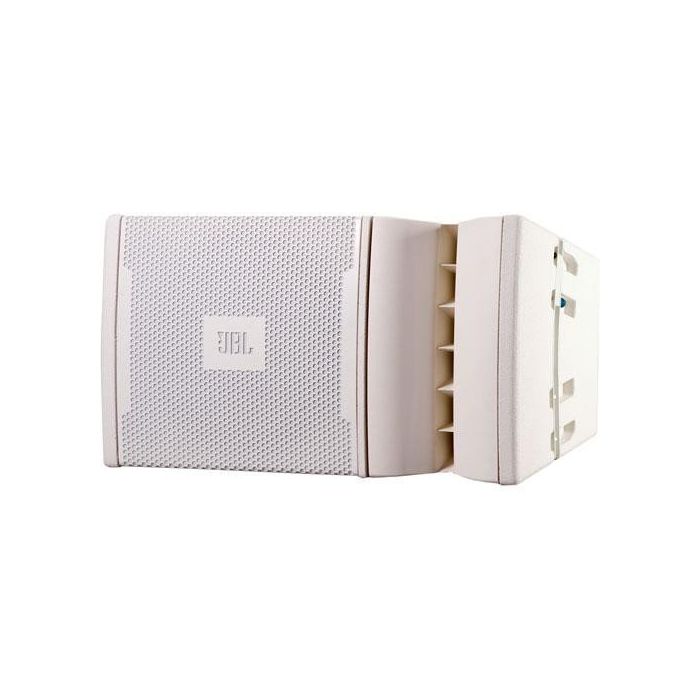

JBL VRX932LA-1WH 12" Two-Way Line Array Loudspeaker System
In stock
- SKU
- VRX932LA-1WH
Description
JBL VRX932LA-1WH 12" Two-Way Line Array Loudspeaker System
The VRX932LA-1WH is built for touring and permanent installations where punchy, articulate sound needs to reach every corner of the room without breaking up. The 12-inch woofer paired with three high-frequency compression drivers produces a responsive, dynamic character that remains tight and controlled across rock, acoustic, and DJ applications. The modular line array design stacks and angles for optimal coverage and audience engagement across venues of various sizes, making it a reliable backbone for any serious touring rig or installed system.
Acoustic Performance & Coverage
This system achieves a 130 dB SPL peak in passive mode with extended frequency response from 57 Hz to 20 kHz (–10 dB), ensuring deep bass reproduction and crystalline high-frequency articulation. The 100-degree horizontal and 15-degree vertical coverage angles create precise acoustic coverage ideal for line array configurations, while the 1.2 kHz crossover frequency ensures seamless integration between the woofer and compression drivers.
Driver Design & Build Quality
The 2262H 305 mm (12 in) Differential Drive woofer features dual voice-coils, dual magnetic gaps, and a neodymium magnet for controlled, responsive bass articulation that holds tight through extended sets. Three 2408J compression drivers with 38 mm voice-coils and neodymium magnets deliver clarity and efficiency in the high-frequency range, all housed in a robust 18 mm, 11-ply birch plywood enclosure finished in white Duraflex with a power-coated steel grille built to survive the road.
Key Features
- 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps
- 3 x JBL 2408J compression drivers with 38 mm voice-coil and neodymium magnet
- Nominal impedance: 8 Ohms (passive); selectable bi-amp LF 8 Ohms / HF 8 Ohms
- Power rating: 800W / 1600W / 3200W (Continuous / Program / Peak, passive mode)
- System sensitivity: 95 dB SPL passive mode (1 watt @ 1 meter); LF 95 dB / HF 114 dB (bi-amp mode)
- Maximum SPL: 130 dB peak (passive); LF 130 dB / HF 139 dB (bi-amp mode)
- Frequency response: 75 Hz – 20 kHz (±3 dB); 57 Hz – 20 kHz (–10 dB)
- Coverage angles: 100 degrees horizontal × 15 degrees vertical
- Crossover frequency: 1.2 kHz
- Dual Neutrik Speakon NL-4 input connectors
- 18 mm, 11-ply birch plywood enclosure
- Dimensions: 13.5" H × 23.5" W × 14.8" D; Weight: 48 lbs
The VRX932LA-1WH combines professional presence and reliability with the broadcast-quality sound that drives live performance in any venue.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL VRX932LA-1WH is a professional 12-inch line array speaker designed for live performance, festivals, and venue reinforcement—delivering 130 dB peak SPL with crystal-clear articulation and tight, controlled bass that cuts through any mix. Built with dual voice-coil woofers and three compression drivers in a 11-ply birch cabinet, it handles rock, acoustic, and DJ applications with dynamic responsiveness and road-ready durability. The modular stacking design lets you scale coverage across any space, making it the workhorse choice for touring acts and permanent installations that demand professional-grade headroom and reliability.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Tour Sound
- ✓ Festival PA
- ✓ Venue Reinforcement
Not the best pick for
- – Home listening
- – Studio monitoring
- – Personal practice
Frequently Asked Questions
Can I use this speaker in passive mode, or do I need powered amplification?
The VRX932LA-1WH operates in passive mode (800W continuous / 1600W program / 3200W peak) and requires external amplification. It also supports bi-amp operation (selectable 8 Ohm LF / 8 Ohm HF), allowing you to run dedicated amps for the woofer and drivers separately for greater control and SPL headroom.
How do I configure multiple units for larger venues?
The modular line array design allows you to stack and angle multiple VRX932LA-1WH units for optimal coverage across different audience areas. Each unit features 100-degree horizontal and 15-degree vertical coverage angles, and dual Neutrik Speakon NL-4 connectors for easy daisy-chaining into your amp chain.
What frequency range and SPL should I expect from this speaker?
Frequency response is 75 Hz–20 kHz (±3 dB) with extended response down to 57 Hz (–10 dB) for deep bass. Peak SPL is 130 dB in passive mode; bi-amp mode reaches 130 dB LF and 139 dB HF, giving you headroom for high-energy live applications.
What's inside this enclosure, and how durable is it for touring?
The cabinet is built from 18 mm, 11-ply birch plywood with a white Duraflex finish and power-coated steel grille—designed to survive road use and outdoor conditions. Inside are one 12-inch dual voice-coil Differential Drive woofer with neodymium magnet and three compression drivers with 38 mm voice-coils, all tuned for responsive, articulate sound.
How does the VRX932LA-1WH compare to the Electro-Voice ETX-12P or QSC KLA12?
The JBL delivers competitive 130 dB peak SPL with three compression drivers and tight, controlled bass articulation. It shares professional-grade line array performance with comparable models but stands out for its dual voice-coil woofer design and proven reliability in touring and festival environments; compare specs and demo coverage patterns to match your venue size and genre.
