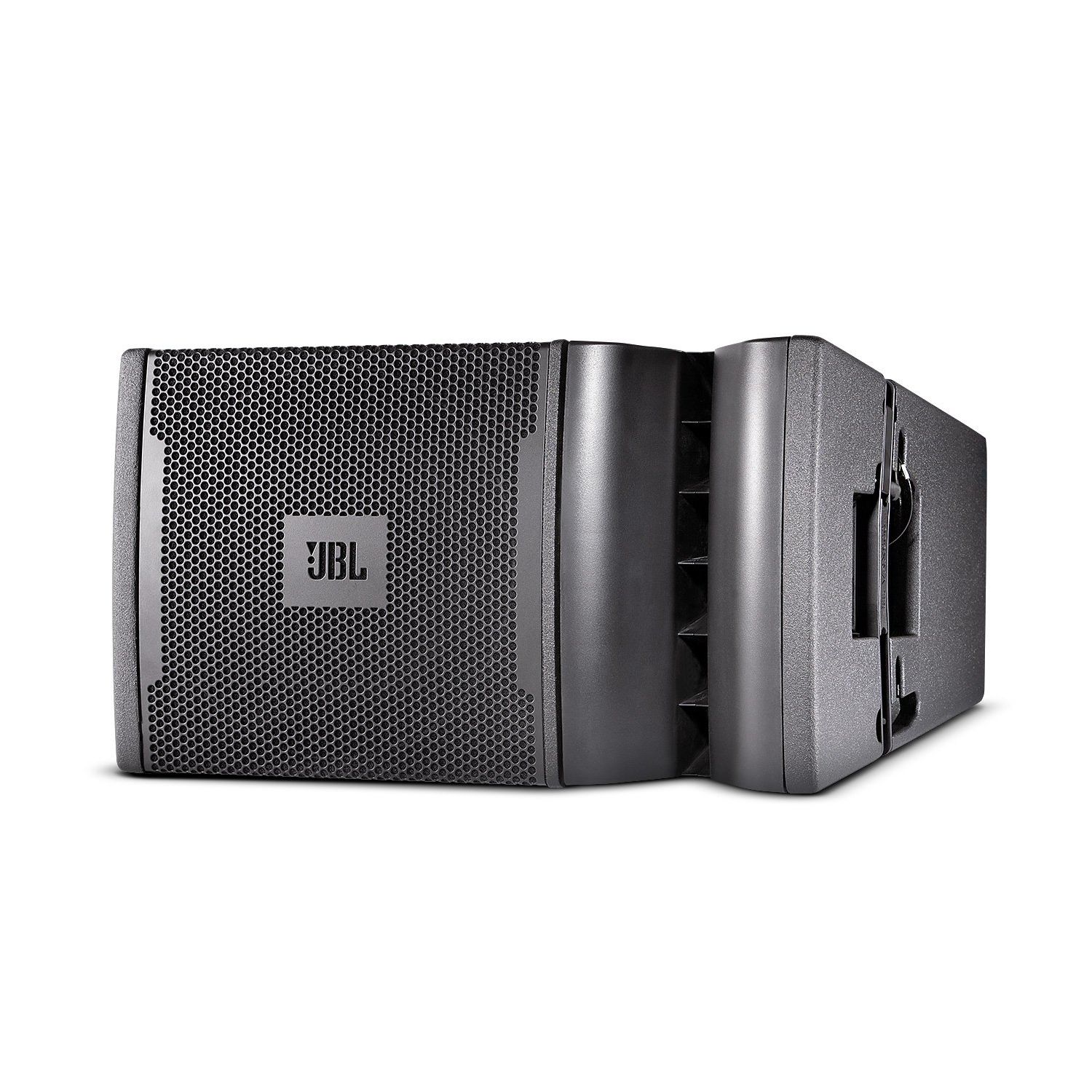

JBL VRX932LAP 12 in. Two-Way Powered Line Array Loudspeaker System
In stock
- SKU
- VRX932LAP
Description
JBL VRX932LAP 12 in. Two-Way Powered Line Array Loudspeaker System
The VRX932LAP is a compact, self-powered line array speaker engineered for bands and touring acts who demand transparent, articulate output across demanding live and installed sound applications. Built around a 12-inch dual voice coil woofer and three 2408J annular ring diaphragm HF drivers, this system produces tight, controlled bass paired with pristine high-frequency definition that cuts through dense mixes without fatigue. The integrated 1750-watt peak amplification and DSP-based protection circuitry eliminate external processing complexity, making it an efficient choice for touring, festival, and permanent venue deployments.
Audio Performance & Coverage
Maximum peak output reaches 136 dB SPL at 1 meter, with a usable frequency response of 75 Hz – 20 kHz (±3 dB) and extended range to 57 Hz at –10 dB. The 15° vertical coverage pattern and array configuration selector with "array shading" capability allow precise tuning of vertical dispersion when units are flown or stacked, optimizing acoustic coverage for specific venue geometries and eliminating hot spots. On stage, this means your sound lands consistently from front row to back, night after night.
Power, Connectivity & Build
The system operates on 90–132 VAC or 216–264 VAC, 50/60 Hz with modest power draw (6A at 120V, 3A at 240V), and features Neutrik PowerCon (NAC 3MPA) AC input and XLR audio connectors with loop-through for easy daisy-chaining in larger arrays. Constructed from 25/15 mm birch plywood and weighing 52 lb (24 kg) with compact dimensions of 349 × 597 × 444 mm, the enclosure delivers the durability and portability that survive frequent transport and field deployment—road-tested reliability that gigging musicians depend on.
Key Features
- Frequency Response: 75 Hz – 20 kHz (±3 dB); Extended Range: 57 Hz – 20 kHz (–10 dB)
- Maximum Peak Output: 136 dB SPL at 1 meter
- Internal DPC-2 Amplification: 1750 Watts Peak, 875 Watts Continuous
- 3 × 2408J Annular Ring Diaphragm High-Frequency Drivers
- 12-inch (305 mm) Dual Voice Coil Low-Frequency Driver
- 15° Vertical Coverage with Array Configuration Selector and Array Shading
- Resident DSP with Mechanical and Thermal Protection Limiters
- Neutrik PowerCon (NAC 3MPA) AC Input; XLR Audio with Loop Through
- AC Operating Range: 90–132 VAC or 216–264 VAC, 50/60 Hz
- Birch Plywood Enclosure Construction (25/15 mm)
- Compact Dimensions: 349 × 597 × 444 mm; Net Weight: 52 lb (24 kg)
- Low Power Draw: 6A at 120V, 3A at 240V
The VRX932LAP combines high-output capability, integrated amplification, and intelligent array control in a package light enough to load and deploy flexibly yet rugged enough to withstand repeated touring cycles and demanding venue schedules.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL VRX932LAP is a compact, self-powered line array speaker delivering 136 dB peak output with transparent, articulate sound across live venues, festivals, and touring deployments. Built around a 12-inch dual voice coil woofer and three annular ring diaphragm HF drivers with integrated 1750-watt amplification and DSP protection, it cuts through dense mixes without fatigue and eliminates the need for external processing. Its intelligent array shading capability, lightweight 52 lb construction, and modest power draw (6A at 120V) make it ideal for sound engineers and venue operators who demand reliable, flexible coverage without the complexity of separate amps and processing.
Frequently Asked Questions
What makes the VRX932LAP suitable for touring and festival use?
The system weighs only 52 lb with compact dimensions (349 × 597 × 444 mm), integrated 1750-watt amplification eliminates external gear, and Neutrik PowerCon/XLR connectors with loop-through allow straightforward daisy-chaining. Its birch plywood construction is durable for repeated transport, and modest power draw (6A at 120V) reduces infrastructure demands at temporary venues.
How does the array shading feature work?
Array shading is an intelligent DSP-based configuration selector that tunes vertical dispersion when units are flown or stacked, allowing you to optimize acoustic coverage for specific venue geometry and eliminate hot spots in your coverage area.
What is the frequency response and maximum output level?
Usable frequency response spans 75 Hz – 20 kHz (±3 dB) with extended range to 57 Hz at –10 dB, delivering maximum peak output of 136 dB SPL at 1 meter. The system combines tight, controlled bass from the 12-inch dual voice coil woofer with pristine high-frequency definition across three 2408J drivers.
Do I need an external amplifier or processor?
No. The VRX932LAP integrates 1750-watt peak amplification (875 continuous) and DSP-based protection circuitry, eliminating the need for external processing and simplifying deployment in touring, festival, and permanent venue applications.
What are the AC power requirements?
The system operates on 90–132 VAC or 216–264 VAC, 50/60 Hz with low power draw of 6A at 120V or 3A at 240V, making it compatible with standard venue power and minimizing infrastructure strain.
