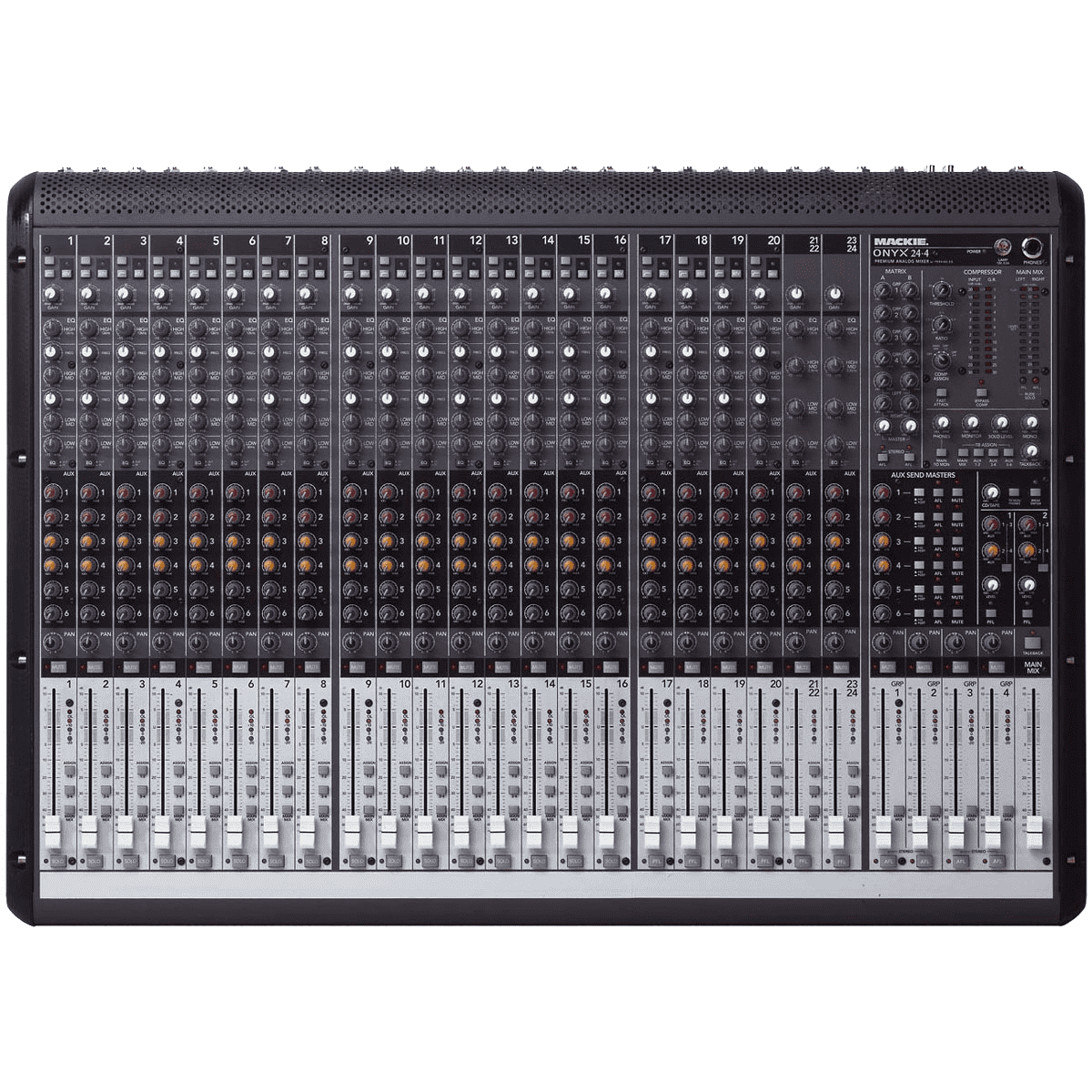

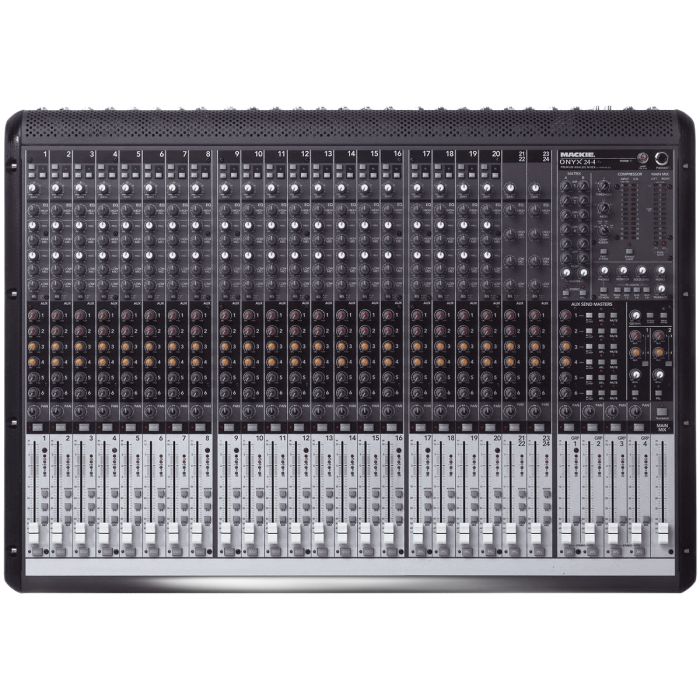

Mackie Onyx 24.4 24-Channel Analog Live Sound Console
Share
In stock
Only 1 left
- SKU
- Onyx-24-4
. Description
Mackie Onyx 24.4 24-Channel Analog Live Sound Console
The Mackie Onyx 24.4 is the go-to mixer for working musicians and touring sound engineers who need rock-solid performance night after night. Its 100 mm Panasonic faders deliver smooth, responsive mixing feel under your hands, while the fully redesigned analog circuitry and Onyx mic preamps ensure your stage sound stays clean and transparent across all 24 channels. Built tough for the road and road-tested by professionals, this workhorse mixer handles everything from packed club dates to mid-sized festival stages without breaking a sweat.
Audio Performance & Signal Chain
The Onyx mic preamps deliver 123 dB total dynamic range with -129.5 dBm EIN and 0.0007% THD, capturing clean, noise-free input across the full frequency spectrum from 10 Hz to 120 kHz. Each channel strips down to signal processing essentials: a 4-band Perkins EQ, switchable low-cut input filters, and access to the built-in assignable stereo compressor/limiter for dynamic control without external gear.
Design & Connectivity
The console features 20 mono XLR mic channels plus 4 additional line channels with 6.3 mm phone stereo inputs, all routed through a 6 x 2 Matrix Mixer and 4-bus architecture. Signal leaves the board via 24 balanced direct outputs spread across three 25-pin D-Sub connectors, plus dedicated main channel XLR outputs, group outputs, monitor sends, and AUX returns—supporting complex monitor mixes and multitrack recording without patching complications.
Key Features
- 24-channel, 4-bus live sound mixer with Onyx mic preamps
- 100 mm Panasonic faders on all channels and master bus
- 4-band Perkins EQ per channel with switchable low-cut filters
- Built-in assignable stereo compressor/limiter section
- 48V phantom power for condenser microphones
- 6 x 2 Matrix Mixer for flexible output routing
- 24 balanced direct outputs via three 25-pin D-Sub connectors
- Channel PFL and AFL for accurate gain setting and monitor control
- 2 x 12-segment LED level meters for precise level monitoring
- Universal AC power supply 100–240 VAC, 50–60 Hz with 120W max consumption
- Compact dimensions: 31.2" W x 21.9" D x 7.3" H, weighs 39.46 lbs
- Headphones output and 6 AUX sends for independent monitor mixes
The Onyx 24.4 earns its reputation through proven gig reliability and transparent gain structure—enough routing flexibility and hands-on control to handle everything from intimate club runs to small festival slots, and the dependability to make it your mixer for years of touring.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Mackie Onyx 24.4 is a compact 24-channel analog live mixer built for working sound engineers running mid-sized venues, monitor mixes, and multitrack recordings. Its fully redesigned signal path delivers transparent, noise-free audio across 20 mic channels and 4 line inputs, with smooth 100 mm Panasonic faders and road-ready I/O that eliminate external patching headaches. Choose this if you need proven reliability, clean gain staging, and enough routing flexibility to handle everything from club gigs to small festival stages without digital complexity.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Gigging
- ✓ Monitor mixing
- ✓ Multitrack recording
Not the best pick for
- – Home Recording
- – Bedroom practice
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What skill level do I need to operate the Onyx 24.4?
This console is designed for intermediate to advanced engineers and professionals. The channel strips are straightforward—4-band EQ, low-cut filter, and one assignable compressor/limiter per channel—making it accessible to experienced operators without overwhelming complexity.
Can I use the Onyx 24.4 for both live sound and studio recording?
Yes. The 24 balanced direct outputs via D-Sub connectors are purpose-built for multitrack recording, while the 6×2 Matrix Mixer and 4-bus architecture handle complex live monitor mixes. It's equally at home at a venue or in a tracking session.
What kind of preamp quality and noise floor does it have?
The Onyx mic preamps deliver 123 dB total dynamic range with –129.5 dBm EIN and only 0.0007% THD, ensuring clean, noise-free gain staging across 10 Hz to 120 kHz. This transparent signal path is critical for both live and recording applications.
How many independent monitor mixes can I run?
The console provides 6 AUX sends, each capable of feeding independent monitor mixes or effects returns. Combined with the 4-bus architecture and built-in assignable compressor/limiter, you have the flexibility to manage complex monitor or submix scenarios.
What outputs and connectivity does it have?
You get 20 mono XLR mic channels, 4 line channels with 6.3 mm stereo inputs, dedicated main XLR outputs, group outputs, 24 balanced direct outputs via three 25-pin D-Subs, 6 AUX sends, and comprehensive monitor send/return paths—all supporting multitrack I/O and complex routing without external patch bays.
