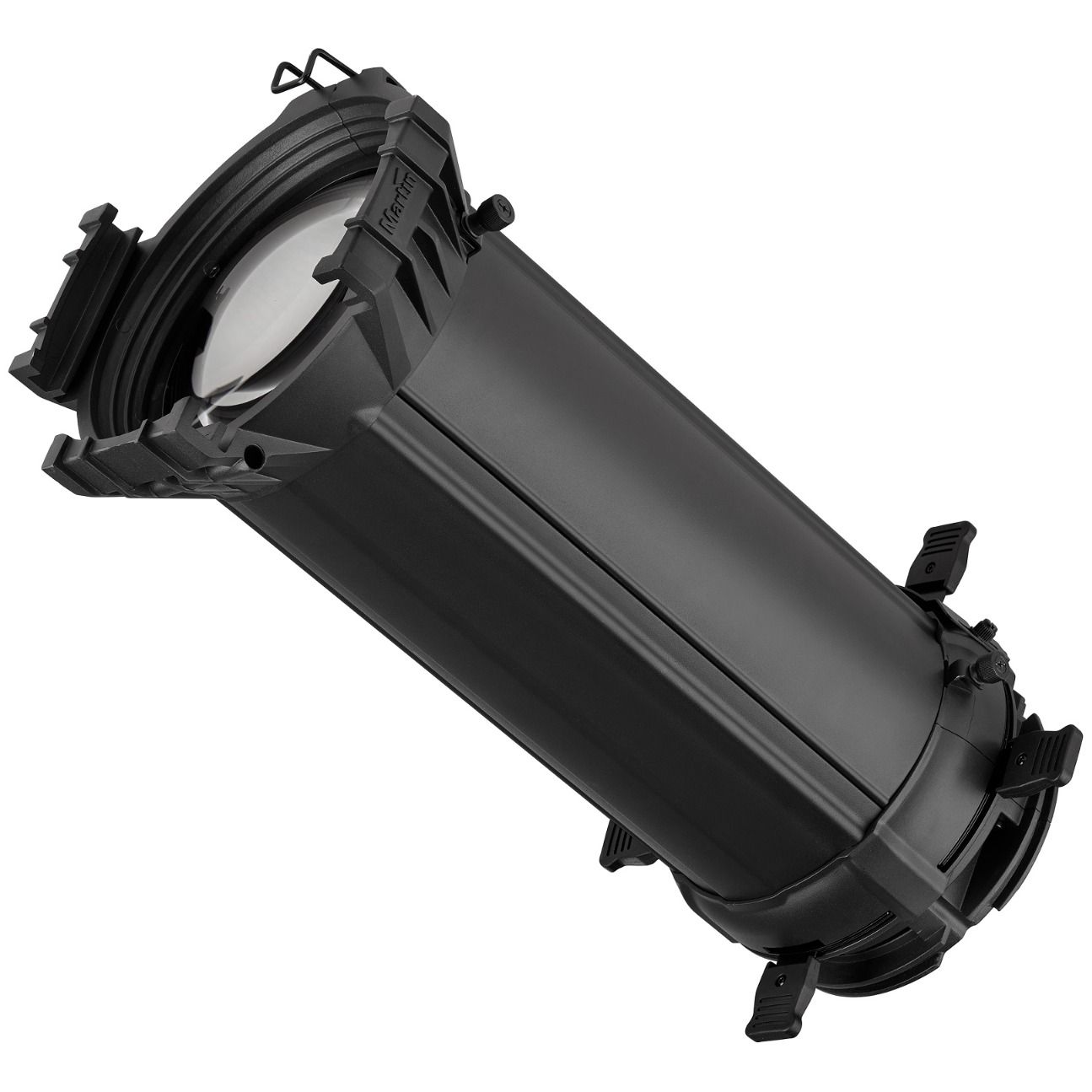

Martin ELP 25-50 degree Zoom Lens for Ellipsoidal Lights

Martin ELP 25-50 Degree Zoom Lens for Ellipsoidal Lights

The Martin ELP 25-50 Zoom Lens combines the optical precision of a static lens with the flexibility of a zoom in a single compact unit. Its independent zoom and focus controls respond smoothly and lock securely with an anti-slip mechanism, making beam adjustments fast and reliable during setup and performance. This lens delivers the flat projection and crisp focus expected from professional theatrical lighting while expanding the creative range of any ELP CL or WW LED ellipsoidal fixture.

Optical Performance & Design

The proprietary 6-lens optical design maintains unrivaled flat projection and sharp focus across the entire 25-50 degree zoom range—a technical achievement that eliminates the focus drift typical of conventional zoom lenses. The 4-blade framing system delivers precise beam edge control, while critical components with C3 corrosion resistance ensure reliable performance in demanding touring and installed environments.

Road-Ready Build & Workflow

Weighing 6.0 kg (13.2 lbs), the lens mounts cleanly on ELP fixtures and features a service hatch for straightforward lens cleaning without disassembly—a lifesaver when you're turning around shows back-to-back. Independent zoom and focus controls, combined with an all-in-one gobo/accessory gate, keep setup lean and tear-down faster so your crew can move on to the next venue.

Key Features

• 25-50 degree zoom range
• 6-lens optical design for flat projection and crisp focus across full zoom range

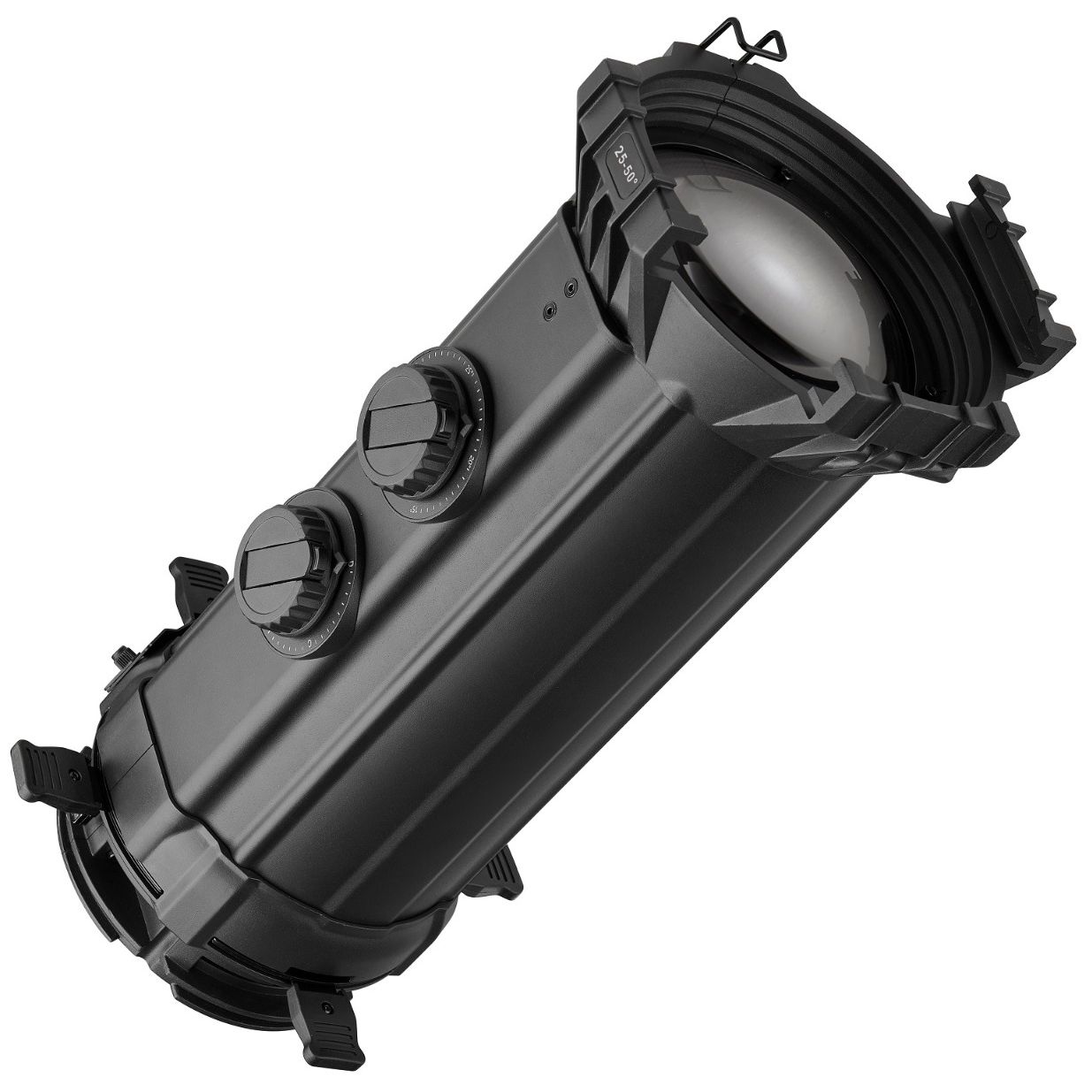

• Independent zoom and focus controls
• Anti-slip locking mechanism prevents slipping when attached
• 4-blade framing system with sharp focus
• All-in-one gobo/accessory gate and focus control
• Service hatch for easy lens cleaning and maintenance
• Critical components with C3 corrosion resistance
• Color gel frame (159 x 159 mm) included
• Weight: 6.0 kg (13.2 lbs)
• Compatible with Martin ELP CL and WW LED ellipsoidal fixtures
• Available in black and white housing variants

The Martin ELP 25-50 Zoom Lens brings new simplicity, flexibility, and speed to professional lighting design without compromise on optical quality.
