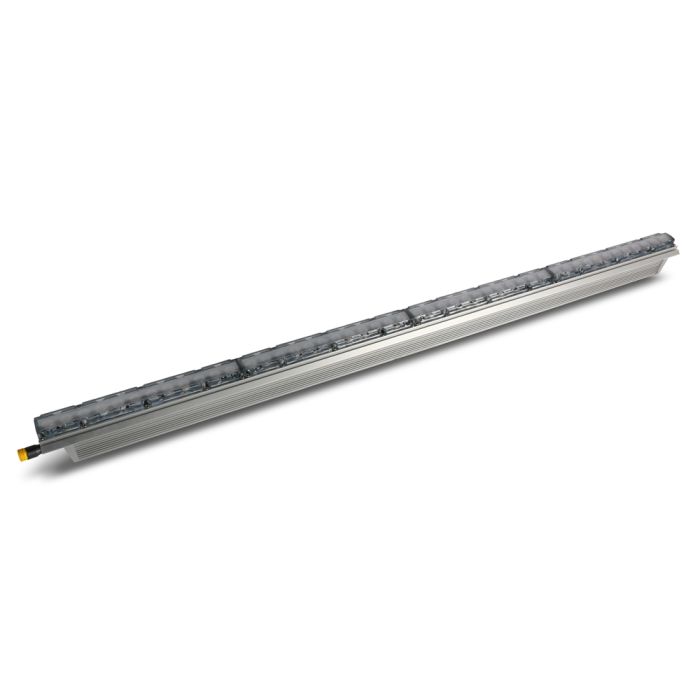

Martin Exterior 1220 Color Temp Controlled Graze Medium
In stock
- SKU
- 90356985
Description
Martin Exterior Linear 1220 Color Temp Controlled Graze, Medium
The Exterior Linear 1220 Graze is a robust outdoor-rated LED fixture engineered for architectural accent lighting on walls and linear structures. Its compact profile—48 inches long, 2.8 inches wide, and weighing just 13.3 lbs with bracket—mounts easily via hinged bracket for flexible positioning. The narrow 17° beam angle delivers precise, uniform light distribution ideal for highlighting textured surfaces and graze effects.
Optical Performance & Control
Powered by 3 W Cree XP-E2 LEDs rated for 50,000+ hours of operation, this fixture delivers sophisticated color control across the full spectrum from 2700 K warm white through 6500 K daylight. DMX and RDM connectivity enable remote intensity and color adjustment (0–100%) with 8-bit resolution per channel, allowing seamless integration into comprehensive lighting control systems.
Installation & Durability
The integrated universal power supply (100–277 V, 50/60 Hz) eliminates the need for external control boxes—power and DMX data connect via a single hybrid connector, enabling daisy-chain runs up to 100 feet at 230 V. Rated IP66 for outdoor environments, it operates reliably in temperatures from –30° C to +45° C, with typical power consumption of only 20 W per foot.
Key Features
- Length: 1219 mm (48.0 in.); Width: 72 mm (2.8 in.); Height: 99 mm (3.9 in.)
- Weight: 6.0 kg (13.3 lbs.) including mounting bracket
- Light source: 3 W Cree XP-E2 LEDs
- Beam angle: 17° (Medium)
- LED lifetime: 50,000+ hours to >70% luminous output
- Color temperature control: 2700 K – 6500 K
- Dynamic effects intensity: 0 – 100%
- DMX channels: 2 – 16 (depending on mode); 8-bit control per color
- Control protocols: DMX (USITT DMX512/1990), RDM (ANSI/ESTA E1.20)
- AC power: 100–277 V nominal, 50/60 Hz; integrated universal power supply
- Typical power consumption: 20 W per foot
- Housing: IP66 rated; operating temperature range –30° C to +45° C
The Exterior Linear 1220 combines low power draw, weather-sealed construction, and sophisticated remote control in a compact form factor ideal for permanent outdoor installations.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Linear 1220 is a 48-inch outdoor-rated LED fixture that delivers precise architectural accent lighting with full-spectrum color control (2700 K to 6500 K) and DMX/RDM remote operation. Engineered for live venues, stages, and outdoor installations, its IP66 weather rating, 50,000+ hour LED lifespan, and compact 17° beam angle ensure reliable graze and wall-wash effects in any condition. Choose it for dependable, low-power color control that integrates seamlessly into touring rigs and permanent venue lighting systems.
Frequently Asked Questions
What is the beam angle and what surfaces does it illuminate best?
The 17° Medium beam angle delivers narrow, uniform light distribution optimized for grazing textured surfaces and architectural details like walls, fences, and linear structures. This tight beam is ideal for accent lighting rather than broad area coverage.
How is it powered and controlled?
The fixture has an integrated universal power supply (100–277 V, 50/60 Hz) that connects via a single hybrid connector carrying both power and DMX512/RDM data. It supports daisy-chain runs up to 100 feet at 230 V, eliminating the need for external control boxes.
Is this suitable for outdoor use year-round?
Yes. The fixture is IP66-rated for full weather sealing and operates reliably in temperatures from –30° C to +45° C (–22° F to +113° F), making it suitable for permanent outdoor installations in most climates.
How much power does it consume, and what is the LED lifespan?
The fixture draws only 20 W per foot of length (approximately 13.3 lbs including bracket) and uses 3 W Cree XP-E2 LEDs rated for 50,000+ hours to 70% brightness, ensuring minimal electricity bills and infrequent maintenance.
What color temperatures and control options does it offer?
Full-spectrum color temperature control ranges from 2700 K (warm white) through 6500 K (daylight), with DMX and RDM support allowing 0–100% intensity adjustment and remote color mixing across 2 to 16 DMX channels depending on mode.
