Martin Exterior Image Projection 500 Medium 20 Degree
In stock
- SKU
- 90506520
Description

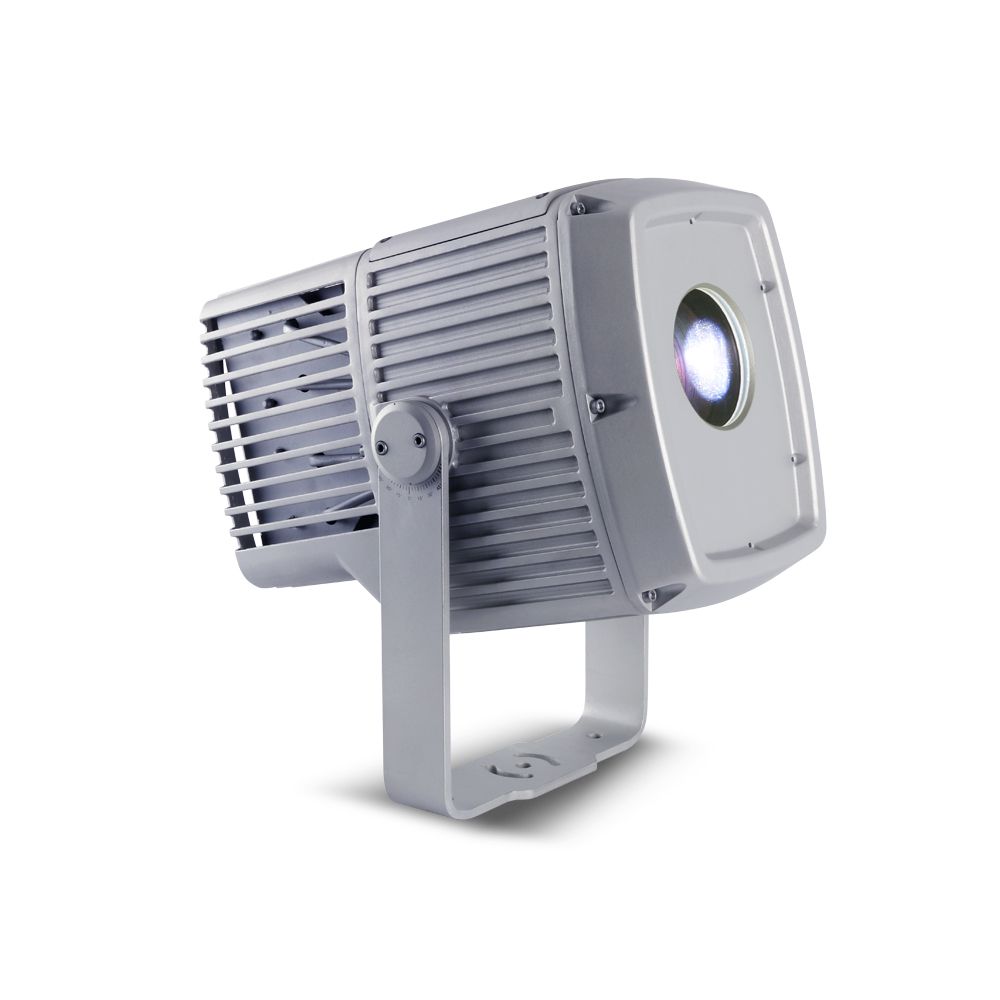

Martin Exterior Projection 500 Medium 20 Degree
The Exterior Projection 500 Medium is a workhorse projection fixture engineered for touring rigs, festival installations, and demanding outdoor gigs. Its up to 6100 lumens output cuts through ambient light with high-contrast precision, while the rugged, weather-sealed aluminum body keeps it stage-ready through rain, dust, and temperature swings. The 20-degree medium beam angle locks in tight, controlled projection from mid-throw distances—perfect for architectural detail work or bold facade effects on large-scale productions.
Optical Performance & Build Quality
A 230 W white LED engine with 20,000-hour lifespan delivers rock-solid, flicker-free light across long performance runs without the downtime that haunts traditional projection gear. The 20-degree medium beam angle gives you precision framing with solid throw distance, ideal for mid-range facade work and detail projection applications. Cast aluminum housing with hard anodized, metallic grey lacquered finish and IP66 ingress protection survives roadie hands, rain-soaked outdoor venues, and brutal thermal cycling; C5-M corrosion resistance rating keeps the fixture stage-ready in coastal and industrial environments without rust or degradation.
Effects & Control Architecture
Four integrated effect layers—8-color wheel, 6-rotating gobo wheel, 2-prism interchangeable options, and motorized focus—load unlimited creative possibilities into a single fixture. Motorized focus ranges from 3 meters to infinity, while 0–100% electronic dimming and 13-channel DMX with RDM support give you sample-accurate control over every cue and transition. Custom gobos accept borosilicate glass or aluminum material, both rated to 450°C, allowing you to project bespoke branding, band logos, and pattern work on any architectural surface.
Key Features
- 230 W white LED engine with 20,000-hour rated lifespan (to 70% output)
- Up to 6100 lumens output with 20-degree medium beam angle
- CRI 72, 8300 K color temperature for consistent architectural rendering
- IP66 rated fully sealed housing with IK08 impact resistance
- C5-M corrosion resistance for marine and high-corrosivity environments
- 8-position color wheel plus open, 6-rotating gobo wheel, and 2 interchangeable prisms
- Motorized focus from 3 meters to infinity with 0–100% electronic dimming
- 13-channel DMX with RDM support for networked lighting control
- Custom gobo diameter 30.0 mm; accepts borosilicate glass or aluminum up to 450°C
- 5 mm anti-reflection coated tempered glass front lens for crisp, high-contrast projection
- Compact dimensions: 415 × 293 × 444 mm (17.5 kg), minimizing rigging load
- Universal AC input: 100–240 V or 277 V nominal at 50/60 Hz; operating range −20°C to +
The Exterior Projection 500 Medium combines flat-field projection optics with industrial-grade weatherization and creative versatility, making it a go-to fixture for touring shows, large-venue gigs, and outdoor festivals demanding reliable, high-impact projection across extended runs.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Projection 500 Medium is a high-output LED projection fixture (6100 lumens, 20-degree beam) engineered for demanding outdoor architectural and facade lighting work. Built with IP66 weather sealing, C5-M corrosion resistance, and a 20,000-hour LED engine, it delivers reliable performance through rain, salt spray, and thermal extremes without the maintenance overhead of traditional lamp-based projectors. Its motorized focus, 8-color wheel, 6-gobo rotating wheel, and dual interchangeable prisms give lighting designers and integrators the creative control needed for precision logo projection, dynamic effects, and large-scale venue branding.
Frequently Asked Questions
What environments can this fixture handle?
The Exterior Projection 500 Medium is rated IP66 (fully sealed against dust and water jets) with IK08 impact resistance and C5-M corrosion protection, making it suitable for coastal, industrial, and high-corrosivity installations where standard fixtures would degrade. It operates reliably from −20°C to above ambient and requires no protective covers in rain or salt spray conditions.
How long does the LED last and what maintenance is required?
The 230 W white LED engine is rated for 20,000 hours to 70% output brightness, eliminating the regular lamp replacement cycles of traditional projection gear. No lamp-cleaning or filter changes are needed; periodic front-lens inspection is the only routine maintenance.

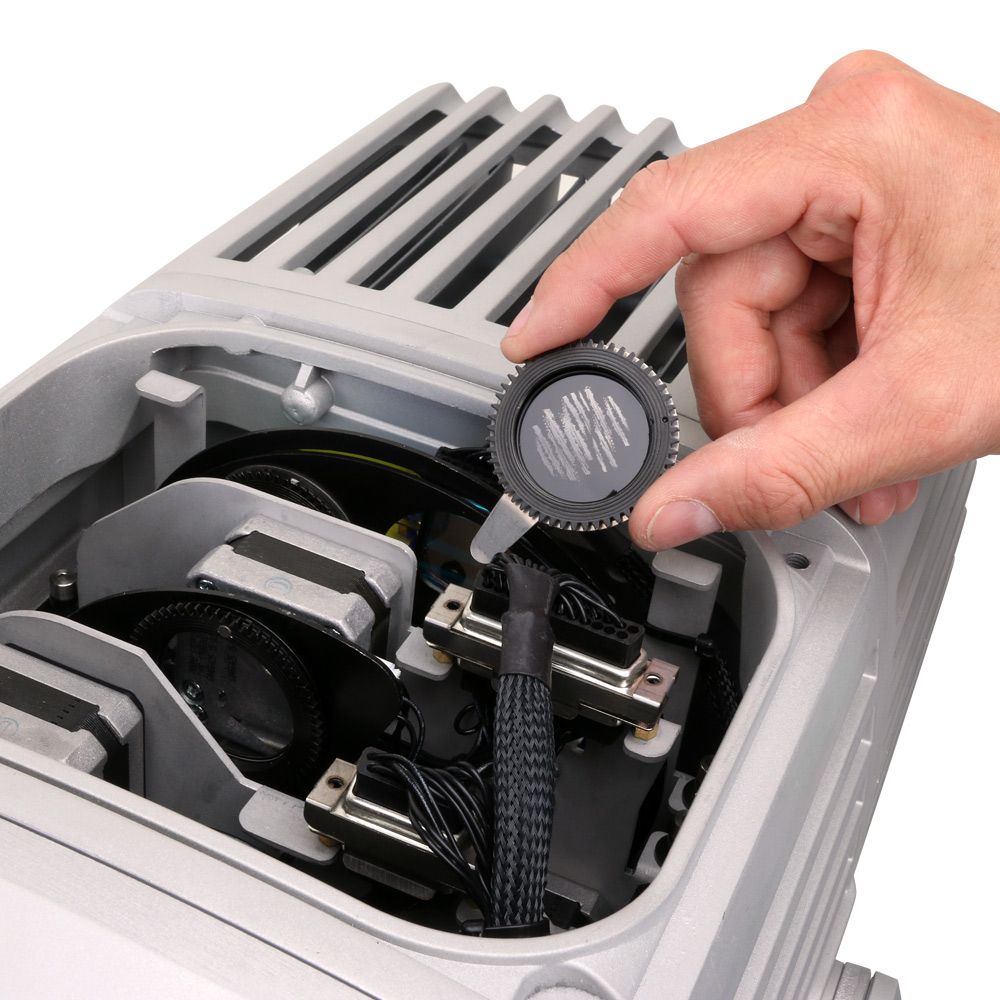

Can I use custom gobos and what materials are supported?
Yes; custom gobos accept both borosilicate glass and aluminum, both rated to 450°C continuous operation. The gobo diameter is 30.0 mm, and Martin supplies both materials for bespoke branding and pattern work.
What is the throw distance for this 20-degree beam?
The 20-degree medium beam angle balances mid-range throw distance with adequate coverage area for facade work and precision framing. Motorized focus ranges from 3 meters to infinity, allowing you to adjust sharpness across varied installation distances.

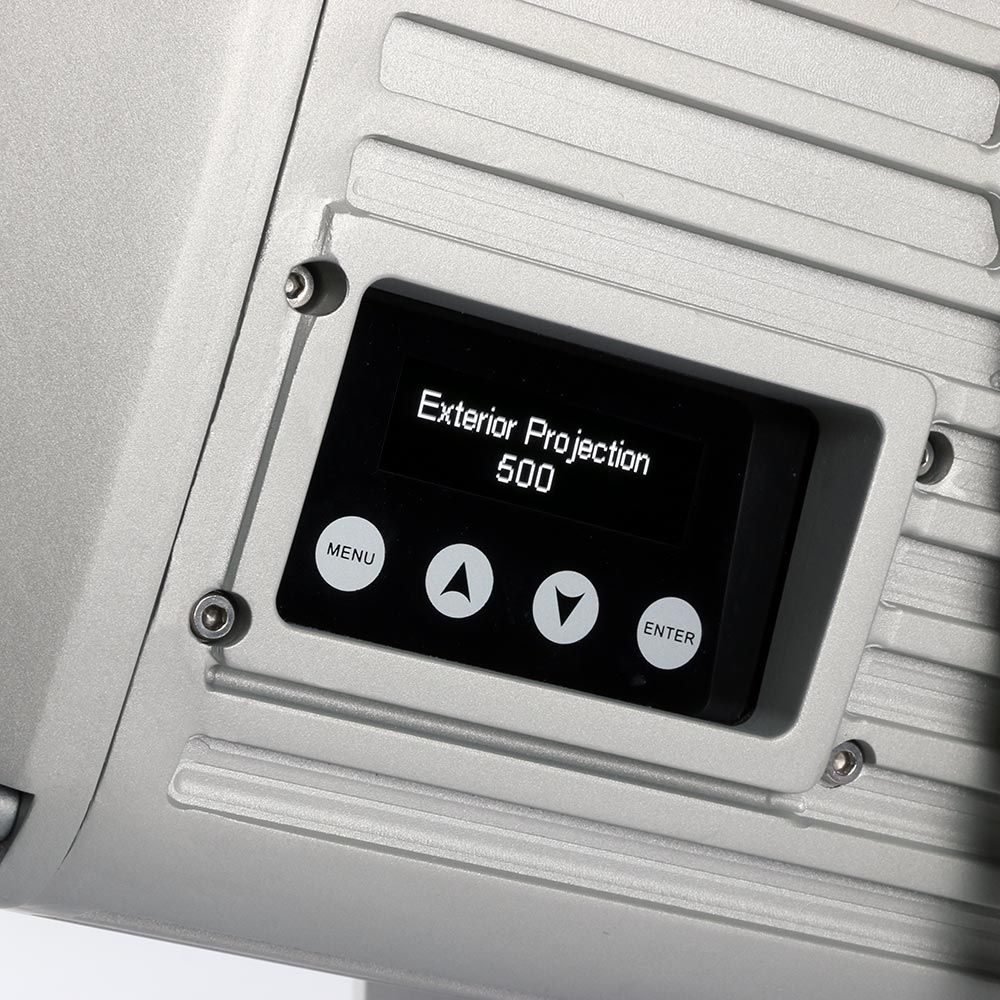

How is this controlled on site?
The fixture supports 13-channel DMX with RDM (Remote Device Management), enabling networked control from a lighting console or software controller. On-fixture motorized controls also allow manual adjustment of focus, dimming (0–100% electronic), color, and gobo selection.
