Martin Exterior Image Projection 500 Wide 36 Degree
Share
In stock
- SKU
- 90506525
Description

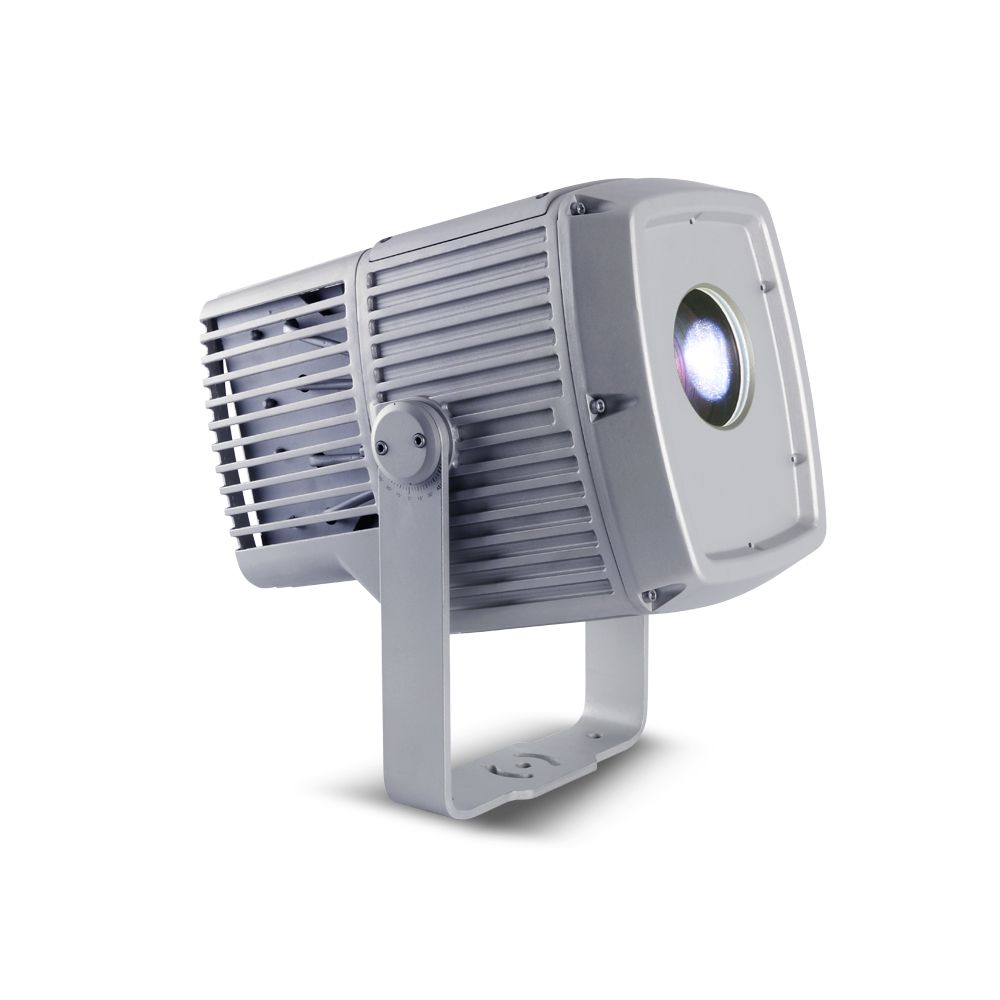

Martin Exterior Projection 500 Wide 36 Degree
The Martin Exterior Projection 500 Wide is built for touring rigs and permanent installations that demand bulletproof outdoor projection. Its compact, rugged aluminum housing and IP66 rating keep it running hard in demanding environments, while the 36° beam angle throws wide coverage ideal for large surfaces and close-range work without breaking a sweat.
Optical Performance & Output
This fixture punches out 5700 lumens with a 28,000 cd center peak intensity, locking down crisp, high-contrast flat-field images across the projection surface. The 8300K color temperature and 72 CRI nail accurate color rendering for logo projection, facade lighting, and precision framing—everything reads exactly as you dial it in.
Design & Build Quality
The housing is built from hard-anodized cast aluminum construction with C5-M corrosion resistance (ISO 12944) and IK08 impact resistance, standing up to the abuse of touring, coastal rigs, and high-stress outdoor gigs. The 5 mm anti-reflection coated tempered glass front and sealed design mean less downtime, more stage reliability, and a fixture that lasts.
Key Features
- Beam angle (cut-off): 36°
- Total output: 5700 lumens
- Center peak intensity: 28,000 cd
- Color temperature: 8300K; CRI: 72
- 230 W white LED engine with 20,000-hour lifetime (to >70% output)

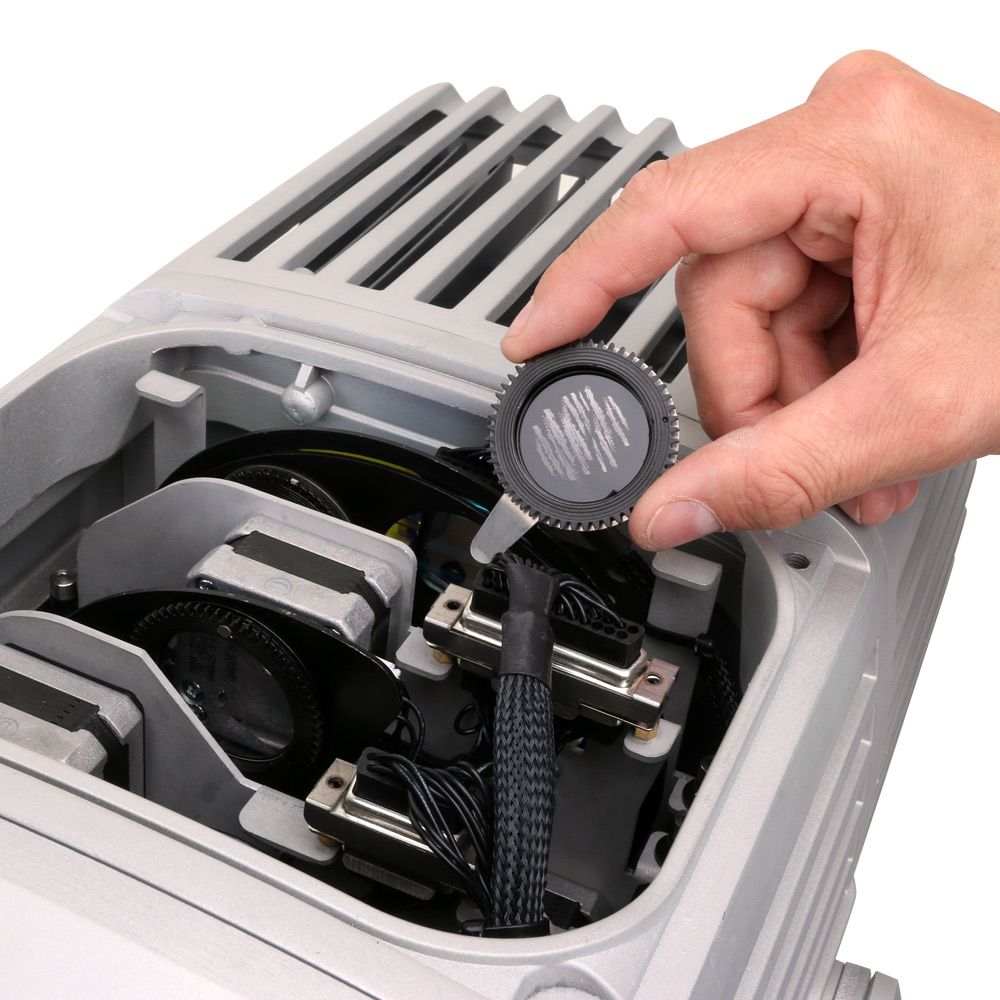

- 8 interchangeable color wheel + open; 6 rotating gobos + open
- Motorized variable focus (3 m to infinity) with motorized frost and 2 interchangeable prisms
- DMX/RDM control with 13 channels; USITT DMX512-A and ANSI/ESTA E1.20 compliant

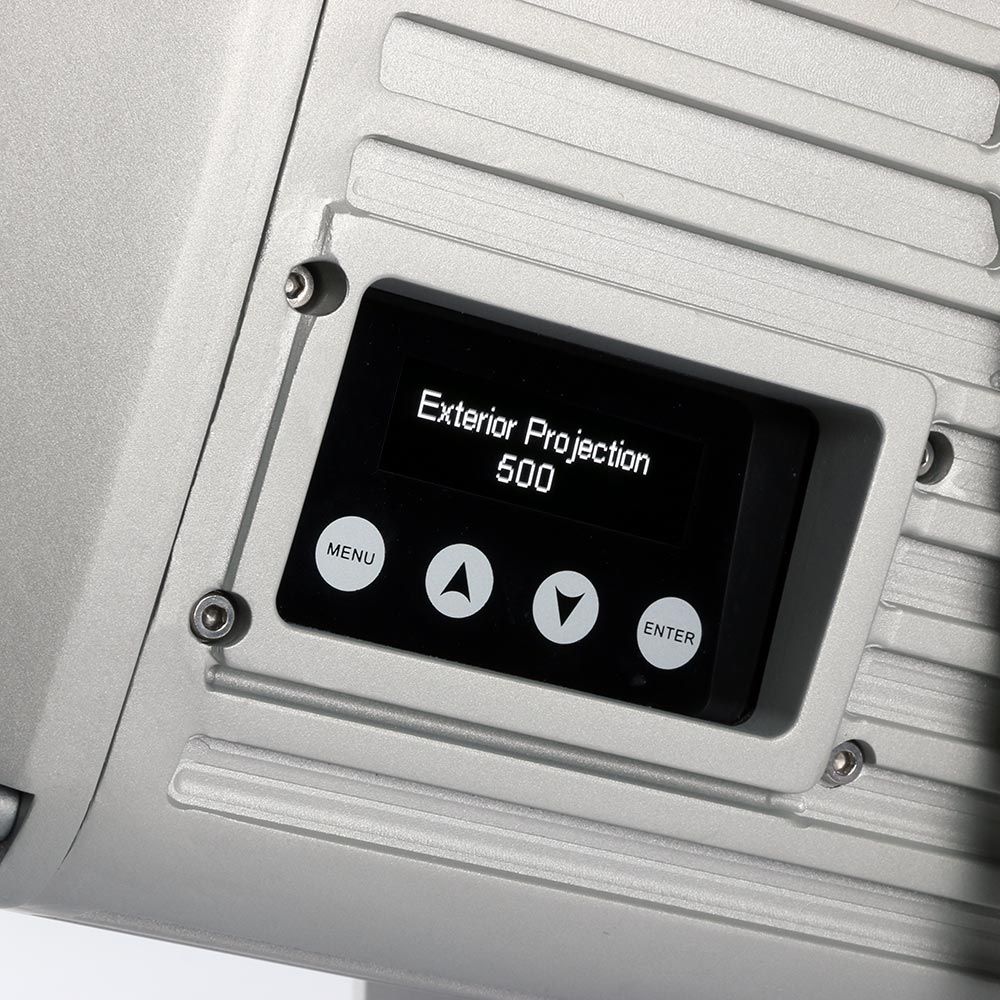

- IP66 ingress protection; IK08 impact resistance with control panel display cover
- Accepts 100–240 V or 277 V nominal at 50/60 Hz
- Operating range: −30°C to 45°C
- Dimensions: 415 × 293 × 444 mm; Weight: 17.5 kg
The Martin Exterior Projection 500 Wide combines advanced LED efficiency, comprehensive dynamic effects, and tour-grade construction to deliver the reliable, maintenance-free outdoor projection that venues, touring productions, and permanent installations depend on night after night.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Projection 500 Wide is a weatherized 5700-lumen LED projector built for outdoor architectural and event lighting, with a 36° beam angle and motorized focus/effects for crisp, high-contrast image projection on large surfaces. Designed for live events, venue installations, and touring productions, its IP66-rated aluminum housing, impact-resistant glass, and sealed construction handle coastal spray, vibration, and field abuse without fading or maintenance downtime. Choose it when you need dependable outdoor projection that stays color-accurate through the tour and holds up under real-world venue demands.
Frequently Asked Questions
What does the 36-degree beam angle mean for my projection?
The 36° beam angle provides a wide field of coverage, ideal for large surfaces and close-range projection work where you need to cover broad areas without backing up. It's suited for facade lighting, event backdrops, and wide architectural applications.
Can I control this remotely during a show?
Yes. The fixture supports DMX/RDM control via 13 channels with USITT DMX512-A and ANSI/ESTA E1.20 compliance, allowing full remote control of focus, color, gobos, frost, and prisms from any standard DMX console or software controller.
How durable is this in harsh outdoor conditions?
The Martin features hard-anodized cast aluminum construction with C5-M corrosion resistance (ISO 12944) and IK08 impact resistance, plus an IP66-rated sealed design with a 5 mm anti-reflection coated tempered glass front—designed to withstand coastal spray, rain, and mechanical stress with minimal maintenance.
What kind of effects can I create with this projector?
You get 8 interchangeable color wheels plus open, 6 rotating gobos plus open, motorized variable focus (3 m to infinity), motorized frost, and 2 interchangeable prisms—providing extensive creative control over color, pattern, and softness.
How long will the LED last?
The 230 W white LED engine is rated for 20,000 hours to >70% output, delivering long-term reliability and low replacement costs over years of touring or permanent installation.
