Martin Exterior Wash Pro M QUAD, EU, White

Martin Exterior Wash Pro M QUAD, EU, White

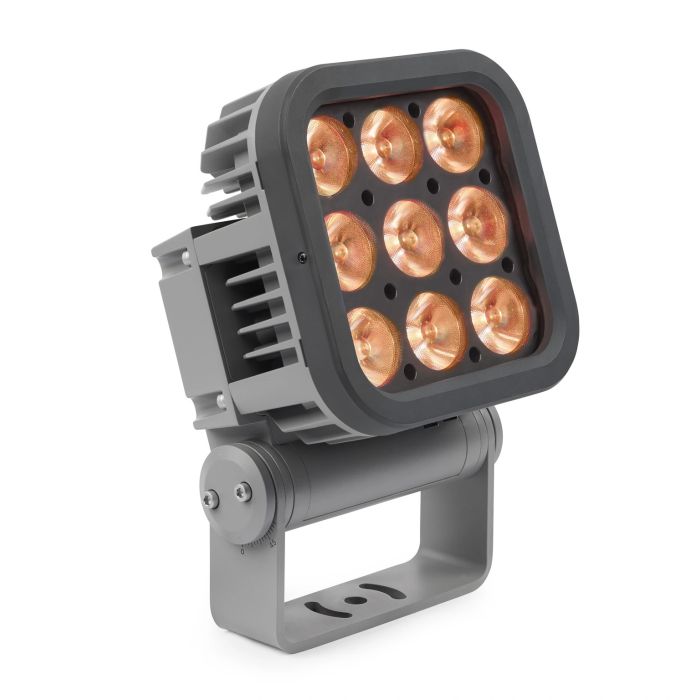

The Martin Exterior Wash Pro M QUAD is a professional-grade outdoor wash light engineered for demanding installations where reliability and color precision matter. Its compact cast aluminum form factor and adjustable bracket design accommodate any orientation, making it equally effective mounted on trusses, walls, or ground rigs. Built to weather harsh environments, this fixture delivers consistent performance in applications ranging from architectural lighting to live events.

Optical Performance & Color Control

Nine high-power RGBW LEDs produce a comprehensive color palette spanning 1000K to 12,500K, from deep warm tones to daylight saturation. The 8° native beam angle projects a tight, defined wash suitable for façades and mid-distance architectural work, while external micro lenses and an optional baffle snoot allow further beam configuration for site-specific requirements.

Build Quality & Road Reliability

Housed in cast aluminum with anodized and electrostatic powder-coated finish, this fixture achieves IP66 protection and IK08 impact resistance for outdoor and semi-sheltered deployments. Its C5 High corrosion resistance (ISO 12944-6) handles coastal and chemically aggressive environments, while vibration ratings across multiple standards (1.0g sinusoidal, 0.7g RMS random, 3.0g ANSI) ensure stable operation on mobile rigs and permanent installations alike.

Key Features

• 9 high-power RGBW LEDs with color temperature range 1000K–12,500K
• 8° native beam angle with configurable optics via external micro lenses and optional baffle snoot
• Cast aluminum housing with anodized and electrostatic powder-coated finish
• Traffic white RAL 9016 color option
• IP66 protection rating for outdoor and wet environments
• IK08 impact resistance
• C5 High corrosion resistance (ISO 12944-6)
• Adjustable bracket mounting with any-orientation capability
• 2 m (6.5 ft.) open-ended power cable tail; EU models use H07RN-F 3G 1.0 mm², 450/750V, VDE
• 2 m (6.5 ft.) 6-conductor open-ended data cable with combined input/output
• Vibration resistance: 1.0g sinusoidal (IEC 60068-2-6), 0.7g RMS random (IEC 60068-2-64), 3.0g (ANSI C136-31)
• 5-year manufacturer warranty

The Martin Exterior Wash Pro M QUAD combines robust IP66/IK08 construction with precise RGBW color mixing and configurable beam geometry, making it a dependable choice for permanent installations and touring operations that demand consistent performance in variable conditions.
