Martin Exterior Wash Pro XL QUAD, EU, alu
Description

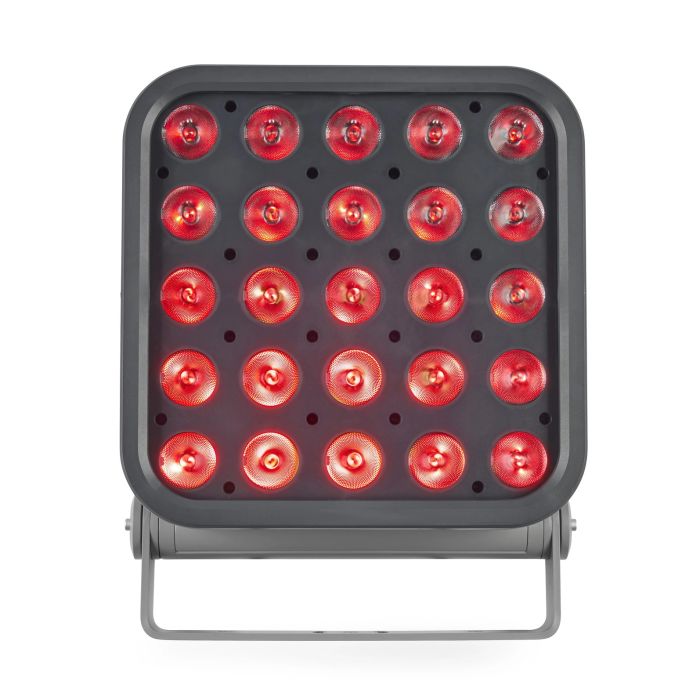

Martin Exterior Wash Pro XL QUAD, EU, Aluminum
The Martin Exterior Wash Pro XL QUAD is a professional-grade exterior lighting fixture engineered for demanding live event and architectural applications. Its robust cast aluminum construction and comprehensive environmental protection make it reliable in harsh outdoor conditions, while the adjustable mounting system allows flexible installation on virtually any surface orientation.
Durability & Environmental Protection
Built with cast aluminum housing finished in traffic grey RAL 7042 with anodized and electrostatic powder-coated surface treatment, this fixture achieves IP66 waterproofing and IK08 impact resistance. The C5 High corrosion resistance rating (ISO 12944-6) ensures extended service life in coastal and chemically aggressive environments—critical for touring and festival rigs that move regularly.
Optical Performance & Control
The fixture houses 25 RGBW LEDs with 8-degree beam angles, delivering precise color mixing across a wide spectrum for stage wash applications. Sophisticated color temperature control from 1000K to 12,500K follows the black-body curve, enabling accurate whites and dynamic color effects for live productions and architectural installations alike.
Key Features
- 25 x RGBW LEDs with 8-degree beam projection
- Color temperature range: 1000K to 12,500K following black-body curve
- Cast aluminum housing with anodized and powder-coated finish
- IP66 waterproof protection rating
- IK08 impact resistance
- C5 High corrosion resistance (ISO 12944-6)
- Effective Projected Area: 0.149 m² / 0.180 m²
- 2 m power cable (H07RN-F 3G 1.0 mm², 450/750V, VDE) — open ended
- 2 m combined data input/output cable — 6-conductor, open ended
- Adjustable bracket mounting; operates in any orientation
- Vibration resistance: 1.0g Sinusoidal (IEC 60068-2-6), 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
- Minimum 0.4 m (1.3 ft.) distance to illuminated surfaces required
This fixture combines professional optical capabilities with industrial-grade weatherproofing, making it a dependable choice for permanent outdoor installations and touring productions requiring color-mixing wash effects.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Wash Pro XL QUAD is a professional-grade outdoor lighting fixture built for permanent installations, stage productions, and architectural applications in harsh weather. It features 25 RGBW LEDs with precise color mixing from 1000K to 12,500K, cast aluminum construction rated IP66 waterproof and IK08 impact-resistant, and a C5 corrosion rating for coastal or chemical environments. Choose it for reliable, color-accurate wash lighting on touring rigs, outdoor venue installations, and architectural displays where durability and weatherproofing are non-negotiable.
Frequently Asked Questions
What makes this fixture suitable for harsh outdoor environments?
The Martin Exterior Wash Pro features cast aluminum housing with anodized and electrostatic powder-coated finish, IP66 waterproof protection, IK08 impact resistance, and a C5 High corrosion rating (ISO 12944-6) that ensures extended service life in coastal and chemically aggressive environments.
What color range and control does this fixture offer?
It houses 25 RGBW LEDs with 8-degree beam angles and delivers color temperature control from 1000K to 12,500K following the black-body curve, enabling accurate whites and dynamic color effects for architectural and entertainment wash applications.
What cables and power setup does it come with?
The fixture includes a 2 m power cable (H07RN-F 3G 1.0 mm², 450/750V, VDE) and a 2 m combined data input/output cable (6-conductor), both open ended for integration into your lighting control and power distribution system.
How flexible is the mounting system?
The adjustable bracket mounting allows operation in any orientation, and the fixture meets vibration resistance standards (1.0g Sinusoidal per IEC 60068-2-6, 0.7g RMS Random per IEC 60068-2-64, and 3.0g per ANSI C136-31), making it suitable for various installation angles and outdoor conditions.
What is the minimum clearance required for installation?
A minimum distance of 0.4 m (1.3 ft.) is required between the fixture and any illuminated surfaces to ensure proper operation and heat dissipation.
