Martin IP66 PSU 240W for Creative LED on DMX B-Stock
Share
In stock
- SKU
- 90760330HU-B
Description

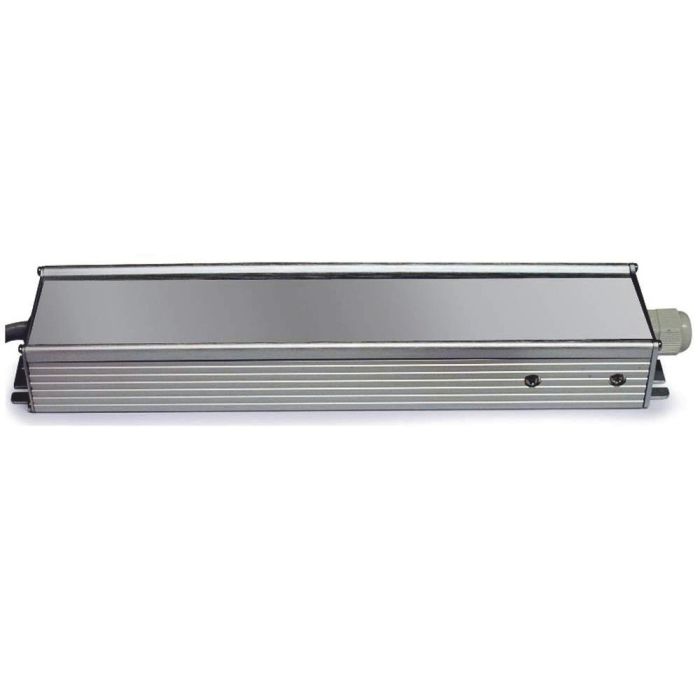

Martin IP66 PSU 240W for Creative LED on DMX
The Martin IP66 PSU 240W is a compact, rugged external power supply built for live-sound crews and lighting techs who need rock-solid reliability in outdoor and high-moisture venues. Its extruded aluminum housing with clear anodized finish delivers a slim profile that mounts easily in tight spaces on a rig, yet provides the robust 48 VDC output needed to power Martin's exterior LED fixtures and video products in networked DMX systems without compromise.
Road-Ready Build
This unit measures just 314 mm × 68 mm × 39 mm and weighs 1.5 kg, making it straightforward to cable into a touring rig or venue install without eating up valuable space. The IP66 and NEMA 4X ratings mean full dust and water resistance—critical for outdoor festival rigs, wet venue floors, and unpredictable weather setups. The aluminum construction resists corrosion in high-moisture environments, and the housing dissipates heat efficiently—rated for up to 820 BTU/hr—while running reliably across -30°C to +45°C, with a maximum surface temperature of 80°C under full load.
Power & Protection
Auto-ranging 100-240 VAC input accepts power from any standard outlet worldwide, drawing typical currents of 9.5 A at 100 V or 7.8 A at 120 V depending on regional supply—no worries about adapters on the road. The supply can be mounted up to 50 meters away from connected fixtures, and incorporates full protection circuits for overvoltage, overcurrent, short circuit, and over-temperature conditions with automatic recovery—essential safeguards for unattended outdoor rigs and venues where you can't babysit the power.
Key Features
- 48 VDC regulated output
- IP66 and NEMA 4X weatherproof rating
- Auto-ranging 100-240 VAC input with worldwide compatibility
- Compact dimensions: 314 mm × 68 mm × 39 mm (12.4" × 2.7" × 1.5")
- Lightweight at 1.5 kg (3.3 lbs)
- Extruded aluminum housing with clear anodized finish
- Operating temperature range: -30°C to +45°C (-22°F to +113°F)
- 820 BTU/hr heat dissipation capacity
- Flexible mounting: fixation points for surface mount in any orientation
- Mounts up to 50 meters (164 feet) from connected products
- Full protection: overvoltage, overcurrent, short circuit, over-temperature with auto-recovery
- RoHS compliant
The Martin IP66 PSU 240W serves as a dependable alternative to the P3 PowerPort, delivering stable power to Exterior PixLine, Exterior Dot-HP, and VC-Dot fixtures in any DMX-controlled lighting setup you throw at it.
More Information
| Condition | Refurbished |
|---|
Reviews
At a Glance
The Martin IP66 PSU 240W is a compact, weatherproof 240-watt power supply built for outdoor and touring lighting rigs, delivering stable 48 VDC power to Martin's exterior LED fixtures in DMX-networked systems. Its IP66 and NEMA 4X ratings keep it protected in rain, dust, and high-moisture environments, while the rugged aluminum housing and full protection circuits (overvoltage, overcurrent, short circuit, over-temperature with auto-recovery) ensure reliability during live events and permanent installations. Choose this B-Stock unit for rock-solid, road-tested power delivery at a budget-friendly price—minor cosmetic marks don't affect performance on stage or outdoors.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Outdoor Installations
- ✓ Touring
- ✓ Permanent Installations
Not the best pick for
- – Indoor Studio
- – Portable Home Use
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What does B-Stock mean for this power supply?
B-Stock means this unit is fully functional and carries the same specifications and protection as new stock, but may have minor cosmetic imperfections on the housing or packaging. Performance and reliability are not affected.
Can I use this power supply outdoors and in wet environments?
Yes. The IP66 and NEMA 4X weatherproof ratings provide full dust and water resistance, and the corrosion-resistant clear anodized aluminum housing operates reliably across -30°C to +45°C, making it ideal for outdoor installations, touring, and high-moisture venues.
How far away can I mount this supply from my LED fixtures?
The supply can be mounted up to 50 meters (164 feet) away from connected fixtures, giving you flexibility in rig layout and cable routing for large stages and permanent installations.
What protection does this supply offer against power surges and faults?
It incorporates full protection circuits for overvoltage, overcurrent, short circuit, and over-temperature conditions, all with automatic recovery—critical for unattended outdoor rigs and touring applications.
Will this power supply work with outlets outside the United States?
Yes. It features auto-ranging 100-240 VAC input, so it accepts power from any standard outlet worldwide, drawing 9.5 A at 100 V or 7.8 A at 120 V depending on your regional supply.
