Martin MAC Aura XIP in Cardboard

Martin MAC Aura XIP in Cardboard

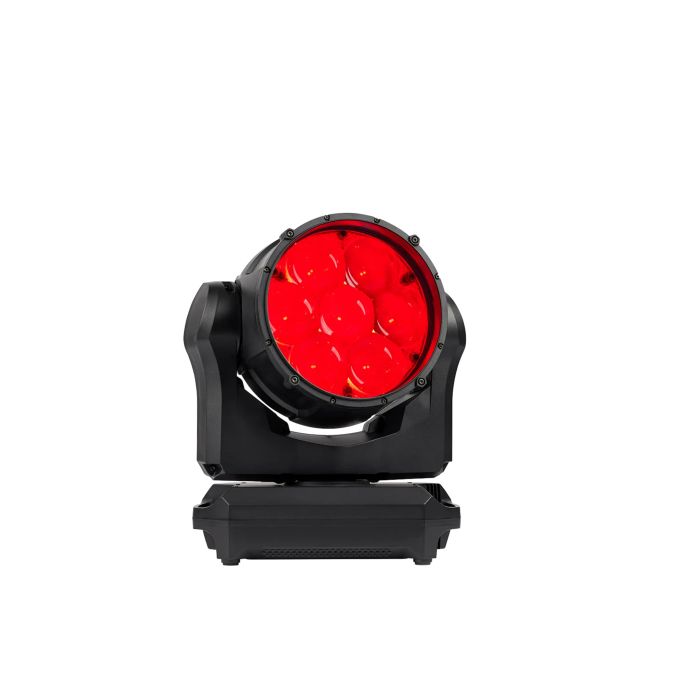

The Martin MAC Aura XIP is a compact, IP66-rated moving head wash light built to survive the road and the elements. Its sealed housing and robust construction handle touring rigs, outdoor festivals, and venue installations where moisture and dust are facts of life. This fixture delivers the color mixing and beam control you need for modern live sound design while staying field-serviceable when you're deep in a tour or managing permanent install.

Optical Performance & Control Range

The 7 × 60W RGBW LED array produces smooth color mixing across 1000K to 12850K color temperature with 21.3 lm/W efficacy, keeping heat load manageable during long show nights. The 6.3 to 50.4-degree zoom range handles both tight spotlighting and wide wash work, while 16-bit dimming and color control give you the smooth fades and precise color transitions that modern live design demands.

Operational Features & Protocol Support

Pan and tilt movement spans 540° motorized pan and 220° tilt, covering the positioning flexibility most rigging crews need. The fixture accepts DMX, RDM, Art-Net, sACN, and P3 control protocols, integrating cleanly into legacy lighting consoles and modern networked systems alike. Its high-impact, flame-retardant thermoplastic housing and IP66 rating stand up to real-world use without getting in the way of quick repairs or adjustments in the field.

Key Features

• 7 × 60W RGBW LED moving head wash light
• IP66-rated sealed housing for wet and dusty environments
• 1000K to 12850K color temperature range
• 6.3 to 50.4-degree motorized zoom
• 540° motorized pan and 220° motorized tilt
• 16-bit control over dimming, color mixing, zoom, pan, and tilt
• Support for DMX, RDM, Art-Net, sACN, and P3 protocols
• High-impact, flame-retardant thermoplastic housing
• Includes two omega brackets with 1/4 turn fasteners
• Includes SoftLens diffuser and multi-language manual
• 21.3 lm/W luminous efficacy

The MAC Aura XIP pairs sealed construction, protocol flexibility, and professional LED mixing into a dependable fixture for touring operators, installers, and rental houses running road shows or permanent venues.
