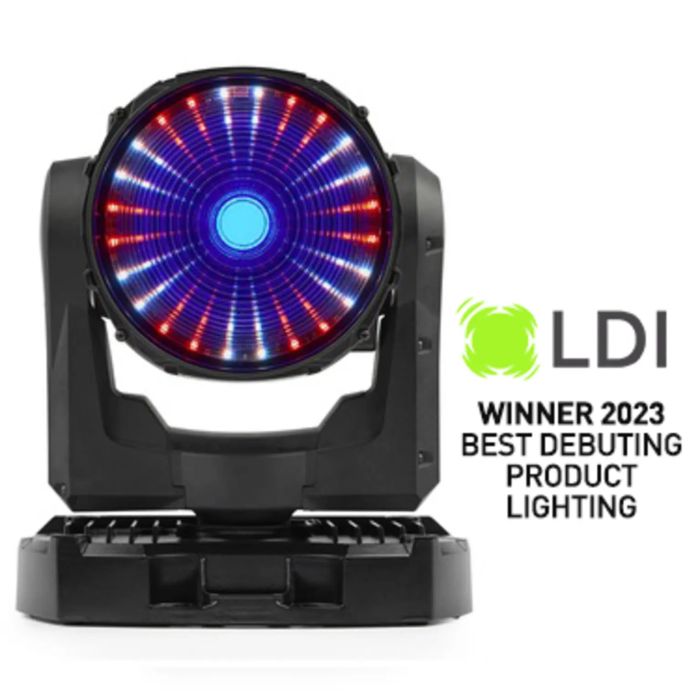

Martin MAC One in Cardboard

Martin MAC One in Cardboard

The Martin MAC One is a compact, lightweight moving head fixture built for touring rigs and permanent installations where reliable output and quiet operation are non-negotiable. Its ultra-compact form factor makes it exceptionally portable for load-in and load-out, while the integrated Fresnel lens delivers precise beam control without sacrificing brightness or color accuracy. Engineered for sound engineers and lighting operators who demand consistent performance across theater, broadcast, and live event applications.

Optical Performance & Output

This fixture delivers 2,500 lumens with an impressive narrow beam intensity of 375,000 cd, making it capable of cutting through ambient light on large stages. The integrated Fresnel lens with 4–27° zoom range provides flexible beam shaping from tight spots to wider washes, while the 120 W custom-developed RGBL LED engine ensures color accuracy across the full spectrum with 21.4 lm/W efficacy.

Design & Thermal Characteristics

The high-impact flame-retardant thermoplastic housing with IP20 protection rating handles the rigors of touring while remaining durable in fixed installations. Thermal management is exceptional—achieving only 23 dB(A) in theater and broadcast mode ensures this fixture runs virtually silent, critical for audio-sensitive venues and live sound environments where fan noise would bleed into mics or degrade the listening experience.

Key Features

• 2,500 lumens output with 375,000 cd narrow beam intensity
• 120 W RGBL LED light engine with 24 RGB effect LEDs in lens
• Integrated Fresnel lens with 4–27° zoom range
• DMX, Art-Net, sACN, and Martin P3 control compatibility
• Ultra-quiet operation at 23 dB(A) in theater/broadcast mode
• Weight: 4.4 kg (9.7 lbs) with compact 254 × 297 × 220 mm form factor
• IP20-rated high-impact flame-retardant housing
• Flexible power compatibility: 100V–240V operation
• FSC-certified cardboard packaging (inner and outer)
• 21.4 lm/W maximum efficacy

The MAC One combines exceptional optical performance with genuine portability and silent operation, making it a dependable choice for touring productions and installations where space and noise constraints are real concerns.
