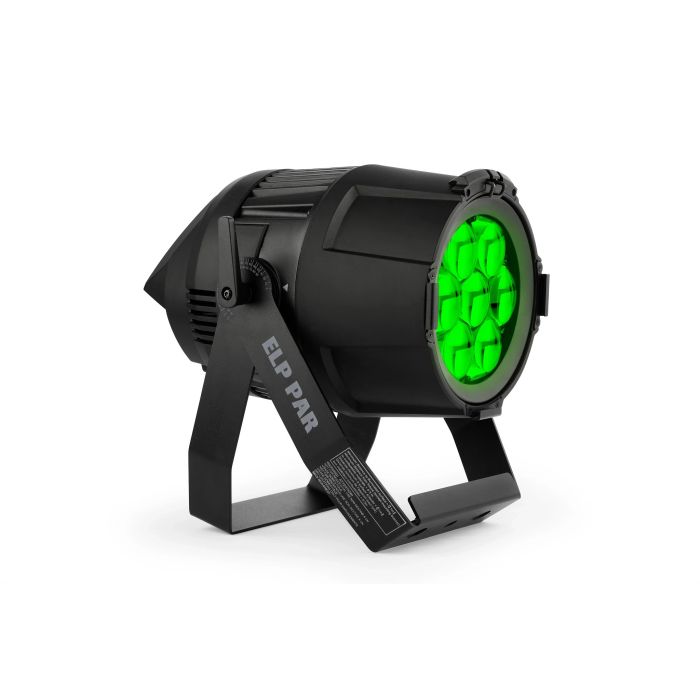

Martin ELP PAR
The Martin ELP PAR is a compact yet powerful LED fixture built for live productions and touring that demand precise color control and punchy output without the weight penalty. Its lightweight aluminum construction and integrated mounting bracket deploy quickly on truss or floor stand, while the quick-focus system gets you dialed in fast—critical when you're running sound and lighting on the same tight schedule.
Light Output & Color Capability
With 7 x 40W RGBW LEDs generating 3,500 lumens, this fixture delivers substantial brightness for mid-to-large venue rigs. The RGBW color mixing engine offers 48 factory presets plus a virtual color wheel, and variable color temperature control from 1800 K to 12,850 K lets you match an existing rig on short notice or execute color-critical cue sequences without guesswork.
Control & Integration
DMX control runs through Neutrik 5-pin locking XLR connectors (in/out), so patching into your existing lighting network is straightforward. Power delivery uses Neutrik PowerCON TRUE1 TOP connectors for both input and throughput, with standard AC 100–240 V, 50/60 Hz operation and typical consumption of 300 W, letting you daisy-chain multiple units without breaking a sweat.
Key Features
- 7 x 40W RGBW LED engine producing 3,500 lumens
- 48 built-in color presets with virtual color wheel effects
- Variable color temperature: 1800 K – 12,850 K
- Motorized zoom range: 5.5° to 50°
- Full-gamut color calibration for precision work
- Bright angle projection indicators for focus confirmation
- Quick-focus system for rapid deployment
- Dimensions: 312 x 287 x 401 mm (12.3 x 11.3 x 15.8 in.)
- Weight: 7.8 kg (17.2 lbs.)
- Neutrik PowerCON TRUE1 TOP power connectors (input/throughput)
- Neutrik 5-pin XLR DMX in/out
- Includes adjustable mounting bracket, 16 A power cables, and truss/floor-mounting yoke
The Martin ELP PAR combines professional-grade optics, rock-solid connectors, and genuine portability—a dependable fixture for touring rigs, installed venues, and rental fleets that can't afford downtime.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin ELP PAR is a compact 3,500-lumen LED fixture built for touring productions and mid-to-large venues that demand punchy light output and precise color control in a portable package. Its motorized zoom, RGBW color mixing with 48 presets, and variable color temperature (1800 K–12,850 K) make it equally suited to quick-change live setups and color-critical design work. At 7.8 kg with quick-focus optics and daisy-chainable PowerCON connectors, this fixture goes on and off a truck reliably, fits any rig topology via standard DMX, and holds its own against larger installations.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Studio Sessions
- ✓ Venue Lighting
Not the best pick for
- – Home Recording
- – Practice
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What is the brightness and color-mixing capability of this fixture?
The Martin ELP PAR delivers 3,500 lumens from seven 40W RGBW LED engines, with a virtual color wheel, 48 factory presets, and variable color temperature from 1800 K to 12,850 K. This combination supports both rapid color selection and precise color-critical work such as matching existing rigs or video production grading.
How does the zoom range work and what is the fixture's throw distance?
The motorized zoom spans 5.5° to 50°, controlled via DMX and confirmed by built-in bright angle projection indicators. This range adapts to mid-to-large venue distances and allows rapid focus adjustment during show changes without manual refocus.
What are the power and control connections, and can I daisy-chain multiple units?
Power uses Neutrik PowerCON TRUE1 TOP connectors (input and throughput) supporting 100–240 V AC, 50/60 Hz operation at 300 W typical draw. DMX control is via Neutrik 5-pin locking XLR connectors (in/out), allowing standard DMX networks; PowerCON daisy-chaining lets you run multiple fixtures from a single power source.
Is this fixture portable and what mounting options are included?
The Martin ELP PAR weighs 7.8 kg (17.2 lbs) and measures 312 x 287 x 401 mm, with a quick-focus system and lightweight aluminum construction. The package includes an adjustable mounting bracket and truss/floor-mounting yoke, supporting rapid deployment on tour or in installed venues.
What is included with the fixture?
The Martin ELP PAR ships with an adjustable mounting bracket, 16 A power cables, and a truss/floor-mounting yoke for immediate setup in live and studio environments.
