Martin P3-150 LED Video System Controller
Description
Martin P3-150 LED Video System Controller

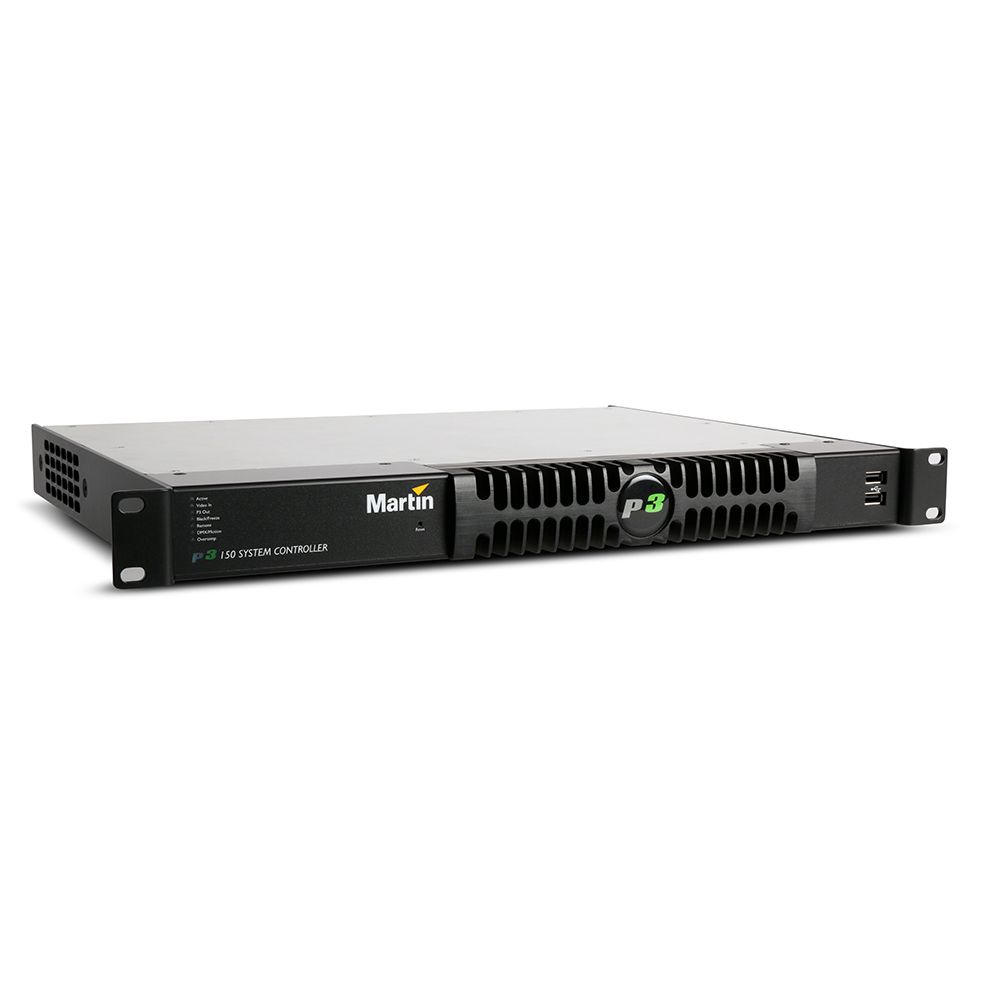

The P3-150 is a compact and ergonomic LED video controller built to handle complex pixel-mapping and video-to-lighting integration without unnecessary complexity. This unit bridges video content and DMX lighting control seamlessly, making it the workhorse for installations running Martin Creative LED products and P3-enabled MAC moving heads. Its intuitive GUI and real-time visualization tools put sophisticated video mapping within reach of operators at any experience level.
Video Processing & Pixel Control
The controller processes Full HD video input (1920×1080) at up to 60fps with progressive scan, delivering 8-bit RGB 4:4:4 color sampling and 16-bit per-channel processing depth (48 bits per pixel) for smooth, color-accurate output. System latency of 2 frames keeps video-to-lighting sync tight, while the 520,000-pixel processing capacity (expandable) handles even large-scale installations with room to grow.
Connectivity & Integration

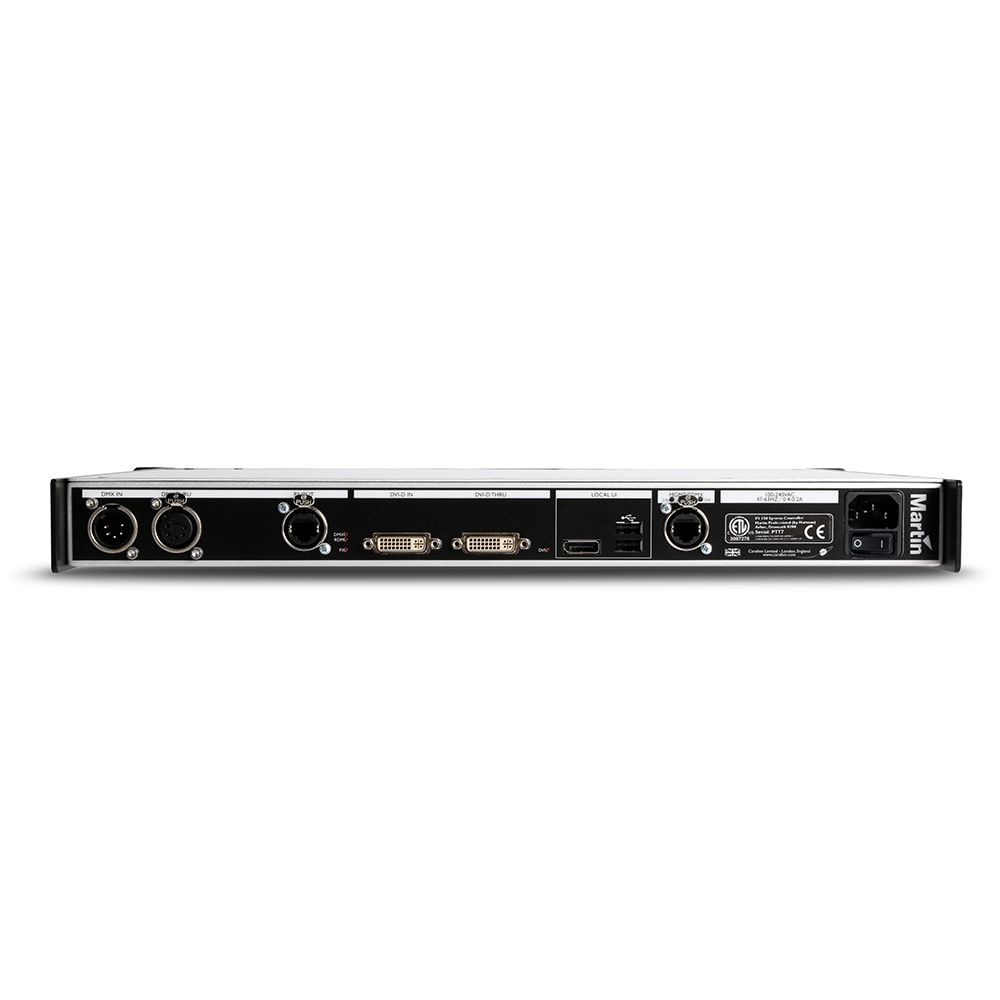

Input flexibility spans DVI video input, up to 128 universes of Art-Net or sACN, and proprietary Martin P3 over Gigabit Ethernet (100m device-to-device range), plus 4 × USB 2.0 ports for peripherals and file transfer. The controller supports 2,000 fixtures (expandable) and enables real-time cross-fade or toggle between video-mapping and DMX pixel-mapping control, with all connected products reporting status back for centralized monitoring.
Key Features
- Video input up to Full HD (1920×1080) via DVI-D
- Frame rates up to 60fps, progressive scan only
- 8-bit RGB 4:4:4 colour sampling with 16-bit per-channel processing (48 bits per pixel)
- System latency: 2 frames
- Controller pixel processing capacity: 520,000 pixels (expandable)
- Controller fixture capacity: 2,000 fixtures (expandable)
- Up to 128 universes of Art-Net or sACN input
- Proprietary Martin P3 over Gigabit Ethernet (up to 100m between devices)
- 4 × USB 2.0 ports for keyboard, mouse, and peripherals
- Built-in GUI with real-time visualization and easy setup wizards
- Showfiles compatible across the entire P3 System Controller family
- Heat dissipation: 685 BTU/hr; includes EU, US, and UK power cables
The P3-150 consolidates video mapping, DMX control, and fixture management into one intuitive platform, delivering professional results This running a single LED wall or a sprawling architectural installation.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin P3-150 is a compact LED video controller that maps Full HD video content to pixel-mapped lighting rigs and DMX-controlled fixtures in real time, with minimal latency and intuitive on-screen visualization. It's built for live performers, touring productions, and venue technicians who need to sync video and lighting without steep learning curves—whether running a single LED backdrop or a complex multi-zone installation. Choose it for rock-solid reliability, flexible input options (Art-Net, sACN, proprietary P3 Ethernet), and the ability to manage up to 2,000 fixtures from one ergonomic control surface.
Frequently Asked Questions
What video formats and inputs does the P3-150 accept?
The controller accepts Full HD video input (1920×1080) at up to 60fps via DVI-D connector, with 8-bit RGB 4:4:4 color sampling and 16-bit per-channel processing depth for high color fidelity.
How many fixtures and pixels can the P3-150 control?
The standard configuration handles 520,000 pixels and 2,000 fixtures, both expandable. It supports up to 128 universes of Art-Net or sACN, plus proprietary Martin P3 over Gigabit Ethernet at ranges up to 100m between devices.
What is the video-to-lighting sync latency?
System latency is 2 frames, keeping video content and pixel/DMX output tightly synchronized for seamless playback and live switching.
What connectivity options are included?
The P3-150 offers DVI video input, up to 128 Art-Net or sACN universes, proprietary Martin P3 Ethernet, and 4 USB 2.0 ports for keyboard, mouse, and peripherals. All connected fixtures report status back for centralized monitoring.
Is the interface difficult to learn?
The P3-150 includes a built-in GUI with real-time visualization and setup wizards designed for operators at any experience level, making complex video mapping accessible without steep training.
