Martin P3 PowerPort 500 IP Install
Description

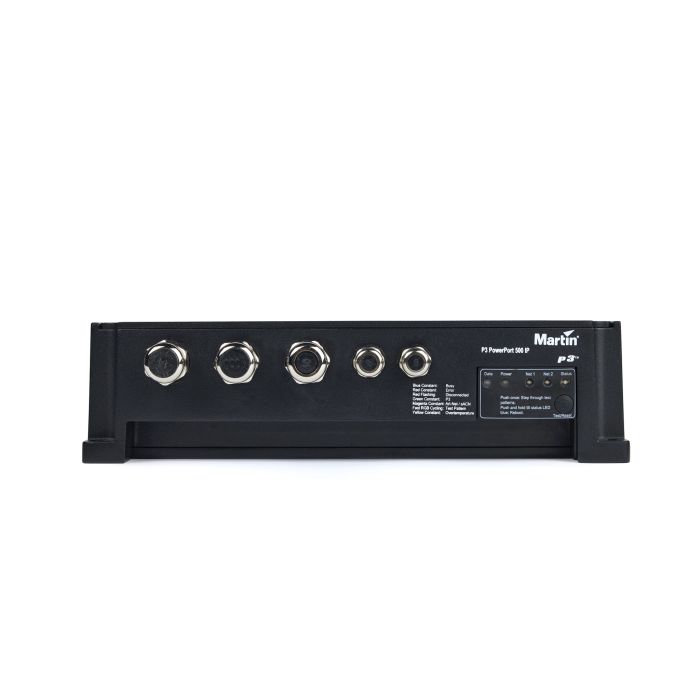

Martin P3 PowerPort 500 IP Install
The Martin P3 PowerPort 500 IP Install is a professional-grade network distribution node engineered for outdoor lighting control installations. This rugged unit delivers reliable Art-Net and sACN protocol conversion in environments where weather resistance and network redundancy are non-negotiable.
Network Architecture & Protocol Support
This node supports Art-Net 1, 2, 3, and 4 compliance including RDM, alongside sACN and Martin's proprietary P3 control protocol. Triple Ethernet transceiver configuration—100/1000Mbit IN and THRU ports, 100Mbit OUT—enables flexible daisy-chaining and network topology options without single points of failure.
Environmental Durability & Power Management
IP66 rating certifies this unit for permanent outdoor installation, handling spray and dust exposure across temperature extremes. The 100-277V AC auto-ranging power supply with dual M20×1.5 cable glands accepts standard industrial connectors; typical heat dissipation runs 1705 BTU/hr under full load with connected fixtures.
Key Features
- Art-Net 1, 2, 3, and 4 compliance with RDM support
- sACN and Martin P3 protocol compatibility
- 100-277V AC nominal input, 50/60 Hz with electronic switch mode power supply
- Ethernet IN: 100/1000Mbit; Ethernet THRU: 100/1000Mbit; Ethernet OUT: 100Mbit
- IP66 environmental rating for permanent outdoor use
- 2x M20×1.5 power cable glands (8-13mm); 2x M12×1.5 Ethernet cable glands (5-8mm); 1x M20×1.5 DC/network output gland (6.5-10.5mm)
- Status indication: 1x Power Out (Green), 1x Ethernet Out (Amber), 2x Ethernet In/Thru (Green + Amber), 1x Device Status (RGB)
- 1705 BTU/hr typical heat dissipation including connected fixtures
Designed for production crews and venue technicians managing outdoor lighting rigs, the P3 PowerPort 500 IP locks in rock-solid network stability through rain, dust, and temperature swings. Industrial-grade weather sealing paired with enterprise protocol flexibility keeps your outdoor rig running without dropped frames or sync issues—the backbone of reliable production lighting on any tour or permanent installation.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin P3 PowerPort 500 IP Install is a professional network distribution node that converts Art-Net, sACN, and proprietary P3 protocols for outdoor lighting control on tours and live events. Built to IP66 spec with 100–277V auto-ranging power and triple Ethernet transceivers, it eliminates single points of failure in complex touring rigs and permanent outdoor installations. Choose this if your live sound and lighting system demands bulletproof network redundancy, all-weather durability, and seamless protocol compatibility across multiple control standards.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Studio Sessions
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What protocols does the P3 PowerPort 500 IP support?
It supports Art-Net 1, 2, 3, and 4 with RDM, sACN, and Martin's proprietary P3 control protocol. Triple Ethernet transceivers (100/1000Mbit IN and THRU, 100Mbit OUT) allow flexible daisy-chaining and network redundancy without single points of failure.
Is this unit suitable for permanent outdoor installation?
Yes. The IP66 environmental rating certifies it for permanent outdoor use, handling spray and dust exposure across temperature extremes. Power input ranges 100–277V AC, 50/60 Hz with dual M20×1.5 cable glands for standard industrial connectors.
What is the power and heat output?
The unit features a 100–277V AC auto-ranging electronic switch mode power supply. Typical heat dissipation runs 1705 BTU/hr under full load with connected fixtures.
What cable connectors does it use?
The P3 PowerPort 500 IP includes 2x M20×1.5 power cable glands (8–13mm), 2x M12×1.5 Ethernet cable glands (5–8mm), and 1x M20×1.5 DC/network output gland (6.5–10.5mm) for flexible field installation.
