What three signals does this cable carry in one connector?

The PDE BreakIn Cable combines AC power (via powerCON TRUE1 TOP), DMX control (via XLR 5-pin Male TOP), and Ethernet data (via etherCON TOP) into a single proprietary PDE hybrid connector, eliminating the need for three separate cables.

Is this cable suitable for outdoor use?

Yes. The cable is rated IP65 for weather resistance, built with durable PVC housing, and operates reliably across −15°C to 75°C (5°F to 167°F), making it suitable for outdoor venues and touring environments.

Can I plug or unplug this cable while the system is powered on?

Yes. All connectors feature hot-plugging compatibility, so you can safely connect and disconnect without powering down your lighting console or fixtures.

What length is this cable and how much does it weigh?

The cable is 19.7 inches long and weighs 0.52 lbs, making it practical for fixture-to-console runs and portable enough for frequent touring setups.

Which fixtures is this cable designed for?

This cable is designed specifically for the Martin VDO Atomic fixture family and terminates in the proprietary PDE hybrid connector required by those fixtures.

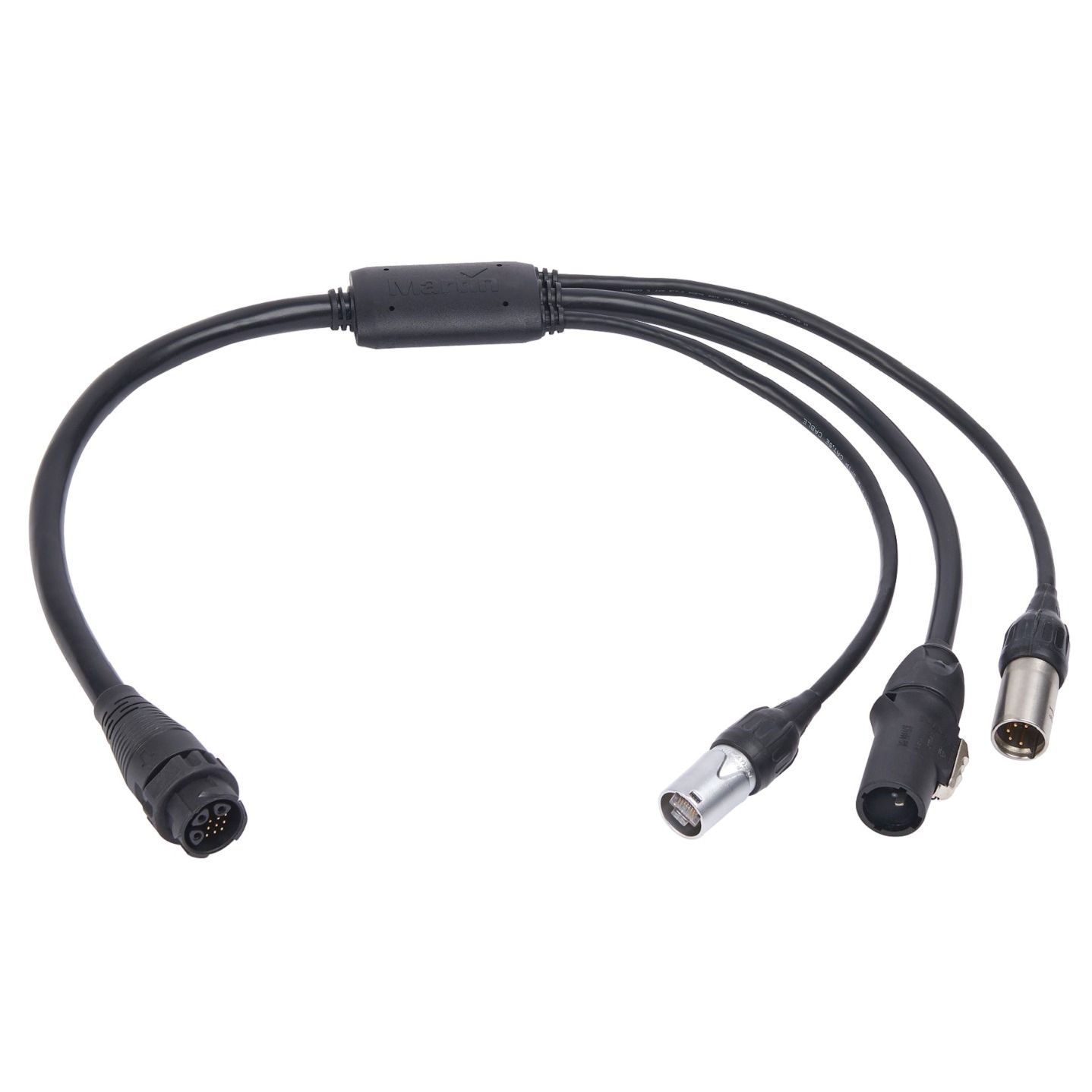

Martin PDE BreakIn Cable

The Martin PDE BreakIn Cable consolidates power, DMX, and Ethernet signals into a single unified connector system, eliminating cable clutter on complex lighting rigs. Designed for the Martin VDO Atomic fixture family, this cable delivers professional-grade connectivity with full IP65 weather resistance for reliable outdoor performance.

Connector Design & Durability

All connections feature Neutrik professional-grade connectors with integrated IP65 protection—powerCON TRUE1 TOP for AC input, etherCON TOP for network data, and XLR 5-pin Male TOP for DMX control, terminating in the proprietary PDE hybrid connector. Hot-plugging compatibility across all inputs ensures seamless integration without powering down your system.

Environmental Specifications & Practical Deployment

Built with durable PVC housing and rated for outdoor environments, this cable operates reliably across a −15°C to 75°C temperature range and meets RoHS and REACH compliance standards. At 19.7 inches long and 0.52 lbs, the cable offers practical length for fixture-to-console runs while remaining lightweight enough for frequent touring setups.

Key Features

Unified PDE hybrid connector system for Power, DMX, and Ethernet integration
Neutrik powerCON TRUE1 TOP AC power input with IP65 rating
Neutrik etherCON TOP Ethernet input with IP65 rating
Neutrik XLR 5-pin Male TOP DMX input with IP65 rating
PDE hybrid output connector with IP65 protection
Hot-plugging compatible across all connection types
IP65 rated for outdoor use and wet environments
Operating temperature range: −15°C to 75°C (5°F to 167°F)
PVC housing construction for durability and flexibility
Cable length: 19.7 inches
Weight: 0.52 lbs for portable applications
RoHS and REACH compliant

The Martin PDE BreakIn Cable streamlines complex lighting installations by consolidating three critical signal paths into one robust, weather-resistant connection.
