What fixtures does this power supply work with?

The Martin RUSH CS Series Power Supply is designed specifically for Martin lighting fixtures that accept 36 V DC input via the included 6-pin custom connector. Verify your fixture model supports 36 V DC before purchase.

Can I use this internationally without a converter?

Yes. The auto-ranging switch-mode input accepts 100–240 V, 50/60 Hz mains power without manual switching or external converters, making it fully ready for touring and international venues.

What's included in the box?

The supply includes two 1.5 m input power cables: one with an IEC C13 to NEMA 5-15P connector (US standard) and one with IEC C13 to bare ends (universal). Output connects to fixtures via the 6-pin custom connector.

Will this unit run hot in a tight rack or outdoor venue?

No. Convection cooling keeps the unit's maximum surface temperature at 55 °C and allows reliable operation across −30 to +40 °C ambient conditions, so it handles tight racks and extreme outdoor environments without thermal throttling.

How much power can this supply deliver?

The Martin RUSH CS Series outputs 36 V DC at a maximum 12 A, delivering up to 485 W of power to connected fixtures.

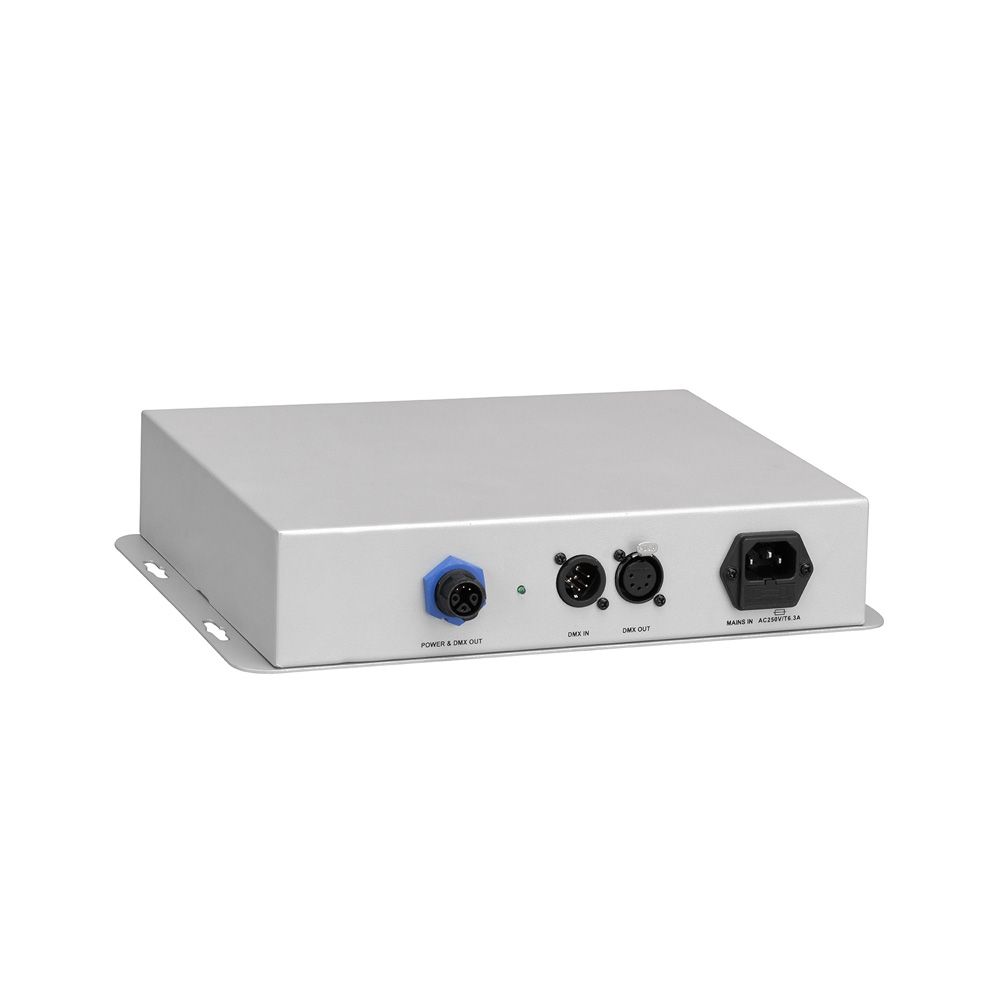

Martin RUSH CS Series Power Supply

The Martin RUSH CS Series Power Supply is a compact, convection-cooled unit engineered to deliver stable 36 V DC power to Martin lighting fixtures on tour and in permanent installations. Its auto-ranging input accepts global voltage standards without manual switching, and the low-profile chassis fits seamlessly into touring racks or floor setups while maintaining thermal efficiency across demanding ambient conditions.

Power Delivery & Electrical Performance

This supply outputs a maximum of 12 A at 36 V DC, delivering up to 485 W of power to connected fixtures via a 6-pin custom connector. The auto-ranging switch-mode design accepts input from 100–240 V, 50/60 Hz, eliminating the need for voltage converters or manual configuration when taking rigs across international borders and venues.

Build Quality & Operating Range

The unit measures 302 × 195 × 58 mm and weighs 4.2 kg, making it road-ready for touring setups while remaining stable on standard 19-inch racks. Convection cooling allows operation across a wide ambient range of −30 to +40 °C, with a maximum surface temperature of 55 °C, and it meets EN60950-1 and UL60950-1 safety standards plus RoHS and REACH compliance.

Key Features

Auto-ranging switch-mode input: 100–240 V, 50/60 Hz
DC output: 36 V at maximum 12 A
Maximum power consumption: 485 W
6-pin custom connector for power and data output to fixtures
Included power cables: IEC C13 female to NEMA 5-15P (US) and IEC C13 to bare ends (universal)
Cable length: 1.5 m on both input connectors
Dimensions: 302 × 195 × 58 mm (11.9 × 7.7 × 2.3 inches)
Weight: 4.2 kg (9.3 lbs.)
Convection cooling with 55 °C maximum surface temperature
Operating ambient range: −30 to +40 °C
Mains inlet fuse: T 6.3 A, 250 V
Certifications: EN60950-1, UL60950-1, RoHS, REACH, WEEE, Proposition 65 compliant

The Martin RUSH CS Series Power Supply combines global voltage compatibility, robust safety certification, and compact form factor to provide rock-solid power for professional lighting systems across any venue or touring environment.
