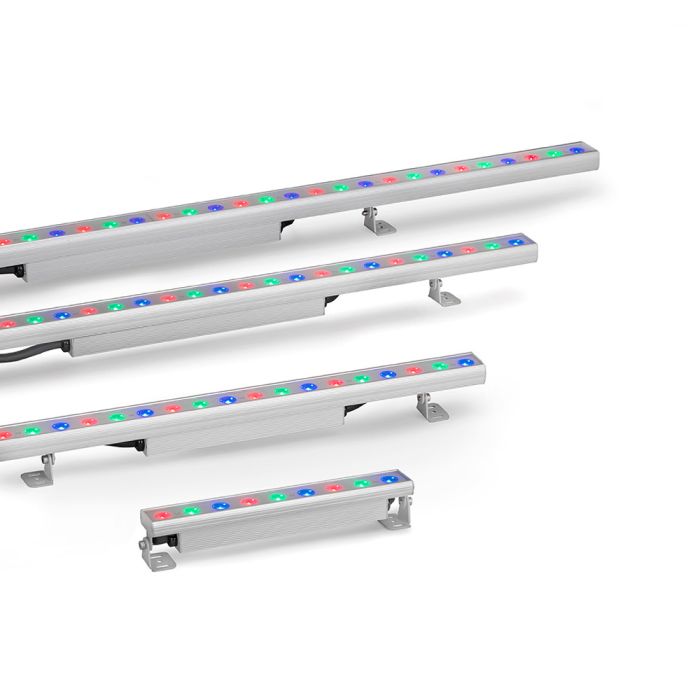

Martin RUSH CS600 Graze RGB Color Mixing Linear Wash

Martin RUSH CS600 Graze RGB Color Mixing Linear Wash

The Martin RUSH CS600 Graze is a compact, high-output LED linear wash fixture built for reliable performance in live venues, installed installations, and permanent installs. At 603 mm in length with a slim 46 mm width, this fixture mounts discreetly along walls, soffits, and ledges while delivering robust illumination across a 18° × 65° beam angle. Installation is straightforward thanks to the hybrid power and data cable system, which consolidates both connections into a single conduit—a real advantage when you're running multiple units across a large venue or stage environment.

Light Output & Color Control

The Cree XP-E2 RGB LEDs produce 926 lumens at full output with electronic dimming from 0–100%, allowing precise intensity adjustment for any application. Color temperature is fully variable from 2800 to 7200K with pre-programmed color temperature correction (CTC) presets, making it simple to match ambient lighting or create dynamic color scenes across performance spaces, hospitality venues, and installations where consistent, reliable color mixing is essential.

Control & Installation Efficiency

Full DMX512/1990 and RDM (ANSI E1.20) compliance enables integration into existing lighting control systems and consoles, with selectable 3 or 6 DMX channels depending on control complexity requirements. Up to 10 meters of fixtures can run from a single Power Supply Unit (sold separately), dramatically reducing installation costs and system complexity for large-scale deployments in touring rigs or permanent venue installations.

Key Features

• Compact graze format: 603 mm length × 46 mm width × 65 mm height with bracket
• Lightweight aluminum construction at 1.4 kg (3.1 lbs.)
• High-output Cree XP-E2 RGB LEDs producing 926 lumens at full intensity
• Beam angle: 18° × 65° optimized for cove and wash applications
• Color temperature range: 2800K to 7200K with pre-programmed CTC presets
• Full electronic dimming control from 0–100% light intensity
• DMX512/1990 and RDM (ANSI E1.20) compliant with 3 or 6 channel modes
• Hybrid power and data cable system reduces installation wiring requirements
• Frosted polycarbonate lens with clear anodized (or optional white) aluminum housing
• IP20 ingress protection rating for indoor use
• LED lifetime rated to 50,000 hours at >70% luminous output
• Supports up to 10 meters of fixtures on a single PSU

The CS600 Graze delivers professional-grade architectural lighting control and output in a dependable, cost-effective package ideal for touring productions, permanent venue installations, and corporate/hospitality spaces.
