What control options does the VC-Grid 60 support?

The tile supports DMX control, Martin P3 control with video mapping, and hybrid mode—you can toggle in real-time between DMX, pixel mapping, and video mapping without powering down. It connects via standard 4-pin Molex connectors for combined power and data.

How many tiles can I daisy-chain together?

You can daisy-chain up to 12 VC-Grid 60 tiles per chain using the integrated 4-pin Molex connectors, enabling large installations with straightforward wiring.

What is the pixel pitch and viewing distance?

The 60 mm pixel pitch is suited for mid-to-close viewing distances in professional environments. With an 8x8 array (64 individually controllable pixels), it works well for stage accents, set pieces, and architectural features rather than large-format displays.

What is the brightness and power consumption?

The VC-Grid 60 delivers 750 nits of calibrated output (2,250 lumens per square meter) with a maximum power draw of just 25 watts at full intensity, minimizing thermal load and electrical infrastructure demands.

Is the tile semi-transparent?

Yes—the unmasked areas offer 49% light transparency, allowing the tile to be integrated into set elements or architectural designs while maintaining sight lines and visual continuity.

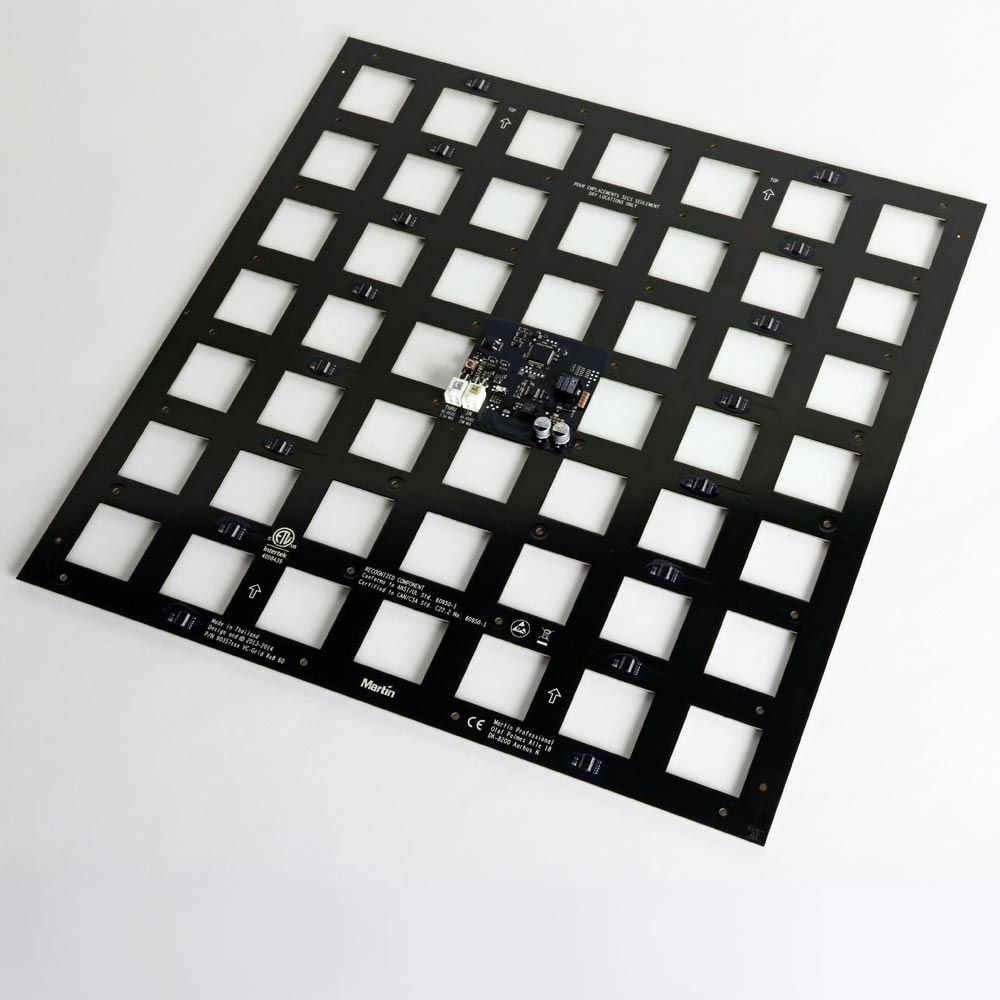

Martin VC-Grid 60 Creative 8x8 LED Video Tile

The VC-Grid 60 is an ultra-lightweight LED video module built for stage reliability and creative flexibility. Its compact 480 mm square footprint and 15 mm profile let you stack and configure multiple tiles to achieve any visual design without breaking sightlines. The 60 mm pixel pitch delivers bright, individually controllable output that holds up under stage lights and reads cleanly from mid-to-close viewing distances in live venues.

Display Performance & Brightness

This module delivers 750 nits of calibrated output with 2,250 lumens per square meter, keeping visuals punchy in lit rooms while staying power-efficient. The 8x8 LED array gives you 64 individually controllable pixels with 16-bit per color processing and pixel-level brightness and color calibration, so every tile matches perfectly and your visual content stays consistent across the entire rig.

Control, Integration & Live Reliability

The VC-Grid 60 runs on both DMX control and Martin P3 control with video mapping, with hybrid operation letting you switch between DMX, pixel mapping, and video mapping modes on the fly during a show. Its integrated 4-pin Molex connectors for combined power and data make daisy-chaining simple—stack up to 12 tiles per chain—while drawing just 25 watts at full intensity, keeping your power infrastructure light and your rig thermally stable.

Key Features

60 mm pixel pitch with 8x8 LED array (64 individually controllable pixels)
750 nits total output in calibrated mode; 2,250 lumens per square meter
16-bit per color image processing (48-bit per pixel) with pixel-level calibration
480 mm × 480 mm × 15 mm compact form factor; 500 g weight
49% light transparency through unmasked areas for semi-transparent applications
Dual control protocols: DMX direct or Martin P3 with video mapping capability
Hybrid control mode: toggle in real-time between DMX, pixel mapping, and video mapping
48 VDC nominal input; maximum 25 W power consumption (all LEDs at full intensity)

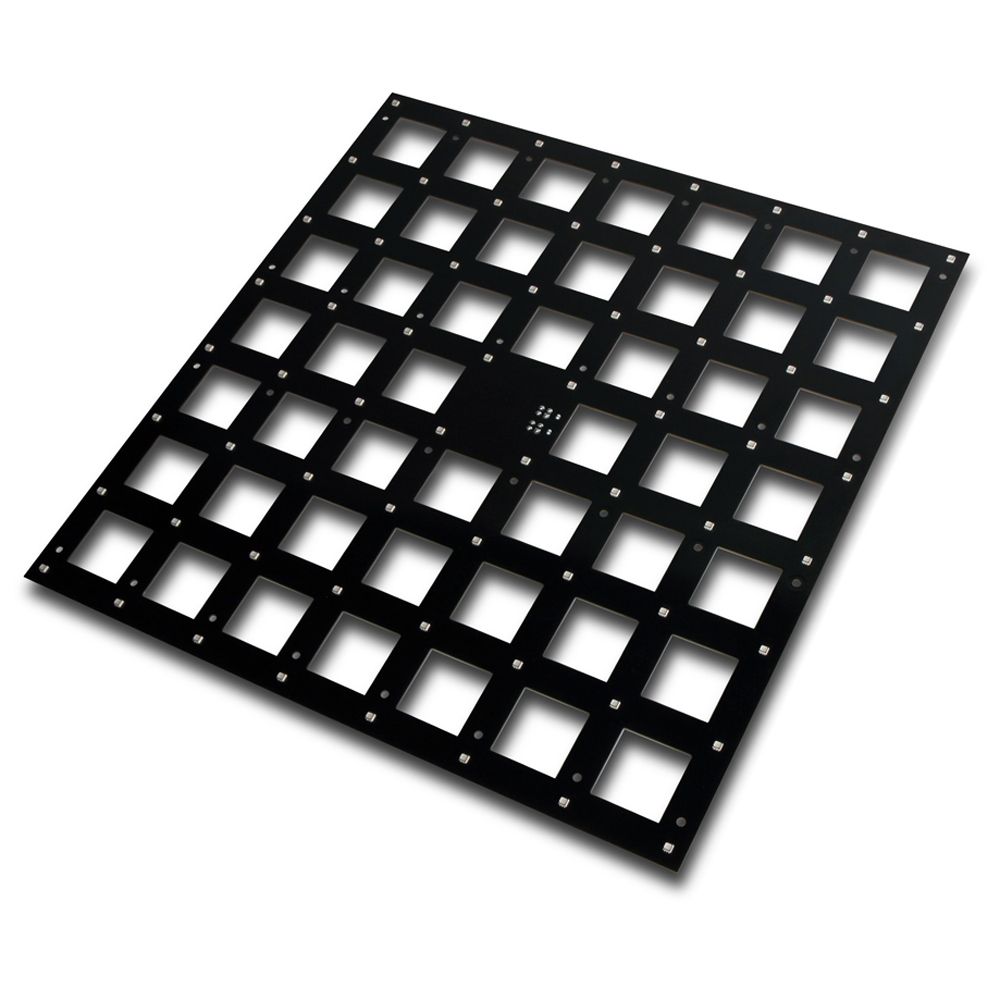

IP20 protection rating; black FR4 circuit board construction
Combined power/data input and thru-put (4-pin Molex); supports daisy-chaining up to 12 units
Compatible with Martin P3™ PowerPort 1500, DMX PowerPort 375, and generic 48 VDC power supplies
Operating temperature range: -20°C to +45°C; peak heat dissipation 105 BTU/hr

The VC-Grid 60 combines stage-ready brightness with flexible control and easy scalability, making it the go-to choice for bands and production crews building custom LED rigs that demand both creative control and tour-tested simplicity.
