Martin VC-Strip 15 Creative 16x1 LED Video Strip
Share
Martin VC-Strip 15 Creative 16x1 LED Video Strip
In stock
- SKU
- 90357450HU
Description
Martin VC-Strip 15 Creative 16x1 LED Video Strip
The VC-Strip 15 Creative 16x1 is a narrow LED video strip engineered for seamless integration into stage designs, set elements, and architectural installations. Its compact 15 mm pixel pitch delivers bright, uniformly calibrated output with pixel-level control, making it suitable for applications demanding precise visual consistency and smooth playback without the latency constraints of traditional DMX systems.
Optical Performance & Brightness
This strip produces 5000 nits of total output in calibrated mode with 225 lumen per meter, ensuring visibility across varied lighting conditions and viewing distances. The 16×1 pixel configuration with full pixel-level brightness and color calibration guarantees optimal image quality and consistent matching between multiple units in extended installations.
Control & Integration
The VC-Strip 15 Creative supports both Martin P3 protocol (via Martin P3 PowerPort) and DMX control, with real-time toggle capability between modes using P3 Switch channels. Dual 4-pin Molex connectors (power/data input and thru) simplify daisy-chaining up to 63 modules on a single run, with flexible 48 VDC power options including Martin P3 PowerPort 1500, DMX PowerPort 375, or generic 48 VDC supplies.
Key Features

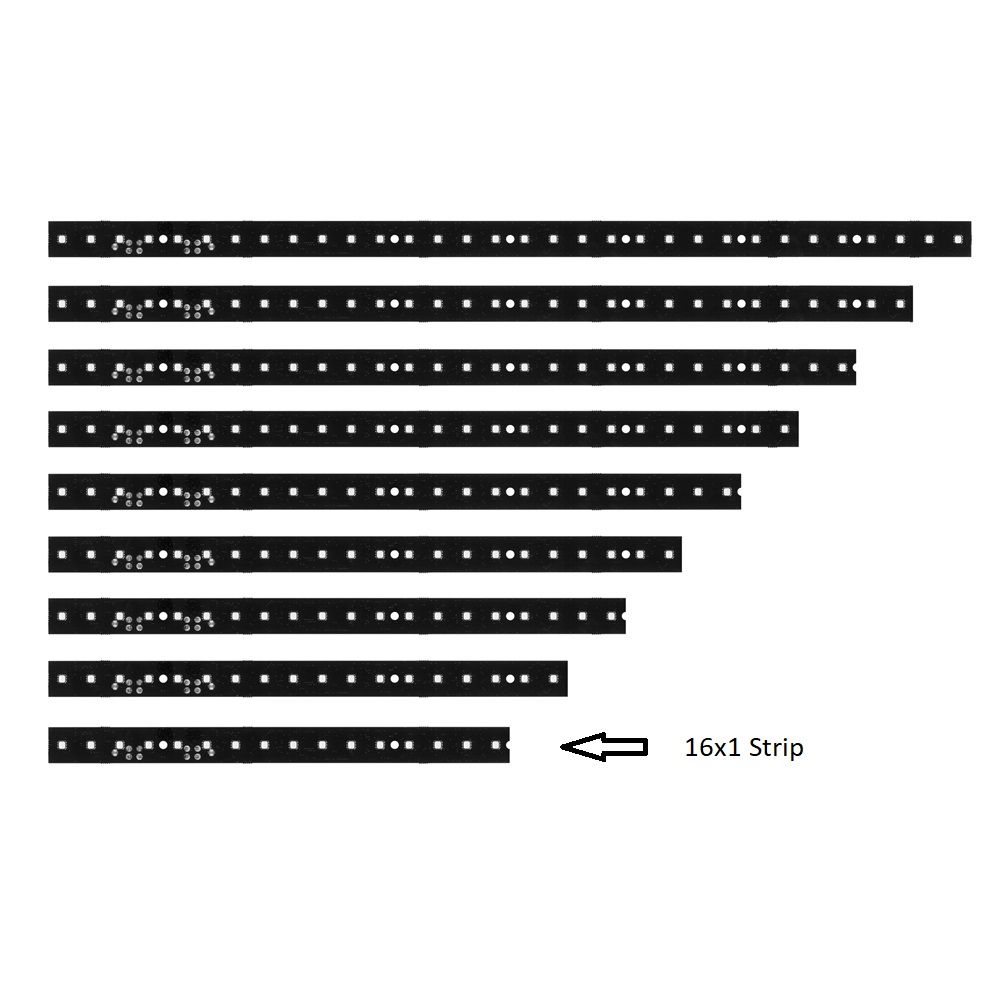

- 16 × 1 individually controllable LED pixels
- 15.00 mm pixel pitch (center-to-center)
- 5000 nits total output (calibrated mode)
- 225 lumen per meter luminous output
- 16-bit per color image processing technology
- Pixel-level brightness and color calibration
- Martin P3 protocol and DMX control support

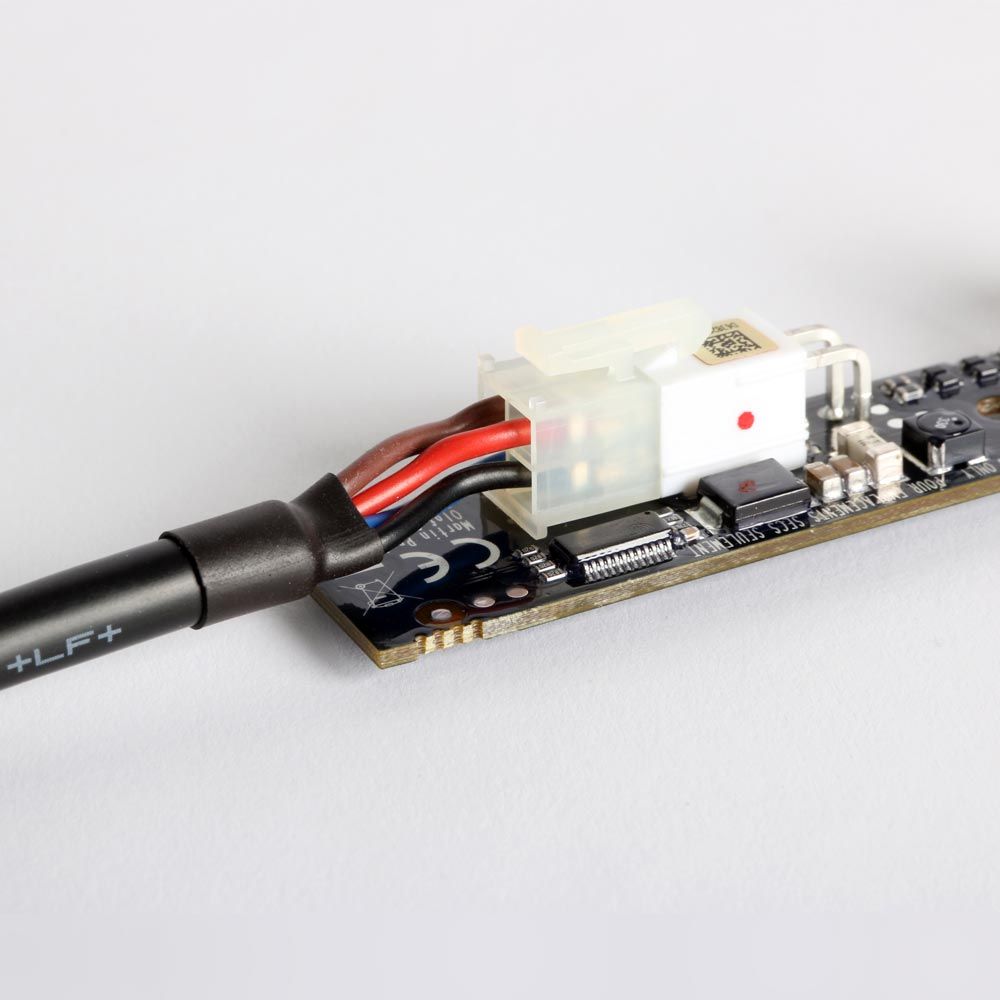

- 4-pin Molex connectors for power/data input and thru
- 48 VDC +/- 4% nominal input voltage
- IP20 protection rating with black FR4 circuit board construction
- Supports daisy-chaining of up to 63 modules
- RoHS compliant; mountable in any orientation
The combination of high brightness, full pixel-level control, and flexible protocol support positions this strip as a reliable choice for video-mapped installations requiring professional-grade color uniformity and responsive playback.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin VC-Strip 15 Creative is a compact 15 mm LED video strip delivering 5000 nits of brightness with pixel-level control, designed for stage backdrops, set elements, and venue installations where precise visual consistency matters. Live sound and stage technicians will appreciate its dual Martin P3 and DMX control modes, daisy-chain capability up to 63 modules, and real-time protocol switching without interrupting playback. Choose this strip for reliable, latency-free video mapping on tour or permanent installations where color uniformity and responsive control are non-negotiable.
Frequently Asked Questions
What control protocols does the VC-Strip 15 Creative support?
The strip supports both Martin P3 protocol (via Martin P3 PowerPort) and DMX control with real-time toggle capability between modes using P3 Switch channels. You can daisy-chain up to 63 modules on a single run using dual 4-pin Molex connectors.
How bright is this LED strip and will it work in varied lighting conditions?
The VC-Strip 15 Creative produces 5000 nits of total output in calibrated mode with 225 lumen per meter, ensuring visibility across varied lighting conditions and viewing distances from stage to audience sightlines.
What power options are available?
The strip accepts 48 VDC +/- 4% nominal input voltage and is compatible with Martin P3 PowerPort 1500, DMX PowerPort 375, or generic 48 VDC supplies, giving you flexibility in power infrastructure on tour or in permanent installations.
How does pixel-level control benefit my installation?
The 16x1 pixel configuration with full pixel-level brightness and color calibration guarantees optimal image quality and consistent color matching between multiple units in extended video-mapped installations without visible seams or color drift.
Can I mount this strip in different orientations?
Yes, the VC-Strip 15 Creative is mountable in any orientation and features an IP20 protection rating with black FR4 circuit board construction, making it adaptable to various stage and architectural layouts.
