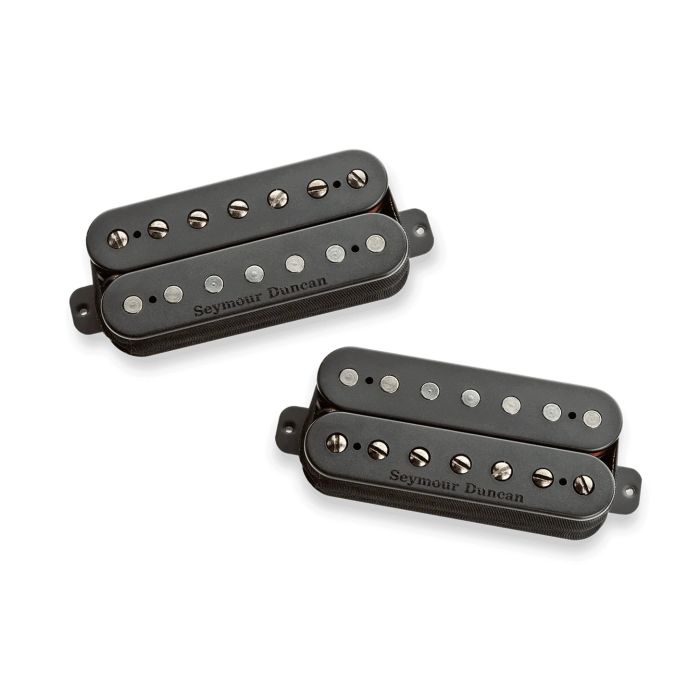

Seymour Duncan 7 Str, Pegasus\Sentient Matte Black Pickup Set

Seymour Duncan 7-String Pegasus/Sentient Matte Black Pickup Set

This 7-string humbucker set delivers the articulation and headroom modern extended-range players demand. The Pegasus bridge and Sentient neck pairing provides balanced output across a wide frequency range, handling aggressive dialing without feedback or mud. Hand-built in Santa Barbara, these pickups integrate seamlessly into existing cavities while maintaining the tonal character serious players expect.

Bridge & Neck Specifications

The Pegasus bridge pickup operates at 14.92 kΩ DC resistance with a 4.44 kHz resonant peak and 5/7/6 (Bass/Mid/Treble) EQ profile, delivering presence and cut for lead work. The Sentient neck pickup sits at 9.2 kΩ DC resistance with a 5.57 kHz resonant peak and 4/3/8 (Bass/Mid/Treble) EQ, offering warmth and clarity for rhythm and extended techniques.

Construction & Wiring

Both pickups use Alnico 5 magnets paired with nickel-silver bottom plates and 4-conductor lead wires for flexible series/parallel/split switching options. Complete wax potting eliminates microphonic feedback, and the set includes passive mount humbucker covers for drop-in installation.

Key Features

• Pegasus bridge pickup: 14.92 kΩ DC resistance, 4.44 kHz resonant peak
• Sentient neck pickup: 9.2 kΩ DC resistance, 5.57 kHz resonant peak
• Alnico 5 magnets on both pickups
• Nickel-silver bottom plates
• Pegasus EQ curve: 5 Bass / 7 Mid / 6 Treble
• Sentient EQ curve: 4 Bass / 3 Mid / 8 Treble
• 4-conductor lead wires for series/parallel/split configurations
• Wax potted for squeal-free performance
• Passive mount humbucker covers included
• Hand built in Santa Barbara, California
• Optimized for 7-string tunings and extended-range instruments
• Matte black finish

On stage or in the studio, this pairing achieves the balance between aggressive output and controlled tone that 7-string players need across drop tunings and high-gain settings—reliable, responsive, and road-tested for modern extended-range rigs.
