Are these pickups suitable for drop-tuned and extended-range playing?

Yes—the Hades Gates Nickel set is specifically designed for metal and hard rock with drop tunings. The matched pair delivers enough output and punch to maintain clarity and articulation even under heavy gain and low tunings.

What do the four-conductor cables do?

Four-conductor wiring allows coil-splitting without rewiring your guitar, giving you access to different tonal variations by splitting the coils. This adds versatility for players who want options beyond the standard high-output voice.

What are the DC resistance specs?

The neck unit is 8.06 kΩ and the bridge is 8.8 kΩ, providing high output suitable for driven amp settings and heavy gain while maintaining note definition across the frequency range.

Will these fit my guitar?

These pickups feature short mounting legs designed for standard modern guitar cavities. If your guitar has typical routing for contemporary instruments, installation should be straightforward; verify your cavity dimensions if you have a vintage or offset design.

How do these compare to other high-output metal pickups?

The Hades Gates Nickel sits alongside models like the EMG 81/85 and DiMarzio Crunchlab. Seymour Duncan emphasizes articulate clarity and balanced gain response rather than pure output volume, so these deliver aggression with refined tonal definition rather than a purely compressed or muddy character.

Do I pay sales tax on this order?

Sales tax is collected only on orders shipped to California; orders shipped to any other US state are not charged sales tax at checkout when you buy direct from our website. At a typical 7% rate that is an estimated $21 less at checkout than the same listed price on a marketplace, which collects sales tax as the facilitator in most states. Buyers remain responsible for any use tax their state applies. Free US shipping and 30-day returns are included.

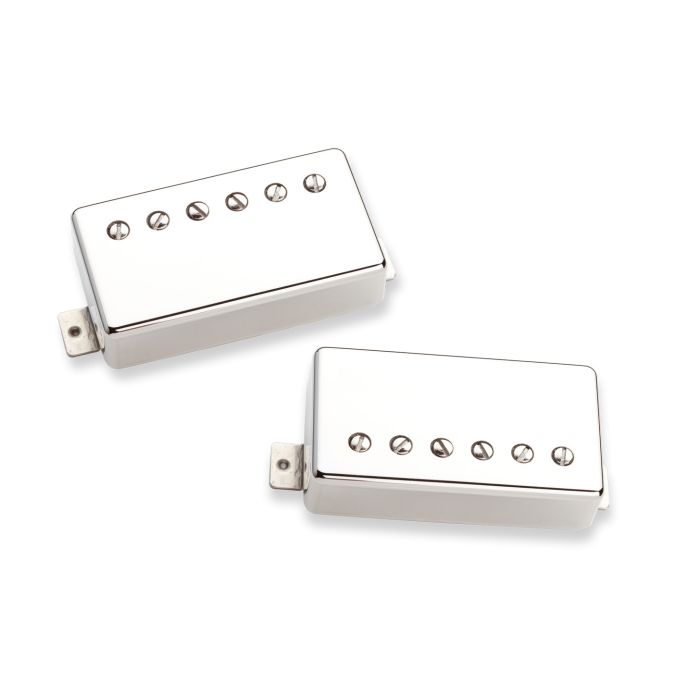

Seymour Duncan Hades Gates Nickel Pickup Set

The Hades Gates Nickel pickups deliver articulate, high-output aggression with a refined edge—aggressive enough for modern metal and hard rock, yet tonally defined rather than muddy. This set pairs matched neck and bridge units with a distinctive nickel cover and gold mesh that looks as intentional as it sounds, built for players who demand both tonal precision and visual distinction on stage and in the studio.

Tone & Output Characteristics

Built around Alnico II magnets, these pickups balance clarity with punch across a wide frequency range. The neck unit measures 8.06 kΩ DC resistance while the bridge sits at 8.8 kΩ, providing enough output for driven amp settings and heavy gain without sacrificing note definition or string articulation—essential for cutting through a live mix without losing harmonic character.

Design & Construction

Manufactured in Santa Barbara, California, each pickup is handmade to exacting standards. The short mounting legs ensure easy installation in most modern guitar cavities, while the four-conductor cable wiring scheme offers flexible coil-splitting options for players seeking tonal variety without rewiring between sets or shows.

Key Features

Alnico II magnet construction
Neck DC Resistance: 8.06 kΩ
Bridge DC Resistance: 8.8 kΩ
Four-conductor wiring
Short mounting legs for standard guitar routing
Nickel cover with gold mesh finish
Handmade in Santa Barbara, California
Matched neck and bridge set
High-output voicing for rock and metal applications
Balanced articulation across gain settings

The Hades Gates Nickel set combines Seymour Duncan's proven high-output DNA with refined tonal character, making it a reliable upgrade for gigging musicians and collectors building modern instruments designed to handle aggressive playing styles and live-stage demands.

Best suited for	Metal, Hard Rock, Progressive, Drop Tunings
Tonal character	High-output, articulate, aggressive, tight punch, refined clarity
Less specialized for	Jazz, Blues, Folk (it will do it; instruments voiced for that style do it more easily)
Skill level	Intermediate / Advanced / Professional
